Valor 1775 Quick Manual

Cement Board

Material Specifi cations
Non-Combustible
Material which will not ignite and burn. Such materials
are those consisting entirely of steel, iron, brick, tile,
concrete, slate, glass or plasters, or any combination
thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750°C shall be considered
non-combustible materials.
Combustible
Materials made of or surfaced with wood, compressed
paper, plant fi bers, plastics, or other material that
can ignite and burn, whether fl ame proofed or not,
or plastered or unplastered shall be considered
combustible materials.

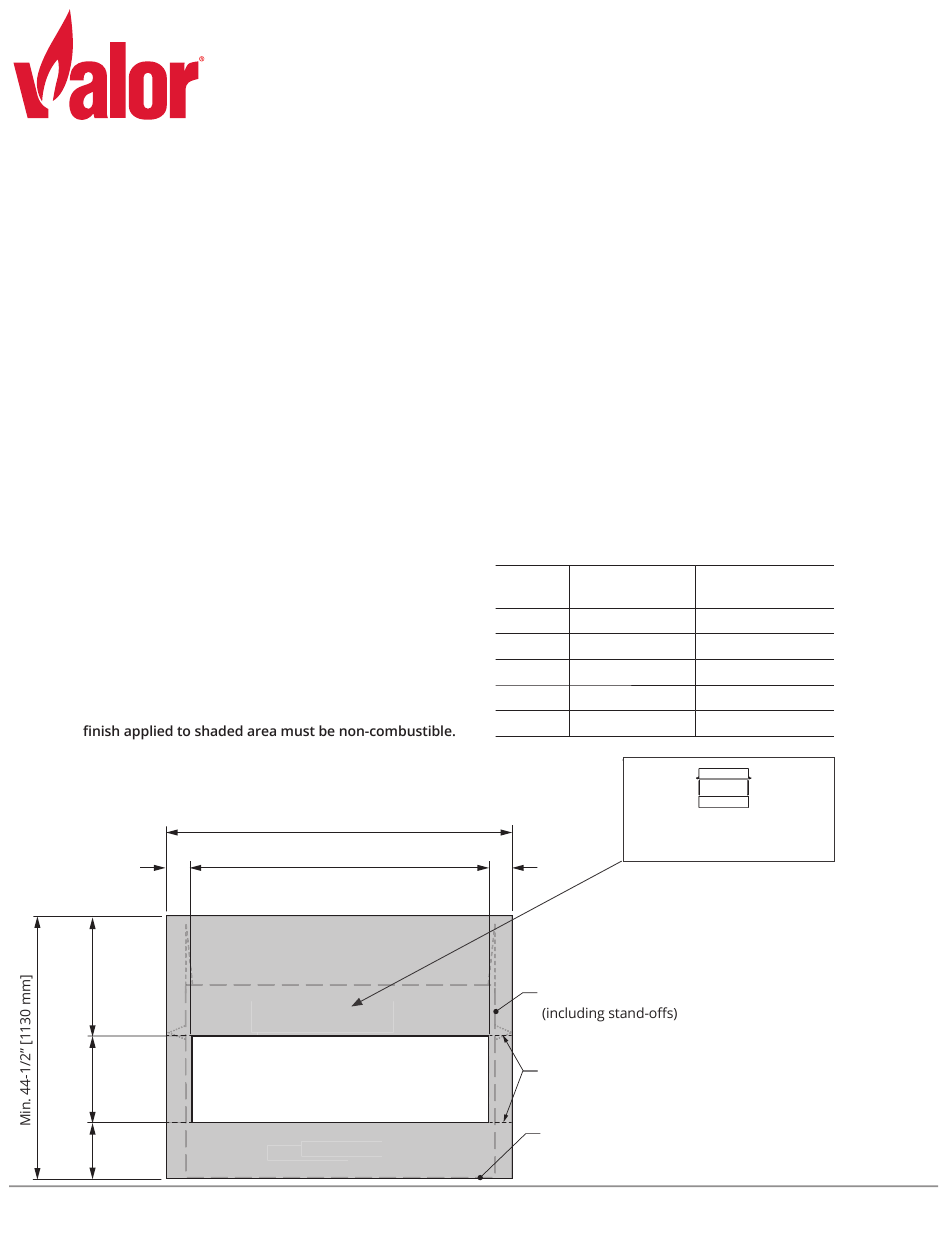

Minimal coverage area of non-combustible cement board.
Any wall
D
A
B
C
Valor Fireplaces • 190—2255 Dollarton Highway • North Vancouver, BC • V7H 3B1
L2 1700K
Min. 60" [1524 mm]
E
NON-COMBUSTIBLE MATERIALS ONLY
NON-COMBUSTIBLE MATERIALS ONLY
READ INSTRUCTIONS
MATÉRIAUX INCOMBUSTIBLES SEULEMENT READ INSTRUCTIONS
MATÉRIAUX INCOMBUSTIBLES SEULEMENT
CONSULTEZ LE GUIDE D'INSTALLATION
CONSULTEZ LE GUIDE D'INSTALLATION
Tel: 604.984.3496 or 1.800.468.2567 • Fax: 604.984.0246 or 1.800.268.0333
www.valorfi replaces.com
Non-Combustible Cement Board
The L2 Linear fi replace requires a 1/2" (13 mm) thick
non-combustible cement board to be used as a wall
surface immediately surrounding the unit's opening—
see diagram for minimum coverage.
Extending the cement board well beyond the minimum
shown will help avoid cracking due to diff erential
expansion of materials.
Pre-drill cement board with oversized holes and do
not over-tighten screws to avoid cracking due to heat
expansion.
Standard gypsum wall board may be used beyond the
perimeter of the cement board.
With 1750 or
1775 trims
inches [mm]
A Min. 20-1/2 [521]
B
14-3/4 [375]
C
Min. 9-1/4 [235]
D Min. 5 [127]
E
Min. 50 [1270]
NON-COMBUSTIBLE MATERIALS ONLY
MATÉRIAUX INCOMBUSTIBLES SEULEMENT
CONSULTEZ LE GUIDE D'INSTALLATION
D
Non-combustible
cement board
required thickness:
1/2" [13 mm]
Linear 1700 outline
Joints preferred at corners
to prevent cracking
Flush with bottom of unit;
add extra cement board
to overlap framing.
December 2019
with 1730CIK kit
Min. 20-1/8 [511]
15-13/16 [401]
Min. 8-9/16 [218]
Min. 4-1/2 [114]
Min. 51-1/16 [1296]
READ INSTRUCTIONS
