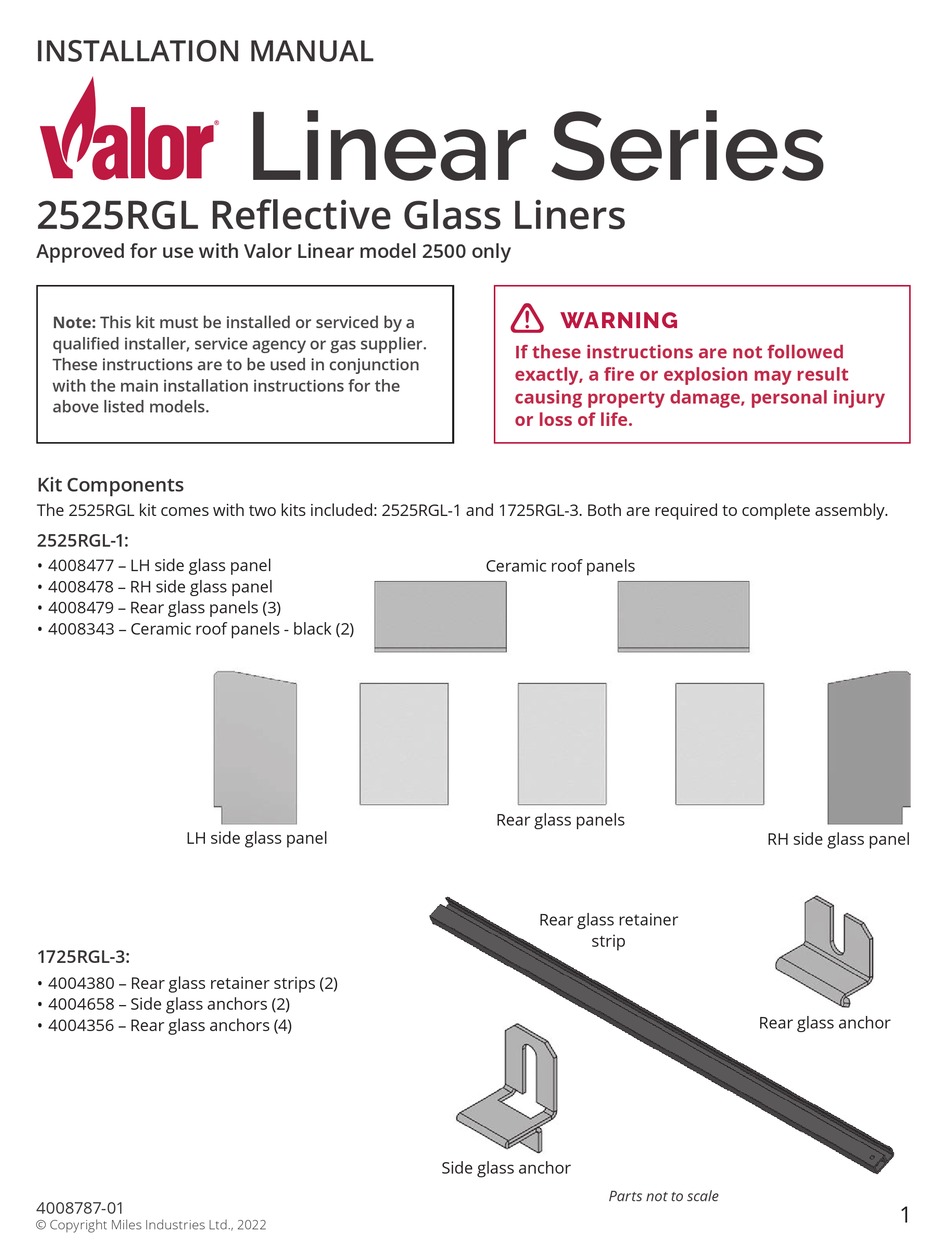

INSTALLATION MANUAL
2525RGL Refl ective Glass Liners
Approved for use with Valor Linear model 2500 only
Note: This kit must be installed or serviced by a
qualifi ed installer, service agency or gas supplier.
These instructions are to be used in conjunction
with the main installation instructions for the
above listed models.
Kit Components
The 2525RGL kit comes with two kits included: 2525RGL-1 and 1725RGL-3. Both are required to complete assembly.
2525RGL-1:
• 4008477 – LH side glass panel
• 4008478 – RH side glass panel
• 4008479 – Rear glass panels (3)
• 4008343 – Ceramic roof panels - black (2)
LH side glass panel
1725RGL-3:
• 4004380 – Rear glass retainer strips (2)
• 4004658 – Side glass anchors (2)
• 4004356 – Rear glass anchors (4)
4008787-01
© Copyright Miles Industries Ltd., 2022
Linear Series
 WARNING
If these instructions are not followed
exactly, a fi re or explosion may result
causing property damage, personal injury
or loss of life.
Ceramic roof panels
Rear glass panels
Rear glass retainer
strip
Side glass anchor
Parts not to scale
RH side glass panel
Rear glass anchor
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Linear Series and is the answer not in the manual?

Questions and answers

Related Manuals for Valor Linear Series

Summary of Contents for Valor Linear Series

  • Page 1 INSTALLATION MANUAL Linear Series 2525RGL Refl ective Glass Liners Approved for use with Valor Linear model 2500 only  WARNING Note: This kit must be installed or serviced by a qualifi ed installer, service agency or gas supplier. If these instructions are not followed These instructions are to be used in conjunction exactly, a fi...

  • Page 2: Installation

    Installation 5. On the rear of the fi rebox, at the top, remove and keep the four screws to install rear panel anchors. Unpack all cartons carefully, with special care for the glass panels and the top ceramic panels. The glass panels are retained in place in the fi rebox by the retainer strips and glass anchors.
  • Page 3 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...

  • Page 4: Guide D'installation

    GUIDE D’INSTALLATION Série Linear Panneaux de verre réfl échissants 2525RGL Pour installation sur les modèles Valor Linear 2500 seulement Note  AVERTISSEMENT Ce kit doit être installé et entretenu par un Si les instructions fournies dans le présent installateur qualifié, une agence de service certi- guide ne sont pas suivies à...
  • Page 5 Installation 5. Sur la paroi arrière dans la boîte de foyer, désserrez quatre vis tel qu’indiqué pour y fi xer les supports Déballez les cartons avec précautions, particulièrement d’ancrage arrières. lorsque vous manipulez les panneaux de verre et de céramique fragiles. Les panneaux de verre sont fi...
  • Page 6 Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tél. 604-984-3496 Téléc. 604-984-0246 www.fr.valorfi replaces.com...
