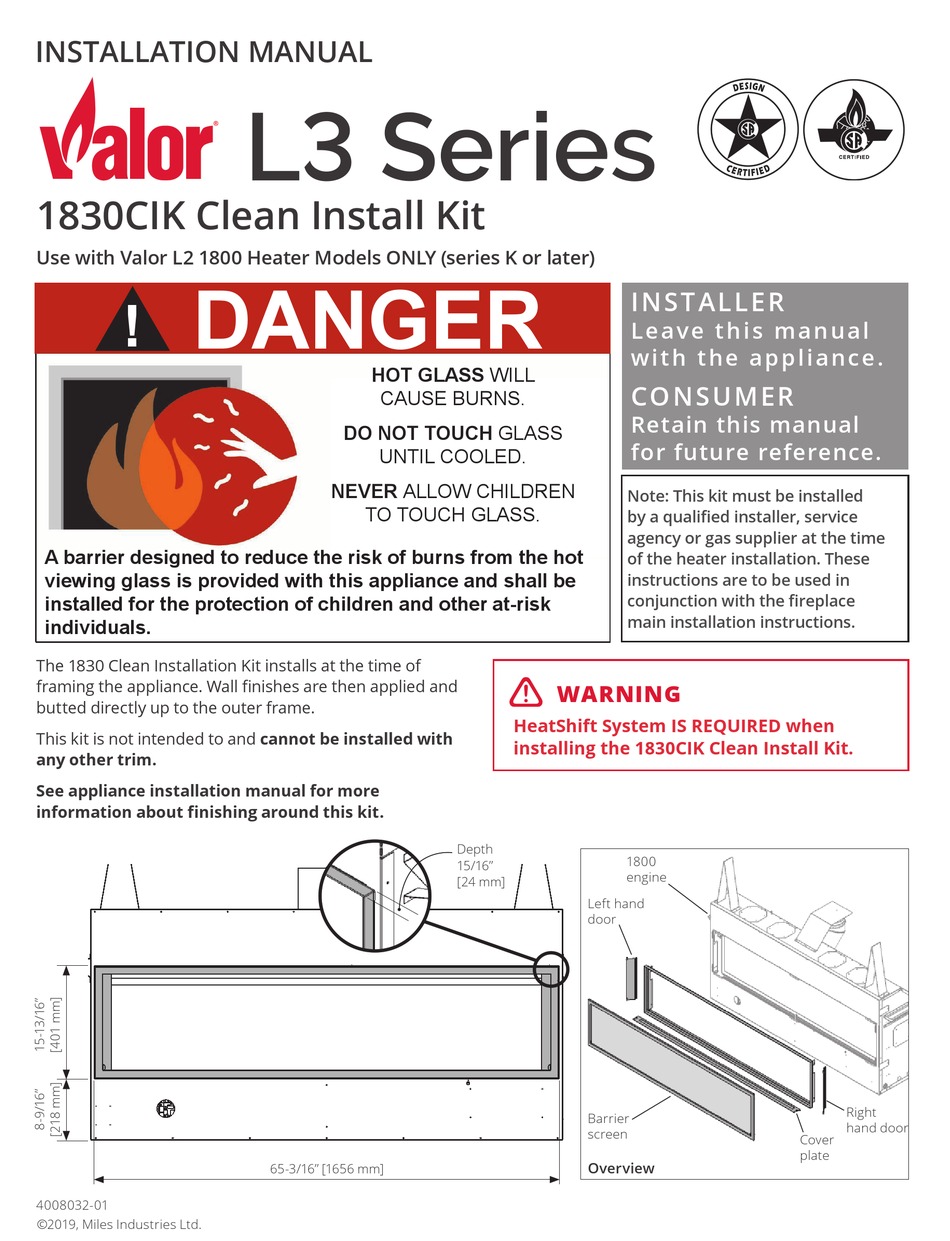

Installation MANUAL
1830CIK Clean Install Kit
Use with Valor L2 1800 Heater Models ONLY (series K or later)
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 1830 Clean Installation Kit installs at the time of
framing the appliance. Wall fi nishes are then applied and
butted directly up to the outer frame.
This kit is not intended to and cannot be installed with
any other trim.
See appliance installation manual for more
information about finishing around this kit.
4008032-01
©2019, Miles Industries Ltd.
L3 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
65-3/16" [1656 mm]
I N S T AL LE R
L e a v e t h i s m a n u a l
w i t h t h e a p p l i a n c e .
C O NS U M E R
Retain this manual
for future reference.
Note: This kit must be installed
by a qualifi ed installer, service
agency or gas supplier at the time
of the heater installation. These
instructions are to be used in
conjunction with the fi replace
main installation instructions.
WARNING
HeatShift System IS REQUIRED when
installing the 1830CIK Clean Install Kit.
Depth
1800
15/16"
engine
[24 mm]
Left hand
door
Barrier
screen

Overview

Right
hand door
Cover
plate
