This appliance is certifi ed for use from 0–4500 feet. For
altitudes above 4500 feet, see local codes.
Kit Contents
1 Pilot injector
1 Burner
1 Main burner elbow injector
1 Set of conversion labels
1 Set of air shutter
Tools Required
• Wrenches, to disconnect gas line
• Phillips (+) screwdriver, to remove burner module
• Small (jewelers size) fl at blade screwdriver, to set
pressure
• Small fl at blade screwdriver, to release pressure tap
on valve
• Nut driver 8 mm or 5/16", to remove burner nuts
• Needle nose pliers, to remove by-pass screw
• Hex (Allen) wrench, 4 mm or 5/32", to remove pilot
injector
• Manometer, to set pressure when regulator is integral
with valve
Specifi cations
Model
Gas
Altitude (Ft.)*
Input Maximum (Btu/h)
Input Minimum (Btu/h)
Manifold Pressure (in w.c.)
Minimum Supply Pressure
(in w.c.)
Maximum Supply Pressure
(in w.c.)
Main Burner Injector Marking
Pilot Injector Marking
Min. Rate By-Pass Screw
4002604-01
©2012, Miles Industries Ltd.
V
OGUE
Gas Conversion Kit
1300NGK/NPK
Use with with Valor Models 1300 Heaters ONLY
Installation Instructions
1300NG
1300LPG
Natural
Propane
0-4,500 feet*
30,000
28,000
6,500
14,500
3.7
10.5
5.0
11.0
10.0
14.0
850
300
51
30
125
125
WARNING
This conversion kit shall be installed by a
qualifi ed service agency in accordance with
the manufacturer's instructions and all appli-
cable codes and requirements of the authority
having jurisdiction. If the information in these
instructions is not followed exactly, a fi re, ex-
plosion or production of carbon monoxide may
result causing property damage, personal in-
jury or loss of life. The qualifi ed service agency
is responsible for the proper installation of this
kit. The installation is not proper and complete
until the operation of the converted appliance
is checked as specifi ed in the manufacturer's
instructions supplied with the kit.
Use this manual in conjunction with the instal-
lation manual supplied with the appliance.

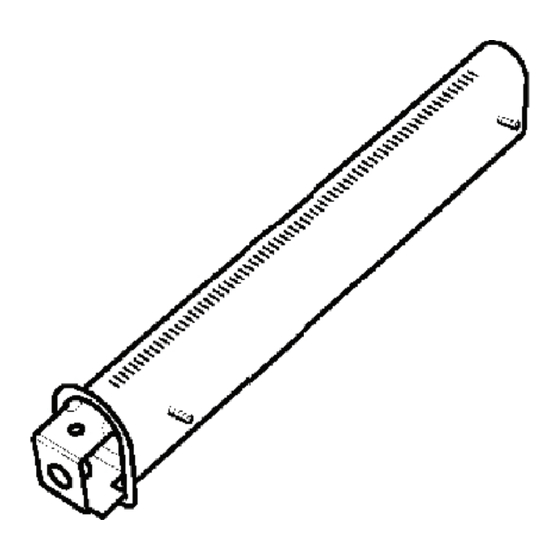

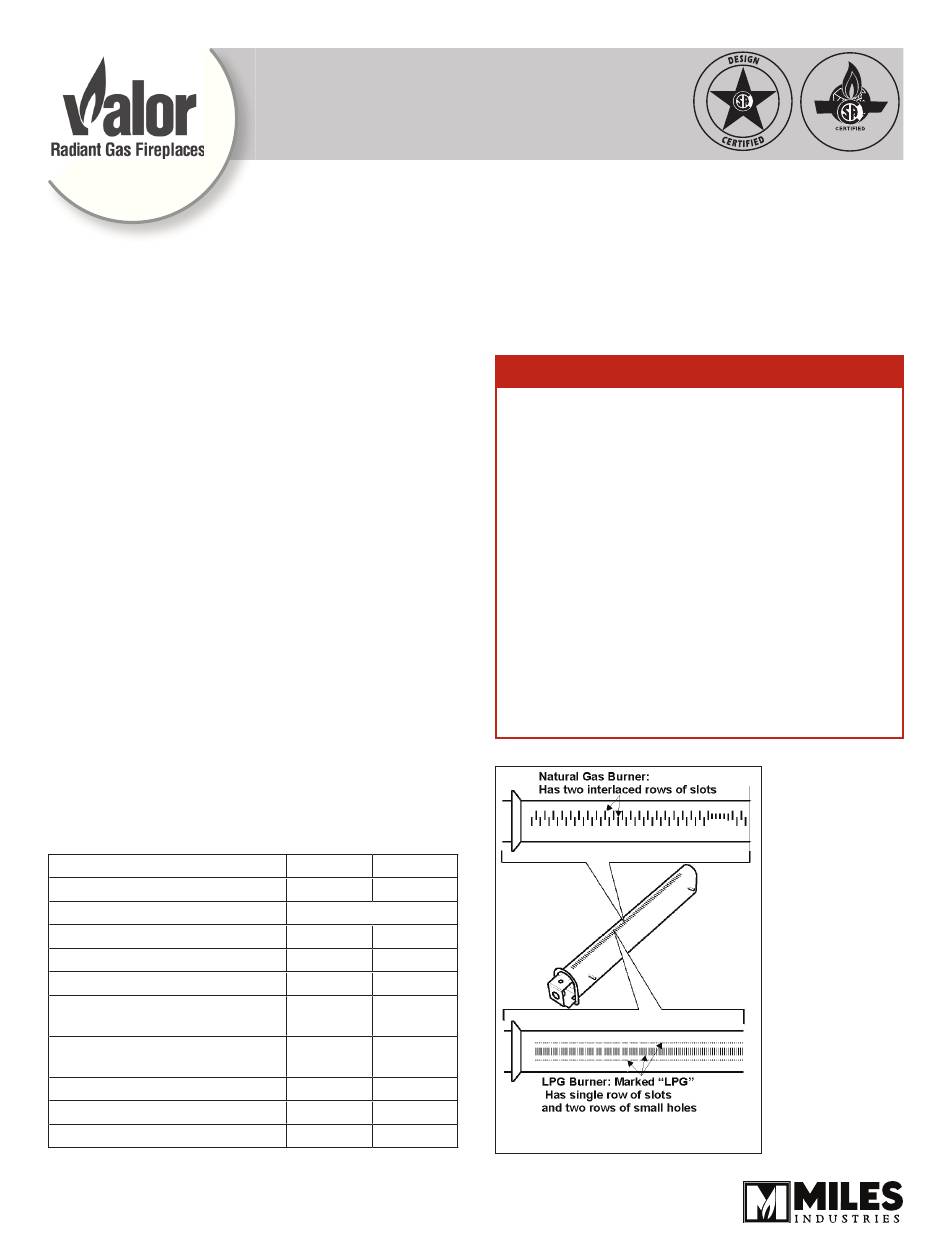

Burner identifi cation
Advertisement
Table of Contents
Related Manuals for Valor VOGUE Series
Summary of Contents for Valor VOGUE Series
- Page 1 OGUE Gas Conversion Kit 1300NGK/NPK Use with with Valor Models 1300 Heaters ONLY Installation Instructions This appliance is certifi ed for use from 0–4500 feet. For WARNING altitudes above 4500 feet, see local codes. This conversion kit shall be installed by a...
- Page 2 General Notes Regarding Conversion 2. Remove the 2 screws securing the burner brackets to the burner tray. The conversion may be done before or after the appliance is installed into the cavity. However, the gas Burner—top view must be connected to set the manifold pressure. Prepare the appliance 1.
- Page 3 Jun 2008 738LPG 739LPG Set and check manifold pressure and 5. Check the aeration and adjust the air shutter if 3000371 3000371 necessary. aeration 6 mm Set the manifold pressure. Aeration Gap Flashback 6 mm AERATION GAP AERATION GAP shield logs: 5 mm 1.
- Page 4 OGUE Kit de conversion de gaz Kit de conversion de gaz 1300NGK/NPK Pour utilisation avec les foyers Valor 1300 SEULEMENT Directives d’installation Cet appareil est homologué pour utilisation de 0 à 4 AVERTISSEMENT 500 pieds. Pour altitudes au-dessus de 4 500 pieds, Ce kit de conversion doit être installé...
- Page 5 À propos de la conversion 2. Enlevez les 2 vis retenant les supports du brûleur à la plaque. La conversion d’un gaz à l’autre peut être faite avant ou après l’installation de l’appareil dans la cavité. Dessus du Cependant, le gaz doit être branché pour régler la brûleur pression d’admission.
- Page 6 Jun 2008 738LPG 739LPG Réglez et vérifiez la pression d’admission et 5. Vérifiez l’aération et ajustez l’obturateur d’air si 3000371 3000371 nécessaire. l’aération 6 mm Espace d’aération 6 mm Écran de retour Réglez la pression d’admission. AERATION GAP bûches : 5 mm AERATION GAP de flammes pierres : ouvert...
