INSTALLATION MANUAL
1040BPB-RC Four-sided Backing Plate Kit
CSA approved for use with Valor H3 1000 Heater Models
(in Retrofi t applications)
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
The 1040BPB-RC backing plate is intended to be used on Valor heaters models H3 1000 in retrofi t applications. Refer
to installation manual supplied with appliance for clearances to combustible and other specifi cations when using the
1040BPB-RC "Retrofi t Application" Backing Plate.
The 1040BPB-RC needs to be fi tted with with a Four-Sided Front 1041FSV or 1041FSCB to complete the installation.
Note: Intended to install into existing cavity and overlap existing wall finish. Backing plate mounts in fixed
position and does not adjust for additional finish material.
Backing plate 13/16" [21 mm] below
bottom of appliance
4007609-01
© Copyright Miles Industries Ltd., 2019
H3 Series
40" (1016 mm)
Left hand door
Left hand door
H3 1000
Backing plate
Backing plate
assembly
assembly
Removeable
Removable panel
bottom plate

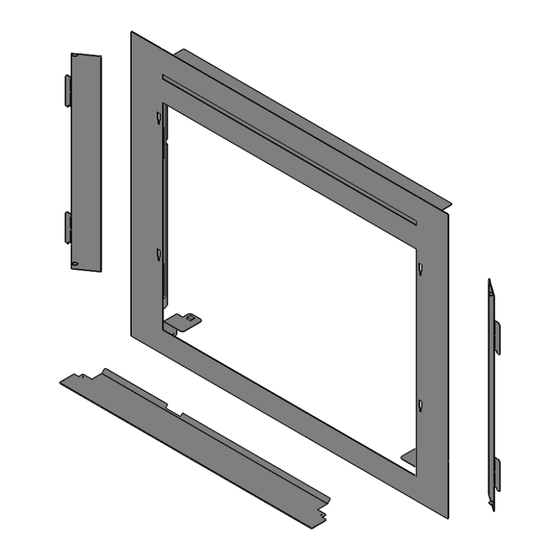

Overview
Right hand
Right hand
door
door
Advertisement
Related Manuals for Valor H3 Series
Summary of Contents for Valor H3 Series
- Page 1 CONSUMER: Retain this manual for future reference. The 1040BPB-RC backing plate is intended to be used on Valor heaters models H3 1000 in retrofi t applications. Refer to installation manual supplied with appliance for clearances to combustible and other specifi cations when using the 1040BPB-RC “Retrofi...
-
Page 2: Installation
Installation 3. Insert the left hand door. 1. On completion of appliance installation, insert the a. Insert the door tabs straight into the top and backing plate assembly into the liner box, and at- bottom slots behind the front panel of the plate. tach it using 4 screws into the left and right sides. -
Page 3: Repair Parts List
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com... -
Page 4: Directives D'installation
CONSOMMATEUR : Conservez cette notice pour consultation ultérieure. La Plaque de fi nition 1040BPB-RC est conçue pour être installée sur les foyers Valor 1000 H3 installés en remplacement d’un foyer existant dans un encastrement combustible. Consultez le guide d’installation fourni avec l’appareil pour connaître les dégagements aux matériaux combustibles et autres spécifi... - Page 5 Installation 3. Installez la porte gauche. 1. Une fois le foyer installé, insérez la plaque de fi nition a. Insérez les onglets de la porte dans les fentes à l’intérieur de la caisse du foyer et fi xez-la à l’aide situées juste derrière la façade de la plaque.
- Page 6 Pièces Description Pièce n Plaque de finition 4007363AZ Porte droite 4007169AZ Porte gauche 4007164AZ Panneau amovible 4007362AZ Vis à métaux (4) 100A757 Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd.
