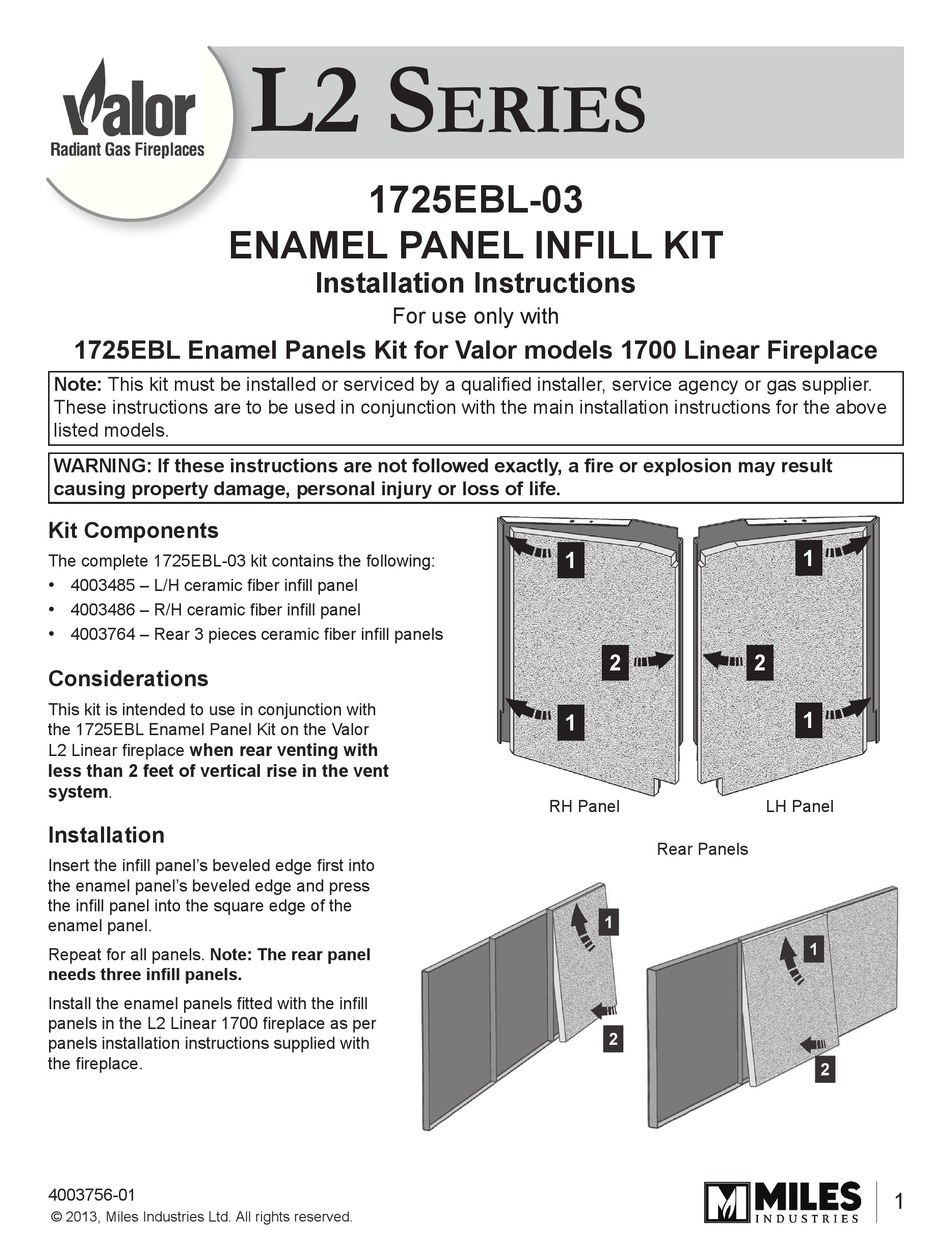

Valor 1725EBL-03 Installation Instructions

ENAMEL PANEL INFILL KIT
1725EBL Enamel Panels Kit for Valor models 1700 Linear Fireplace
Note: This kit must be installed or serviced by a qualified installer, service agency or gas supplier.
These instructions are to be used in conjunction with the main installation instructions for the above
listed models.
WARNING: If these instructions are not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
Kit Components
The complete 1725EBL-03 kit contains the following:
•

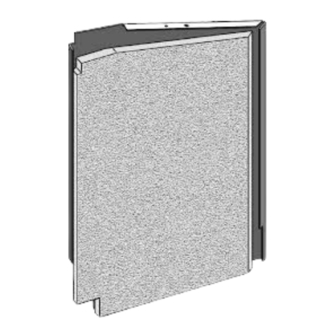

4003485 – L/H ceramic fiber infill panel
•
4003486 – R/H ceramic fiber infill panel
•
4003764 – Rear 3 pieces ceramic fiber infill panels
Considerations
This kit is intended to use in conjunction with
the 1725EBL Enamel Panel Kit on the Valor
L2 Linear fireplace when rear venting with
less than 2 feet of vertical rise in the vent
system .
Installation
Insert the infill panel's beveled edge first into
the enamel panel's beveled edge and press
the infill panel into the square edge of the
enamel panel.
Repeat for all panels. Note: The rear panel
needs three infill panels.
Install the enamel panels fitted with the infill
panels in the L2 Linear 1700 fireplace as per
panels installation instructions supplied with
the fireplace.
4003756-01
© 2013, Miles Industries Ltd. All rights reserved.
L2 S
1725EBL-03
Installation Instructions
For use only with
erieS
1
2
1
RH Panel
1
2
1
LH Panel
Rear Panels
1
