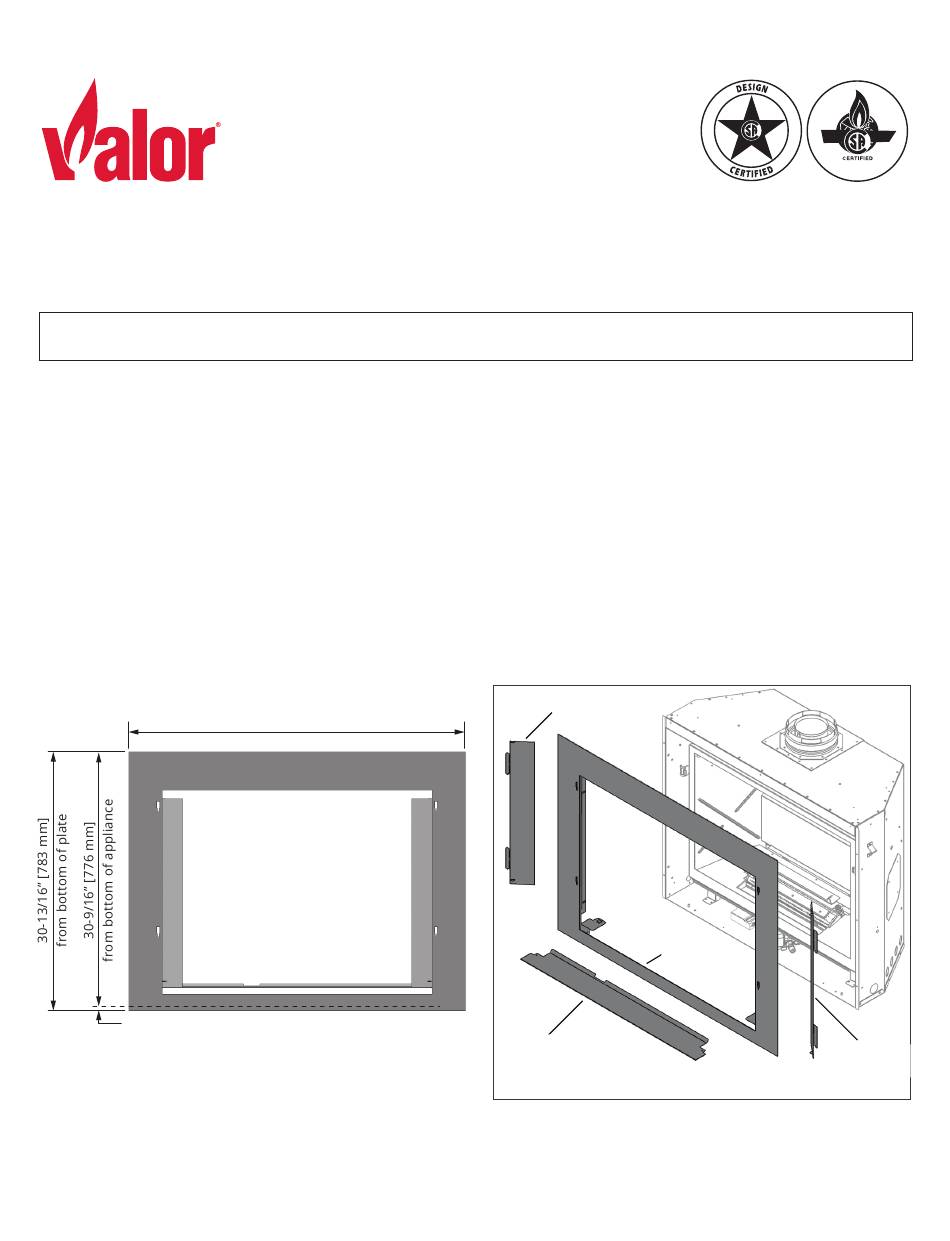

INSTALLATION MANUAL
1040BPB Four-sided Backing Plate Kit
CSA approved for use with Valor H3 1000 Heater Models
in New Construction/Zero Clearance applications
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
The 1040BPB backing plate is intended to be used on Valor heaters models H3 1000 in new construction
applications/zero clearance. Refer to installation manual supplied with appliance for clearances to combustible
and other specifi cations when using the 1040BPB "New Construction" Backing Plate.
The 1040BPB needs to be fi tted with with a Four-Sided Front 1041FSV or 1041FSCB to complete the installation.
Note: When mounting over top of the wall finish, this trim allows for non-combustible material up to
maximum 3/4" (19 mm) thickness installed over top of the required 1/2" (13 mm) cement board. Otherwise,
run non-combustible finish to outer edge of backing plate.
Backing plate 1/4" [7 mm] below bottom of appliance
4007391-01
© Copyright Miles Industries Ltd., 2019
H3 Series
40" [1016 mm]
Left hand door
Left hand door
H3 1000

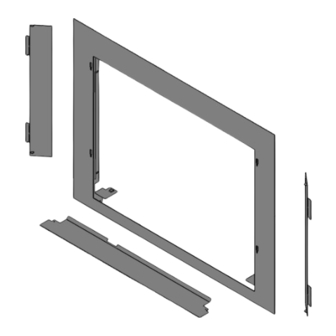

Backing plate
Backing plate
assembly
assembly
Removable
Removeable
bottom plate
bottom plate
Overview
Right hand
Right hand
door
door
1
Advertisement
Related Manuals for Valor H3 Series
Summary of Contents for Valor H3 Series
- Page 1 INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. The 1040BPB backing plate is intended to be used on Valor heaters models H3 1000 in new construction applications/zero clearance. Refer to installation manual supplied with appliance for clearances to combustible and other specifi...
-
Page 2: Installation
Installation 2. Slide the removable bottom plate into the clips in the side panels. 1. On completion of appliance installation and wall fi nish application, insert the backing plate assembly into the liner box, and attach it using 4 screws into the left and right sides. -
Page 3: Repair Parts List
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com... -
Page 4: Directives D'installation
CONSOMMATEUR : Conservez cette notice pour consultation ultérieure. La Plaque de fi nition 1040BPB est conçue pour être installée sur les foyers Valor 1000 H3 installés dans une nouvelle contruction ou à dégagement zéro. Consultez le guide d’installation fourni avec l’appareil pour connaître les dégagements aux matériaux combustibles et autres spécifi... - Page 5 Installation 2. Slide the removable bottom plate into the clips in the side panels. 1. On completion of appliance installation and wall fi nish application, insert the backing plate assembly into the liner box, and attach it using 4 screws into the left and right sides.
- Page 6 Repair Parts List Code Description Part Number Backing plate assembly 4007530AZ RH door assembly 4007620AZ LH door assembly 4007618AZ Removable bottom panel 4007362AZ Sheet metal screws (4) 100A757 Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd.
