Tightrope Media Systems Cablecast Setup Manual page 26

SX2-HD

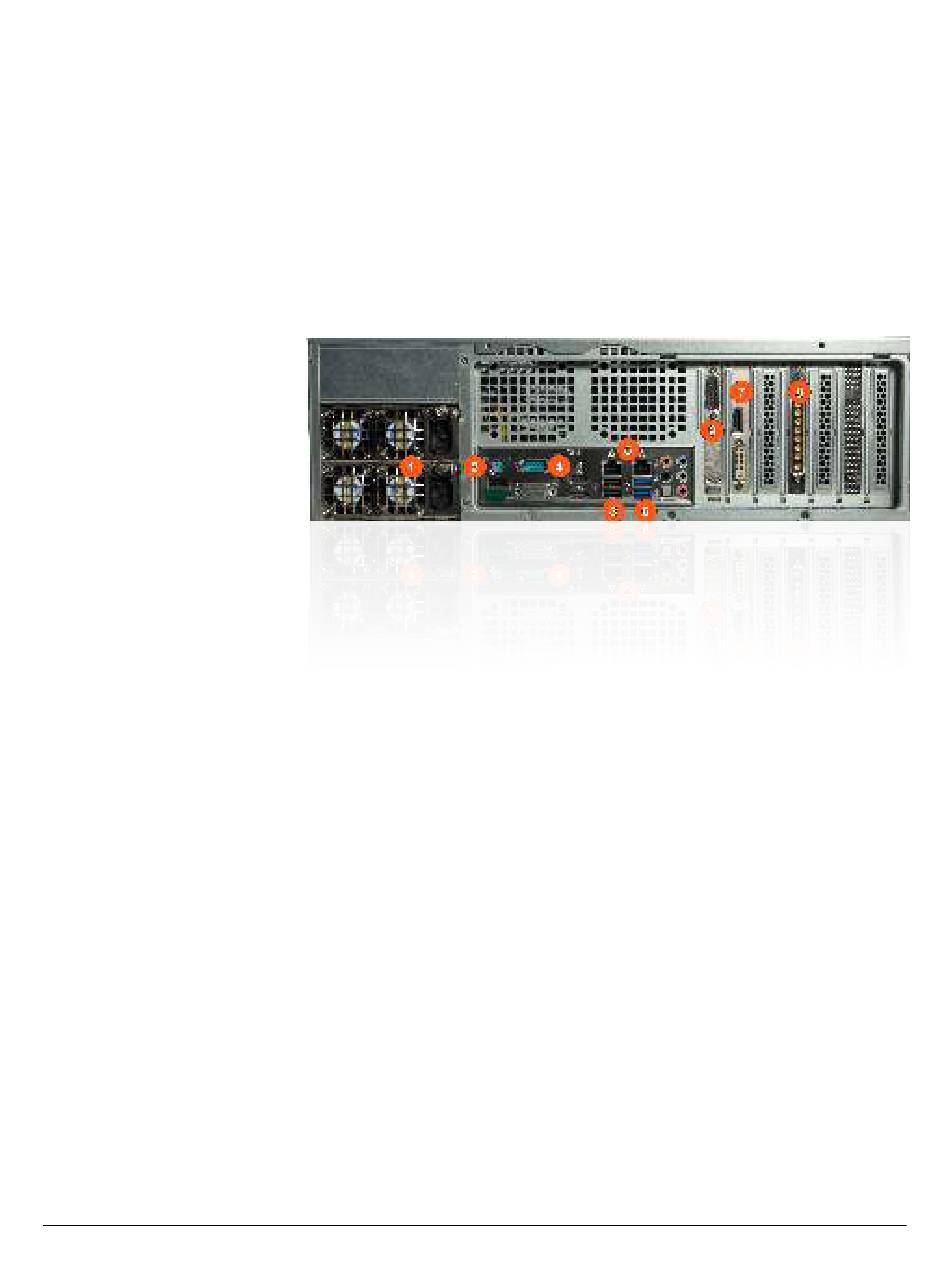

F 5.7: The Cablecast
IGURE
SX2-HD
5.2.3 Final Connections
5 Legacy SX Servers
9. IN 1
10. REF IN
1. Connect the video breakout cable to the large 8-coaxial pin connector. These
outputs also have embedded audio.
2. Connect the audio breakout cable to the keyed 26-pin connector labeled A if
you plan to use AES/EBU audio.
1. AC power
2. PS2
3. USB 2.0
4. RS-232
5. Ethernet
6. USB 3.0
7. DVI-I and DisplayPort
8. AUDIO
9. VIDEO
See section 5.2.5 for an explanation of the connectors on each breakout cable.
Next, connect the SX breakout cables to your existing AV infrastructure as needed.
Each individual cable on the SX breakout "bundle" is labeled as described in
section 5.2.4 for the SX-LE, SX-2, and SX-4. See section
breakout cables.
Once your Cablecast SX server is connected, power on the server by pressing the
power button on the front of the computer.
5.2.5 for the SX2-HD
25
