5.2 Physical Connections
5.2.1 System Connections
5.2.2 AV Connections
SX-LE and SX-2
F 5.3: The Cablecast
IGURE
SX-LE
5 Legacy SX Servers
On the back of your Cablecast SX server, you'll see several ports. Please refer to
the appropriate section for your server, as the ports are somewhat different.
All of the Cablecast SX servers share some basic system connections:
1. Connect a keyboard and mouse. One PS/2 port is provided, and can be used
for either a keyboard or mouse. USB keyboards and mice are suggested if
possible.
2. Connect a monitor. The monitor is required for server setup, and we recom-
mend that it remain connected. The Cablecast SXLE-HD has a single VGA
port, whereas the other server have a DisplayPort and DVI-I port. A DVI to
VGA adapter is included.
3. Connect the Cablecast SX server to the network via one of the ethernet
network jacks.
4. Connect the Cablecast SX server's power supply to an AC power source
using the provided AC power cables.
Next, you will connect the Cablecast SX server to your video infrastructure.
The SX breakout cables are "keyed" so that they can only fit in the appropriate
port on the back of the SX server. Do not force the SX breakout cables into the
port!
The video and audio connections on the Cablecast SX-LE and Cablecast SX-2 are
identical.

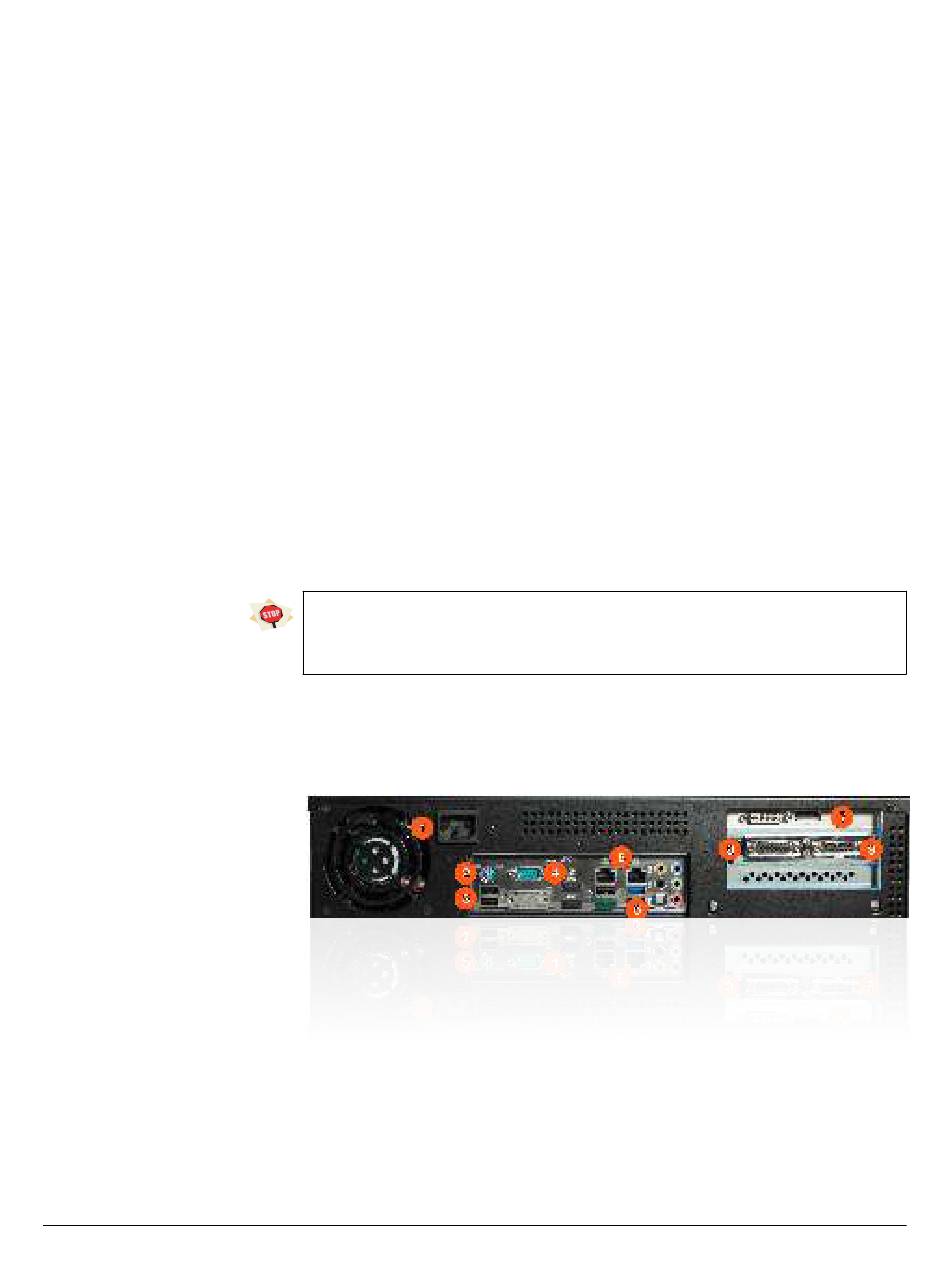

1. AC Power
2. PS2
3. USB 2.0
4. RS-232
5. Ethernet
6. USB 3.0
