Tightrope Media Systems Cablecast Setup Manual page 25

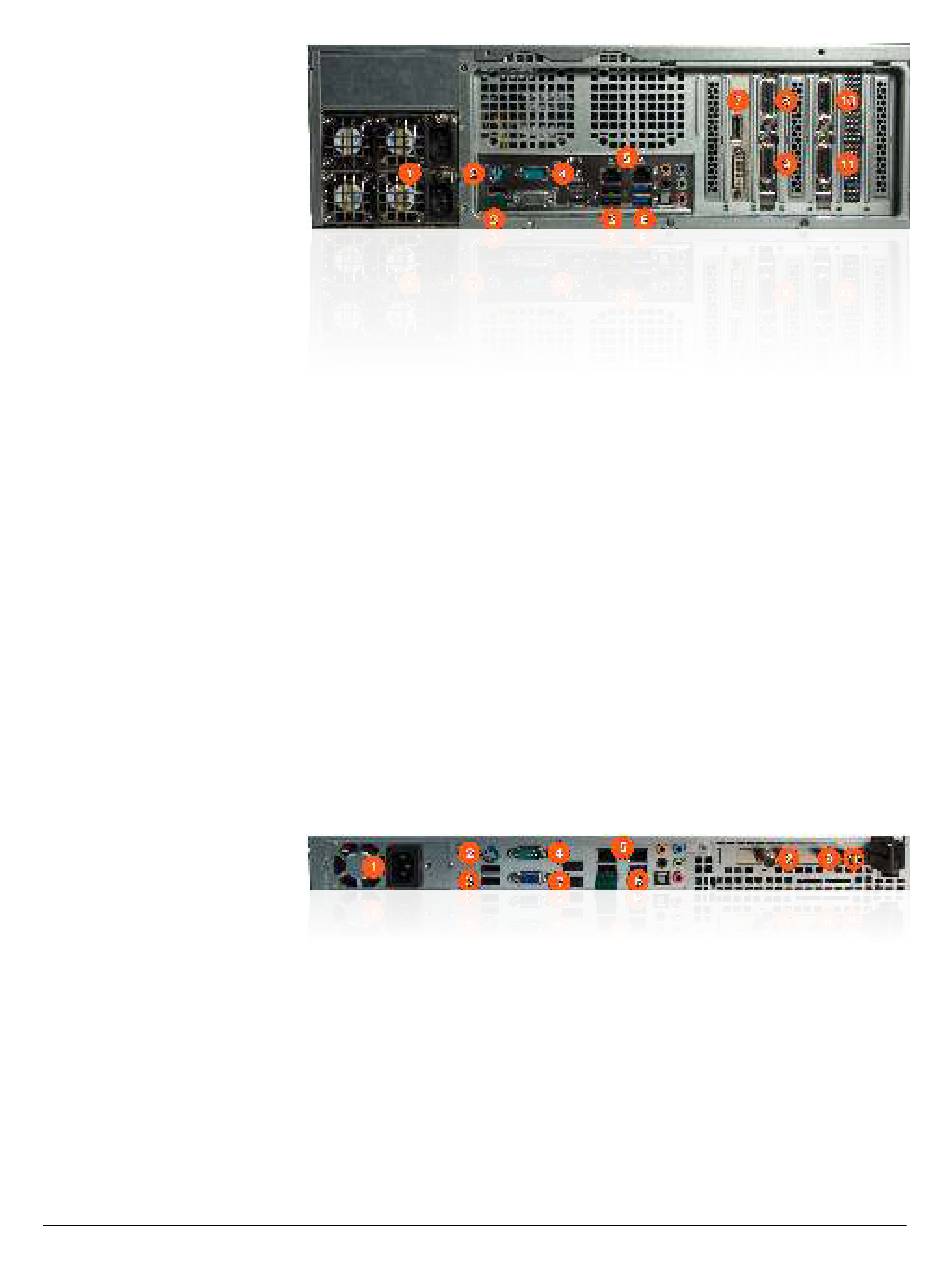

F 5.5: The Cablecast SX4
IGURE
SXLE-HD
F 5.6: The Cablecast
IGURE
SXLE-HD
5 Legacy SX Servers
4. RS-232
5. Ethernet
6. USB 3.0
7. DVI-I and DisplayPort
8. VIDEO 1
9. AUDIO 1
10. VIDEO 2
11. AUDIO 2
See section 5.2.4 for an explanation of the connectors on each breakout cable.
The Cablecast SXLE-HD does not require any breakout cables.
1. Connect a cable from Out 1 to an input on your SD/HD-SDI routing switcher.
2. Connect a cable from an output of your SD/HD-SDI routing switcher to In 1.
3. Connect house tri-level or analog blackburst to Ref In.
1. AC power
2. PS2
3. USB 2.0
4. RS-232
5. Ethernet
6. USB 3.0
7. VGA
8. OUT 1
24
