Summary of Contents for Akuvox E10S

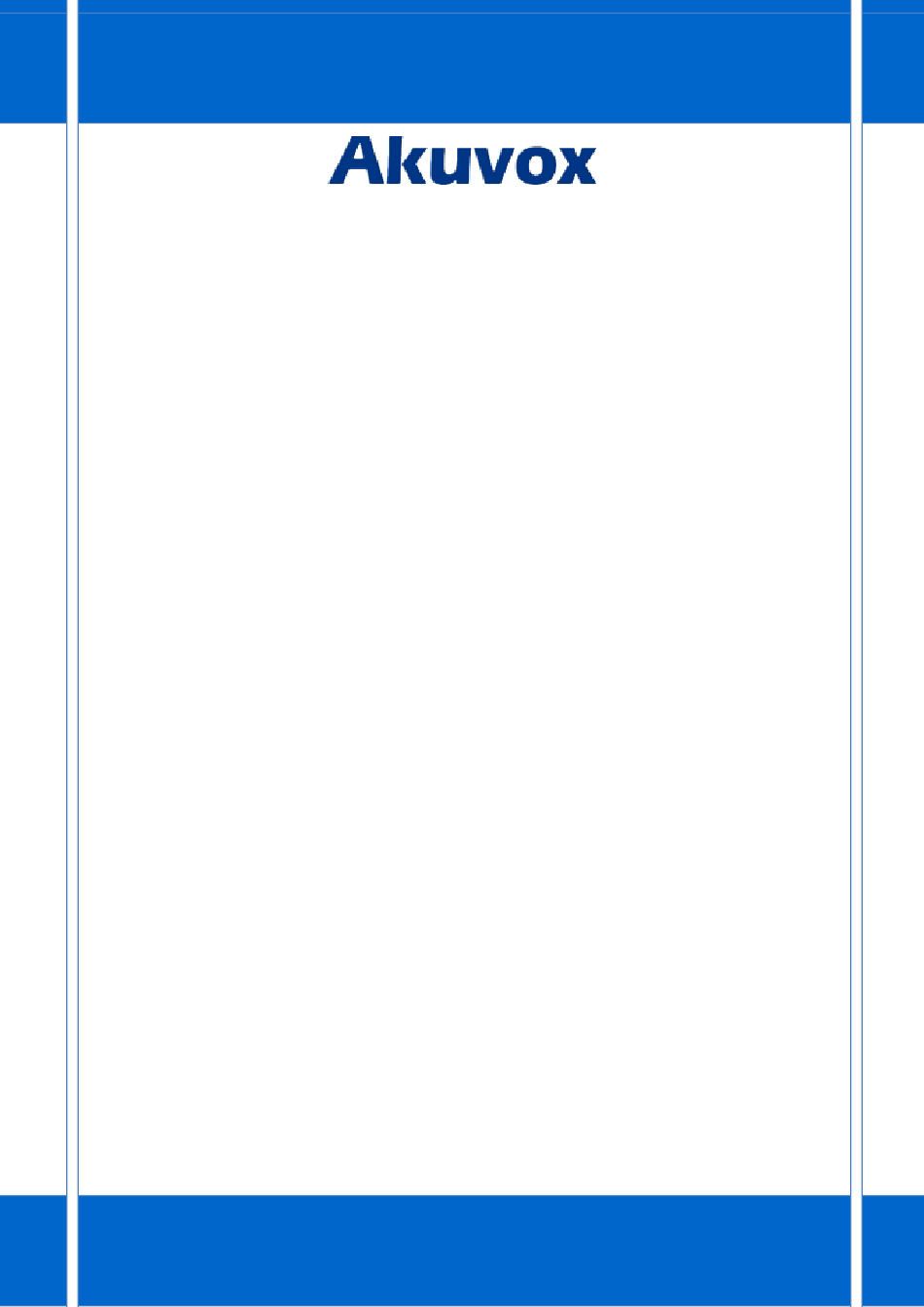

  • Page 1 E10S Secondary Entry Phone...

  • Page 2: Table Of Contents

    Content 1 Production Overview................3 1.1 Production Description..................3 1.2 Dimension......................5 1.3 Connector......................5 1.4 Installation......................6 2 Basic Function...................8 2.1 Make a call......................8 2.2 Monitor......................8 3 Configuration..................9 3.1 Web login......................9 3.1.1 Obtaining IP address................9 3.1.2 Login the web..................9 3.2 Status-Basic..................... 10 3.3 Intercom- Basic....................

  • Page 3: Production Overview

    1 Production Overview 1.1 Production Description E10S is a smart SIP-based secondary entry phone. It can be connected with Akuvox indoor phone for unlock and monitor. It is more convenient and safe for residents to check the visitor identity through E10S. E10S is often applicable in villas , apartments.
  • Page 4 provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

  • Page 5: Dimension

    1.2 Dimension Key Light 1 Indicator Light Button Preformed hole Camera Key Light 2 Infrared sensor Loudspeaker 1.3 Connector Ethernet port Power supply Note: Akuvox IT81 indoor phone can also provide power for E10S through Ethernet port.

  • Page 6: Installation

    Warning : 1. To protect the product from crashing, knocking or shaking. 2. Please don't place the E10S under the sun, high temperature, snow or chemical corrosion or dust. 3. Please install the E10S in a good visual level. (about 160cm) 4.

  • Page 8: Basic Function

    After the call is answered, the LED and Key light will turn up. Resident can pickup the call in video or audio mode . 2.2 Monitor Users can press Monitor button in indoor phone to get the live video from E10S any time.

  • Page 9: Configuration

    3 Configuration 3.1 Web login 3.1.1 Obtaining IP address Hold the call button about 5s, the phone will announce its IP. Press again to stop. 3.1.2 Login the web Open a Web Browser, enter the corresponding IP address. Then, type the default user name and password to log in.

  • Page 10: Intercom- Basic

    Status, including product information, network information and Account information, can be viewed from Status -> Basic. Sections Description Product Information To display the device’s information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware firmware. Network Information To display the device’s Networking status(LAN Port),such as Port Type(which could be DHCP/Static/PPPoE), Link Status, IP...
  • Page 11 Sections Description SIP Account To display and configure the specific Account settings.  Status: To display register result.  Display Name: Which is sent to the other call party for display.  Register Name: Allocated by SIP server provider, used for authentication.

  • Page 12: Intercom-Advanced

    registering. Note: Secondary SIP server is used for redundancy, it can be left blank if there is not redundancy SIP server in user’s environment. Outbound Proxy Server To display and configure Outbound Proxy server settings. An outbound proxy server is used to receive all initiating request messages and route them to the designated SIP server.
  • Page 14 Sections Description SIP Account To display current Account settings or to select which account to display. Codecs To display and configure available/unavailable codecs list. Codec means coder-decoder which is used to transfer analog signal to digital signal or vice versa. Familiar codecs are PCMU(G711U), PCMA(G711A), G722 (wide-bandth codecs), G729 and so on.
  • Page 15 designated account.  Ringtones: Choose the ringtone for each account.  Provisioning Response ACK: 100% reliability for all provisional messages, this means it will send ACK every time the IP phone receives a provisional SIP message from SIP server.  User=phone: If enabled, IP phone will send user=phone within SIP message.

  • Page 16: Network-Basic

    into outgoing SIP message for designated account. User Agent One can customize User Agent field in the SIP message; If user agent is set to specific value, user could see the information from PCAP. If user agent is not set by default, user could see the company name, model number and firmware version from PCAP 3.5 Network-Basic...

  • Page 17: Network-Advanced

    3.6 Network-Advanced Sections Description Local RTP To display and configure Local RTP settings.  Max RTP Port: Determine the maximum port that RTP stream can use.  Starting RTP Port: Determine the minimum port that RTP stream can use.

  • Page 18: Phone-Time/Lang

    3.7 Phone-Time/Lang Sections Description To configure NTP server related settings.  Time Zone: To select local Time Zone for NTP server.  Primary Server: To configure primary NTP server address.  Secondary Server: To configure secondary NTP server address, it takes effect if primary NTP server is unreachable.

  • Page 19: Phone-Call Feature

    3.8 Phone-Call Feature Sections Description  Mode Mode: Select the desired mode. DND (Do Not Disturb) allows IP phones to ignore any incoming calls.  Return Code when DND: Determine what response code should be sent back to server when there is an incoming call if DND on.

  • Page 20: Phone-Voice

    callee will be muted.  Others Return Code When Refuse: Allows user to assign specific code as return code to SIP server when an incoming call is rejected.  Auto Answer Delay: To configure delay time before an incoming call is automatically answered. ...

  • Page 21: Phone-Call Log

    To display call history records. Available call history types are All calls, Dialed calls, Received calls, Missed calls, Forwarded calls. Users can check the call history in detail. Tick the number to delete or delete all logs. E10S supports 100 call logs.

  • Page 22: Upgrade-Basic

    3.11 Upgrade-Basic Sections Description Upgrade To select upgrading rom file from local or a remote server automatically. Note: Please make sure it’s right file format for right model. Firmware version To display firmware version, firmware version starts with MODEL name. Hardware Version To display Hardware version.

  • Page 23: Upgrade-Advanced

    3.12 Upgrade-Advanced Sections Description PNP Option To display and configure PNP setting for Auto Provisioning.  PNP: Plug and Play, once PNP is enabled, the phone will send SIP subscription message to PNP server automatically to get Auto Provisioning server’s address. By default, this SIP message is sent to multicast address 224.0.1.75(PNP server address by standard).

  • Page 24: Security-Basic

    3.13 Security-Basic Sections Description Web Password Modify To modify user’s password.  Current Password: The current password you used.  New Password: Input new password you intend to use.  Confirm Password: Repeat the new password.
