XSA Interface
True MIMO
Here is an example of 4x4 MIMO:

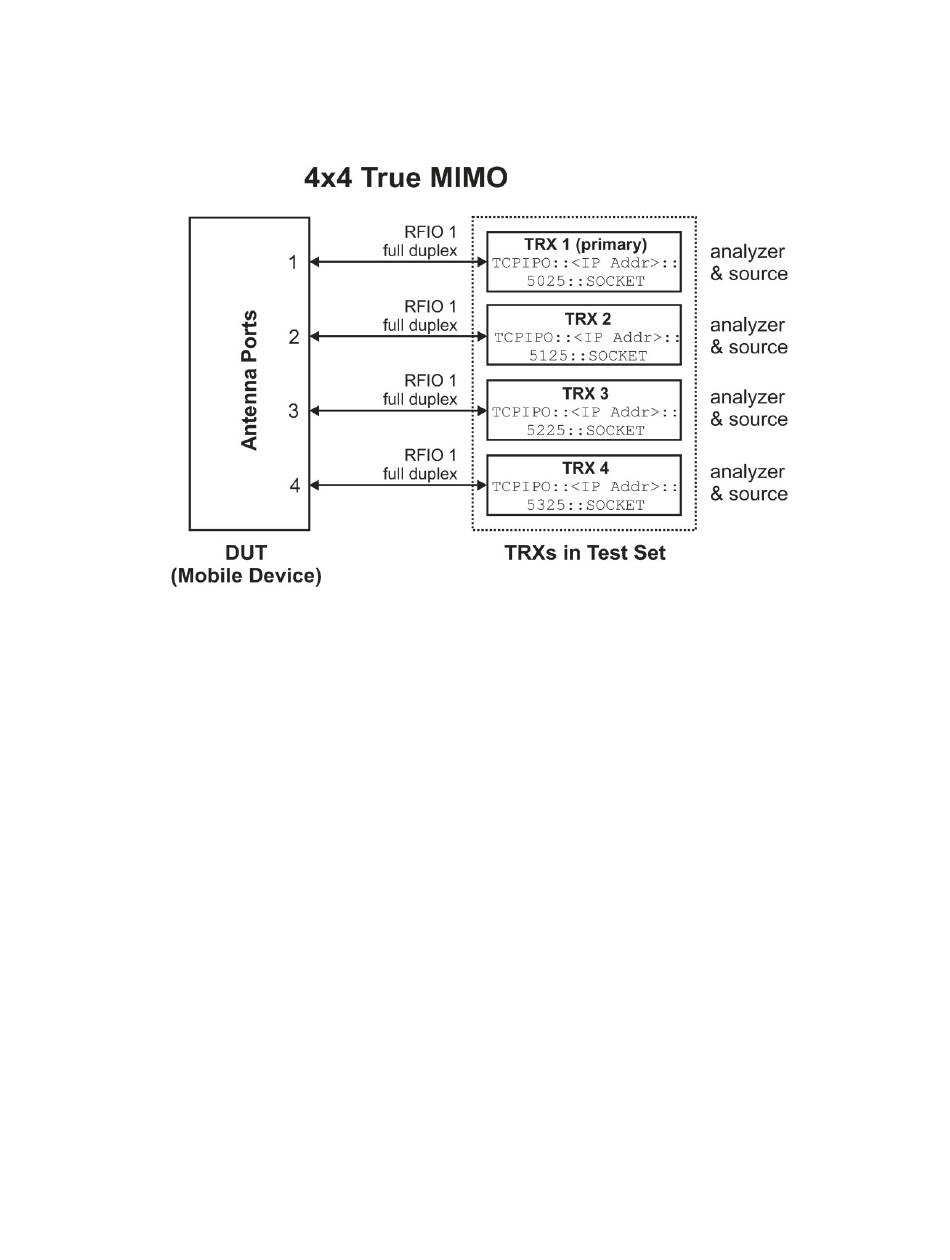

Figure 3-28
4X4 true MIMO connections
In the example setup shown here, TRX 1 runs the MIMO Modulation Analysis
measurement, and is also configured to control TRX 2 to 4, which collect the
second, third, and fourth data streams.
Getting Started Guide
91
