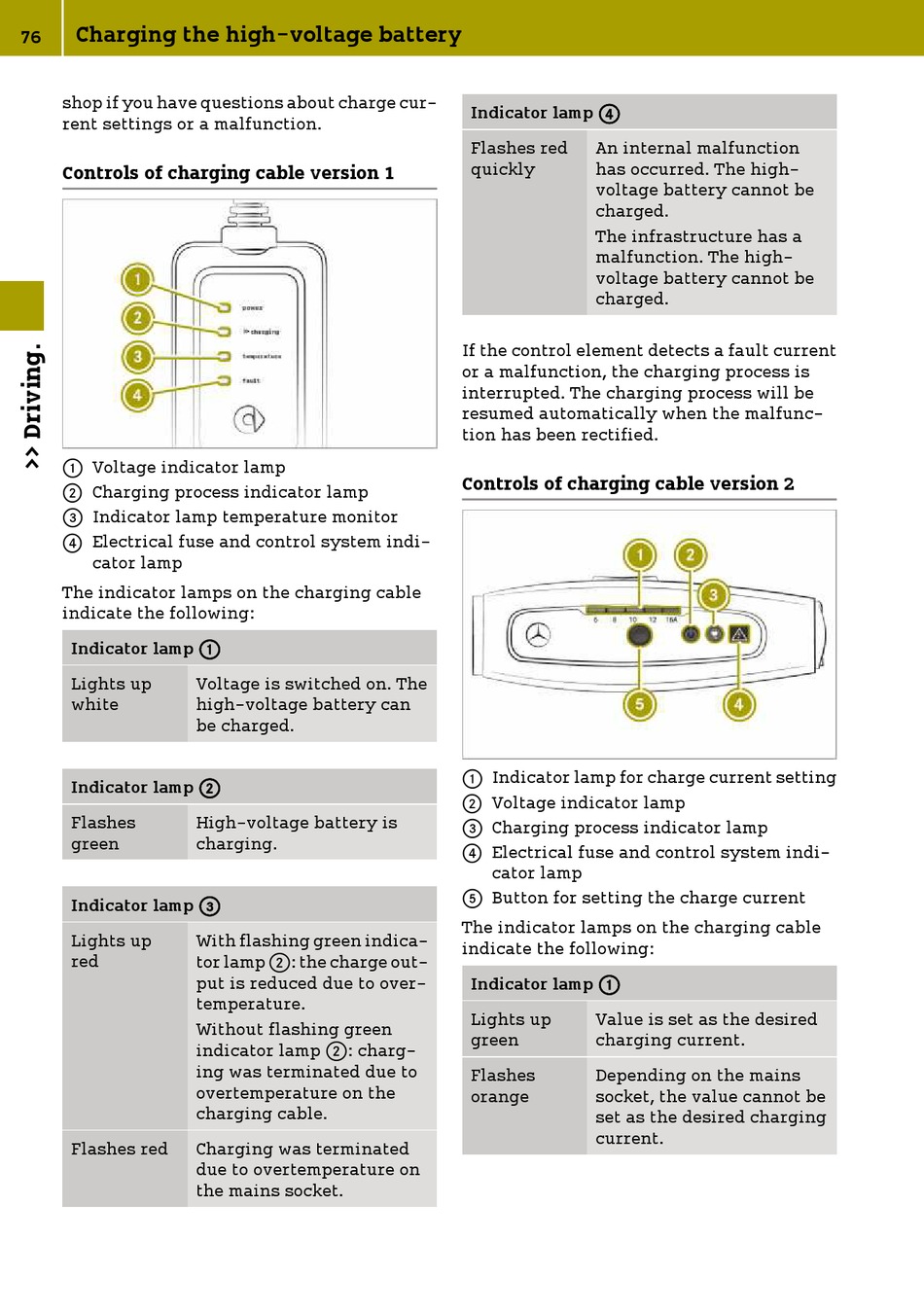

SMART fortwo coupe Owner's Manual page 78

Charging the high-voltage battery
76
shop if you have questions about charge cur-
rent settings or a malfunction.
Controls of charging cable version 1
Voltage indicator lamp
:
Charging process indicator lamp
;
Indicator lamp temperature monitor
=
Electrical fuse and control system indi-
?
cator lamp
The indicator lamps on the charging cable
indicate the following:
Indicator lamp :
Lights up
white
Indicator lamp ;
Flashes
green
Indicator lamp =
Lights up
red
Flashes red
Voltage is switched on. The
high-voltage battery can
be charged.
High-voltage battery is
charging.
With flashing green indica-
tor lamp ;: the charge out-
put is reduced due to over-
temperature.
Without flashing green
indicator lamp ;: charg-
ing was terminated due to
overtemperature on the
charging cable.
Charging was terminated
due to overtemperature on
the mains socket.
Indicator lamp ?
Flashes red An internal malfunction
quickly has occurred. The high-
voltage battery cannot be
charged.
The infrastructure has a
malfunction. The high-
voltage battery cannot be
charged.
If the control element detects a fault current
or a malfunction, the charging process is
interrupted. The charging process will be
resumed automatically when the malfunc-
tion has been rectified.
Controls of charging cable version 2
Indicator lamp for charge current setting
:
Voltage indicator lamp
;
Charging process indicator lamp
=
Electrical fuse and control system indi-
?
cator lamp
Button for setting the charge current
A
The indicator lamps on the charging cable
indicate the following:
Indicator lamp :
Lights up Value is set as the desired
green charging current.
Flashes Depending on the mains
orange socket, the value cannot be
set as the desired charging
current.
