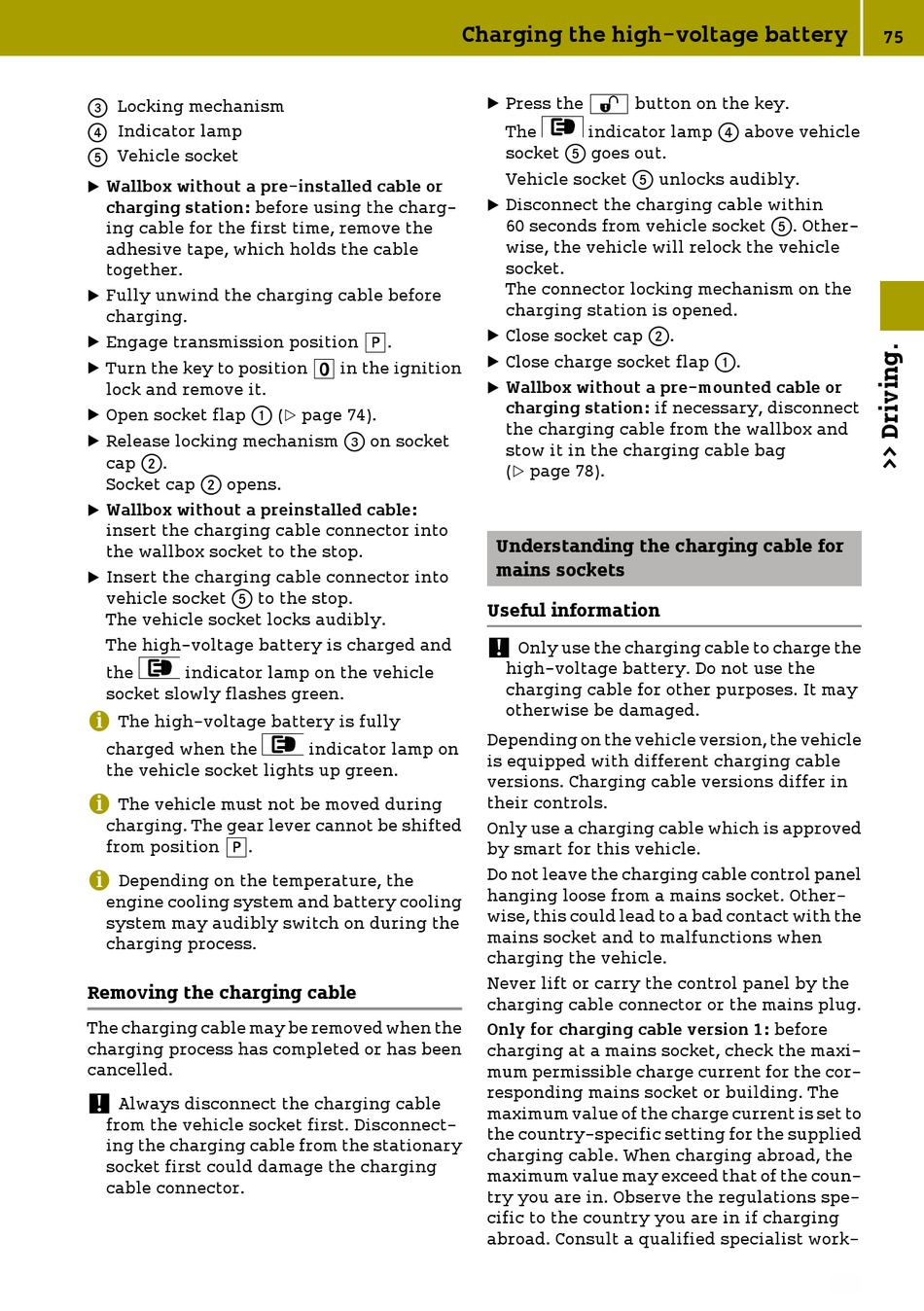

Locking mechanism
=
Indicator lamp
?
Vehicle socket
A
X
Wallbox without a pre-installed cable or
charging station: before using the charg-
ing cable for the first time, remove the
adhesive tape, which holds the cable
together.
X
Fully unwind the charging cable before
charging.
X
Engage transmission position j.
X
Turn the key to position u in the ignition
lock and remove it.
X
Open socket flap : (
X
Release locking mechanism = on socket
cap ;.
Socket cap ; opens.
X
Wallbox without a preinstalled cable:
insert the charging cable connector into
the wallbox socket to the stop.
X
Insert the charging cable connector into
vehicle socket A to the stop.
The vehicle socket locks audibly.
The high-voltage battery is charged and
the indicator lamp on the vehicle
socket slowly flashes green.
i The high-voltage battery is fully
charged when the
the vehicle socket lights up green.
i
The vehicle must not be moved during
charging. The gear lever cannot be shifted
from position j.
i
Depending on the temperature, the
engine cooling system and battery cooling
system may audibly switch on during the
charging process.
Removing the charging cable
The charging cable may be removed when the
charging process has completed or has been
cancelled.
!
Always disconnect the charging cable
from the vehicle socket first. Disconnect-
ing the charging cable from the stationary
socket first could damage the charging
cable connector.
Y
page 74).
indicator lamp on
Charging the high-voltage battery
X
Press the % button on the key.
The indicator lamp ? above vehicle
socket A goes out.
Vehicle socket A unlocks audibly.
X
Disconnect the charging cable within
60 seconds from vehicle socket A. Other-
wise, the vehicle will relock the vehicle
socket.
The connector locking mechanism on the
charging station is opened.
X
Close socket cap ;.
X
Close charge socket flap :.
X
Wallbox without a pre-mounted cable or
charging station: if necessary, disconnect
the charging cable from the wallbox and
stow it in the charging cable bag
Y
( page 78).
Understanding the charging cable for
mains sockets
Useful information
!
Only use the charging cable to charge the
high-voltage battery. Do not use the
charging cable for other purposes. It may
otherwise be damaged.
Depending on the vehicle version, the vehicle
is equipped with different charging cable
versions. Charging cable versions differ in
their controls.
Only use a charging cable which is approved
by smart for this vehicle.
Do not leave the charging cable control panel
hanging loose from a mains socket. Other-
wise, this could lead to a bad contact with the
mains socket and to malfunctions when
charging the vehicle.
Never lift or carry the control panel by the
charging cable connector or the mains plug.
Only for charging cable version 1: before
charging at a mains socket, check the maxi-
mum permissible charge current for the cor-
responding mains socket or building. The
maximum value of the charge current is set to
the country-specific setting for the supplied
charging cable. When charging abroad, the
maximum value may exceed that of the coun-
try you are in. Observe the regulations spe-
cific to the country you are in if charging
abroad. Consult a qualified specialist work-
