Installation Instructions - Assa Abloy 179E-2 Mounting Instruction

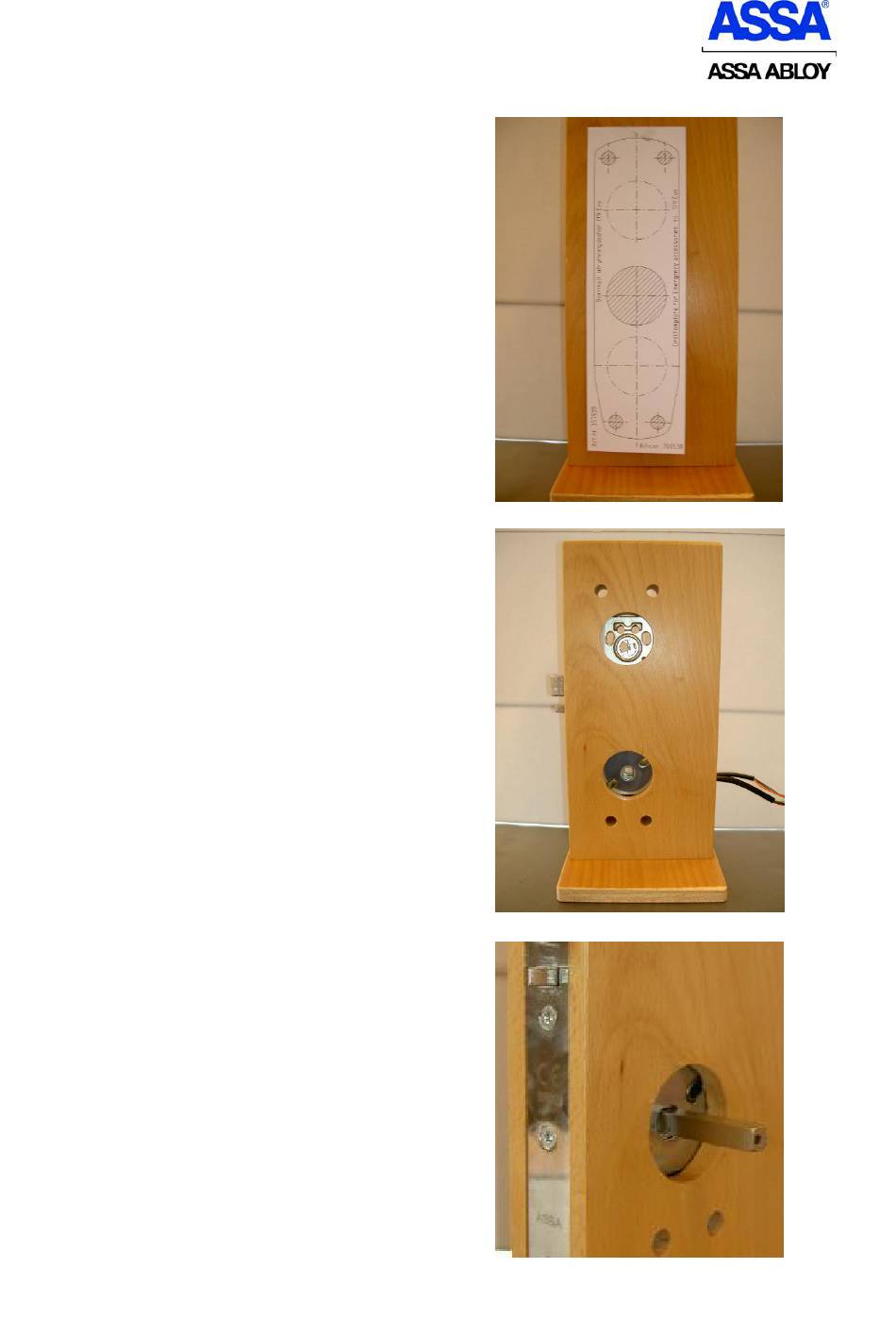

1. Use drill template 700538 and drill 4 holes
(Ø 10 mm) for the bolt through fixing.
1. To secure function in fire approved doors use
the 14 mm bolt throw. See manual for Abloy
EL580/EL587. If necessary, change handing of
the lock case.
Install lock case Abloy EL580/EL587.
2. Install the split spindle into the lock case
according to the mounting instructions for
EL580/EL587. The split spindle is included
with the lock case. If the B- or C-measure is
small it might need to be cut.
