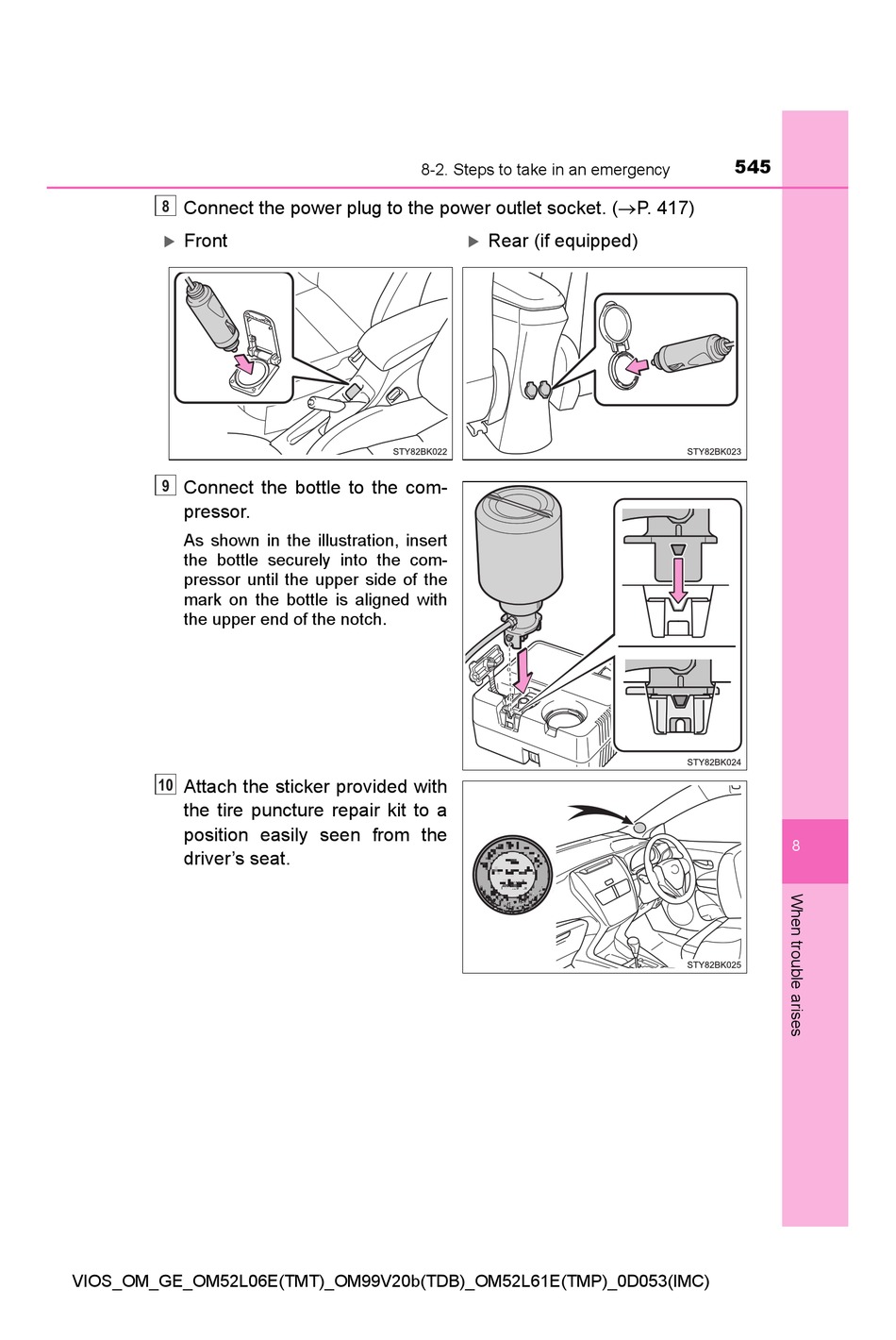

Toyota VIOS Owner's Manual page 546

8
Connect the power plug to the power outlet socket. (P. 417)
Front

9
Connect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle securely into the com-
pressor until the upper side of the
mark on the bottle is aligned with
the upper end of the notch.
10 Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver's seat.
VIOS_OM_GE_OM52L06E(TMT)_OM99V20b(TDB)_OM52L61E(TMP)_0D053(IMC)
8-2. Steps to take in an emergency
Rear (if equipped)

545
8
