1-1. For safe use

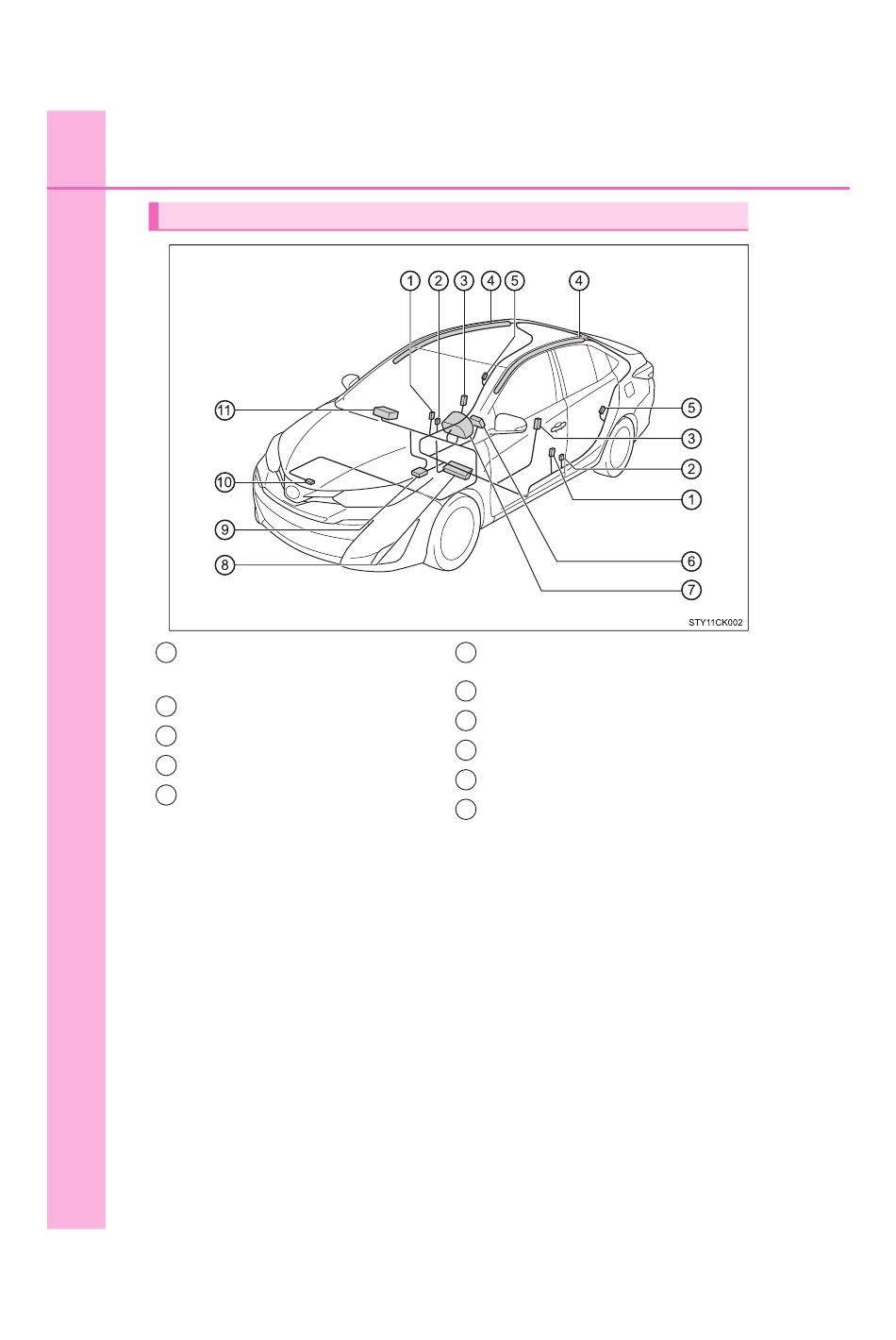

SRS airbag system components

1
Seat belt pretensioners and
force limiters
2
Side impact sensors (front)
3
Side airbags
4
Curtain shield airbags
5
Side impact sensors (rear)
*
: If equipped
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
VIOS_OM_GE_OM52L06E(TMT)_OM99V20b(TDB)_OM52L61E(TMP)_0D053(IMC)
*
*
*
10
*
6
Driver airbag
7
SRS warning light
8
Driver's knee airbag
9
Airbag sensor assembly
Front impact sensor
11
Front passenger airbag
*
