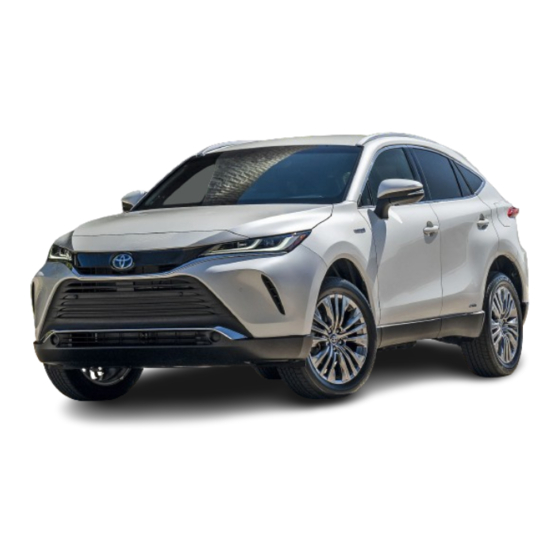

Toyota VENZA 2022 Quick Reference Manual
  1. Manuals
  2. Brands
  3. Toyota Manuals
  4. Automobile
  5. VENZA 2022
  6. Quick reference manual

Toyota VENZA 2022 Quick Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

QUICK
REFERENCE
GUIDE
2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VENZA 2022 and is the answer not in the manual?

Questions and answers

Related Manuals for Toyota VENZA 2022

Summary of Contents for Toyota VENZA 2022

  • Page 1 QUICK REFERENCE GUIDE 2022...
  • Page 2 Owner’s Manual. Each box contains operating instructions to help you avoid injury or equipment malfunction. All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.
  • Page 3 60-62 PAIRING SECTION Power tilt & telescopic steering wheel Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink is a registered trademark of Gentex Corporation.

  • Page 4: Instrument Panel

    OVERVIEW Instrument panel Multi-Information Display Full-Speed Range Dynamic Radar Cruise Control (MID) control switches (DRCC) vehicle-to-vehicle distance switch Full-Speed Range Dynamic Radar Cruise Control (DRCC) switch Audio volume Audio control switches control switch Voice Telephone switch LTA (Lane Tracing Assist) switch command switch Steering wheel controls Windshield wiper and washer control...
  • Page 5 If equipped. For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.toyota.com/audio-multimedia for additional audio/multimedia resources. Audio system/ 12.3-in display Navigation system vehicle settings and vehicle information Emergency flasher switch Intelligent Touch capacitive air conditioning/heating, Audio Multimedia system...
  • Page 6 OVERVIEW Instrument panel (continued) CENTER PANEL AREA Electric parking brake switch Brake hold switch Driving mode select switch EV drive mode switch Heated only Heated and Ventilated Heated front seat Heated front seat switches switches Ventilated front seat switches If equipped...

  • Page 7: Instrument Cluster

    Instrument cluster VEHICLES EQUIPPED WITH 4.2-in MID Multi-Information Display (MID) Clock Speedometer Hybrid System Indicator Outside temperature Engine coolant Shift position and Odometer and Fuel gauge temperature gauge shift range indicator trip meter VEHICLES EQUIPPED WITH 7-in MID Multi-Information Display (MID) Clock Speedometer Hybrid System Indicator...

  • Page 8: Indicator Symbols

    OVERVIEW Indicator symbols For details, refer to “Warning lights and indicators,” Section 2-1, 2022 Owner’s Manual. Driver’s and front passenger’s seat “Airbag ON/OFF” indicator belt reminder (alarm will sound when the vehicle is on) Airbag SRS warning ECO drive mode indicator ABS (Anti-lock Brake System) Electric power steering system warning...
  • Page 9 If the indicator does not turn off within a few seconds of starting the Hybrid System, there may be a malfunction. Have the vehicle inspected by your Toyota dealer. If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.

  • Page 10: Keyless Entry

    OVERVIEW Keyless entry UNLOCKING OPERATION Smart Key Carry Smart Key remote Driver’s door unlock* Grasp Press ONCE: Driver door TWICE: All doors NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety. LOCKING OPERATION Smart Key Carry Smart...

  • Page 11: Panic Button

    PANIC BUTTON Smart Key Press and hold Smart Key system START FUNCTION Press NOTE: The Smart Key must be carried to enable the start function. With the Park position selected and the brake pedal depressed, press the “POWER” button. POWER (WITHOUT STARTING VEHICLE) Without depressing the brake pedal, pressing the “POWER”...

  • Page 12: Fuel Tank Door Release And Cap

    OVERVIEW Fuel tank door release & cap Driver seat Store Turn to open Push Close NOTE: Tighten until one click is heard. If the cap is not locked or tightened enough, the Check Engine indicator “ ” may illuminate. Hood release Push the lever to the left and raise the hood Pull...

  • Page 13: Instrument Panel Light Control

    Engine oil filler cap Engine oil level dipstick Washer fluid tank NOTE: Regularly scheduled maintenance at your Toyota dealer, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer to the “Warranty & Maintenance Guide.”...

  • Page 14: Hybrid Synergy Drive System

    FEATURES & OPERATIONS Hybrid Synergy Drive System The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine and electric motor to provide the most efficient combination of power for the vehicle. When the brakes are applied, the braking force generates electricity, which is then sent to the traction battery to conserve energy.

  • Page 15: Hybrid Transmission

    Hybrid transmission Park* + (“S” mode) Reverse Neutral Drive - (“S” mode) “S” mode * The vehicle must be on and the brake pedal depressed to shift from Park. “S” MODE Push shift lever to the left from “D” position, to “S” position. Shift lever type: : Upshift (push and release) : Downshift (pull and release)

  • Page 16: Ev Drive Mode

    FEATURES & OPERATIONS EV drive mode In EV drive mode, electric power is supplied by the hybrid battery (traction battery), and only the electric motor (traction motor) is used to drive the vehicle. This mode allows you to drive in residential areas early in the morning and late at night, or in indoor parking lots etc.

  • Page 17: Electric Parking Brake

    Electric parking brake PARKING BRAKE Driver side Automatic mode Manual mode Pull to Press to release Parking brake light Parking brake light Automatic mode (shift lever operation) To turn automatic mode ON, while vehicle is stopped, pull and hold the switch until a buzzer sounds and “EPB Shift Interlock Function Activated”...

  • Page 18: Hands-Free Function

    FEATURES & OPERATIONS Height Adjustable, Hands-Free Power Liftgate Instrument panel Open: Push and hold Close: Push and hold again Power Liftgate (back door) (open only) (close only) HEIGHT ADJUSTABLE FUNCTION 1. When the liftgate reaches the desired height, press the rear liftgate close-button (on the door jam of the liftgate) once.

  • Page 19: Power Windows

    HANDS-FREE FUNCTION (CONTINUED) To automatically open/close Power Liftgate: Quickly kick your foot in and out underneath the lower center part of the rear bumper within 1 second to trigger the sensor. To operate, make sure that the touchless sensor operation is enabled, the vehicle is OFF and that you are carrying a Smart Key remote.

  • Page 20: Multi-Information Display (Mid)

    FEATURES & OPERATIONS Multi-Information Display (MID) VEHICLES EQUIPPED WITH 4.2-in MID Driving support system information Menu icons Return to the Information previous screen display area Push: enter/set Push and hold: reset Scroll/search screens VEHICLES EQUIPPED WITH 7-in MID Driving support system RSA (Road Sign Assist) information Return to the...

  • Page 21: Head-Up Display (Hud)

    Head-Up Display (HUD) (if equipped)* * Available only on Limited grade with Advanced Technology Package Shift position/RSA display area Driving support system display area/ Speedometer Navigation system-linked display area* * If equipped Hybrid System Indicator/ Outside temperature display area The head-up display projects a variety of driving related information and the operating state of the driving support systems on the windshield.

  • Page 22: Bottle Holders

    Automatic High Beams (AHB) system* Automatically switches between high and low beams as appropriate to enhance vision at night. Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Owner’s Manual for more details on the Automatic High Beams feature.

  • Page 23: Front Fog Lights - If Equipped

    FRONT FOG LIGHTS (IF EQUIPPED) Turn Front fog lights come on only when the headlights are on low beam. TURN SIGNALS Right turn Lane change Lane change Left turn Move the lever partway and release. The signals will flash three times. Windshield wipers &...

  • Page 24: Rear Seats-Adjustments

    FEATURES & OPERATIONS Front seats-Adjustments MANUAL PASSENGER SEAT POWER SEAT (IF EQUIPPED) Seat position (forward/backward) Seatback angle Seat cushion (front) angle* Vertical height adjustment* Seatback angle Lumbar support* and Seat position pelvic support (if equipped)* (forward/backward) * Driver’s side only Power easy access system (if equipped): The driver’s seat and steering wheel move in accordance with power button mode and the driver’s seat belt condition.

  • Page 25: Dimming Operation

    Clock Select to change the time zone. Select to set daylight saving time On/Off/Auto Select to set automatic adjustment of the clock by GPS on/off. When set to off, the clock can be manually adjusted. Select to set the 24 hour time format on/off.
  • Page 26 FEATURES & OPERATIONS Steering wheel switches ® & telephone controls (Bluetooth “MODE” Return to the Press to change audio mode. previous screen Start and end call Press and hold to mute or pause the audio. Voice command switch “ ” Volume control Use to search within the selected audio feature.
  • Page 27 Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.toyota.com/audio-multimedia for additional resources. NOTE: Always use safe driving practices and follow all traffic rules. VEHICLES EQUIPPED WITH 12.3-in DISPLAY Touchscreen display Press to turn ON/OFF,...

  • Page 28: Power Outlet-12V Dc

    FEATURES & OPERATIONS Power outlet-12V DC The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode for use. USB charge ports (Charge only) The vehicle must be in the “ACCESSORY” or “IGNITION ON” mode for use. USB media/AUX ports USB media port Connecting a compatible device and cable into either USB media port will support charging and music playback through the audio multimedia system.

  • Page 29: Qi Wireless Charger

    Qi Wireless charger Operation indicator light Charge area Power switch Press (1) When the engine is turned off, the last state (ON/OFF) of the charger is retained. Place (2) Place device nearest in the center of the charging area for best results. Moving device may result in stopping or restarting the charging process.
  • Page 30 System Owner’s Manual.” OPERATION Moving screens: Select “ ” to change its displayed position on the Toyota multi-operation touch. The screen position can also be changed by performing a left or right flick operation on a screen. Full screen display/split screen display: Select “...
  • Page 31 HEATED SEAT OPERATION (IF EQUIPPED) Heated only Heated and Ventilated Level indicators (yellow) VENTILATED SEAT OPERATION (IF EQUIPPED) Level indicators (green) TOYOTA MULTI-OPERATION TOUCH* (IF EQUIPPED) * Available only on vehicles equipped with 12.3-in display Heated seats Ventilated seats Level indicators (red) Level indicators (blue) The vehicle must be on for use.

  • Page 32: Heated Steering Wheel - If Equipped

    FEATURES & OPERATIONS Heated steering wheel (if equipped) The vehicle must be on for use. Air conditioning/heating AUTOMATIC AIR CONDITIONING - VEHICLES EQUIPPED WITH 8-in DISPLAY “SYNC” button - Indicator ON: Synchronized Automatic climate control ON - temperature settings for driver and passengers. Adjusting the temperature setting will cause Indicator OFF: Separate temperature settings for the airflow vents, air intake and fan to...
  • Page 33 AUTOMATIC AIR CONDITIONING - VEHICLES EQUIPPED WITH 12.3-in DISPLAY Airflow vent: Option switch (See below) Fan speed Temperature control Temperature control (driver side) (front passenger side) “SYNC” switch Recirculate cabin air (outside air when OFF) ECO mode Air conditioning ON/OFF AUTO switch (Automatic climate control) Windshield defogger Fan speed...

  • Page 34: Garage Door Opener

    Refer to the Owner’s Manual for limitations and more details. For programming assistance, contact HomeLink at 1-800-355-3515, or visit ® www.homelink.com/toyota. ® HomeLink is a registered trademark of Gentex Corporation.

  • Page 35: Vehicle Stability Control (Vsc)

    To adjust the image on the rear view monitor screen, press the “MENU” button and select “Display.” Select “Camera” to adjust the screen contrast and brightness. Refer to “Toyota parking assist monitor precautions” section in the Navigation and Multimedia System Owner’s Manual for limitations and more details on this system.
  • Page 36 FEATURES & OPERATIONS Bird’s Eye View Camera with Perimeter Scan (if equipped) Moving view See-through view Body color setting switch Body color setting switch Rotation pause switch Rotation pause switch Display mode change switch Display mode change switch The Bird’s Eye View Camera with Perimeter Scan function assists the driver in viewing the surroundings, when operating at low speeds or parking, by combining front, side and rear cameras and displaying an overhead image on the screen.

  • Page 37: Blind Spot Monitor With Rear Cross Traffic Alert (Bsm W/Rcta)

    Blind Spot Monitor with Rear Cross Traffic Alert (BSM w/RCTA) Outside rear view mirror indicators MID control switches Buzzer* * RCTA only Monitor screen display* The Blind Spot Monitor is a system that has two functions: • The Blind Spot Monitor function (assists the driver in making the decision when changing lanes) •...
  • Page 38 FEATURES & OPERATIONS Front and Rear Parking Assist with Automated Braking (PA w/AB) (if equipped) Front and Rear Parking Assist with Automated Braking consists of the following functions that operate when driving at a low speed or backing up, such as when parking.

  • Page 39: Intuitive Parking Assist

    Intuitive Parking Assist (if equipped) Front center sensor Corner sensor Corner sensor (front) (front) Corner sensor Corner sensor (rear) (rear) Rear center sensor If the sensors detect an obstacle, the buzzer and MID or navigation system display inform the driver of the approximate position and distance of the obstacle by illuminating continuously (far) or blinking (near).
  • Page 40 Refer to the Owner’s Manual for operation, setting adjustments, limitations and more details to understand these functions and complete safety precautions. For more information, please go to www.toyota.com/safety-sense. Pre-Collision System with Pedestrian Detection (PCS w/PD) PCS w/PD is designed to provide alert, mitigation, and/or avoidance support in certain conditions, when the system detects a potential collision with a preceding vehicle is likely to occur.

  • Page 41: Pre-Collision System With Pedestrian Detection (Pcs W/Pd)

    See www.toyota.com/safety-sense for more information. Refer to the Toyota Owner’s Manual for a list of additional situations in which the system operation may be limited.
  • Page 42 Monocular camera sensor Millimeter wave radar As part of the Pre-Collision System, this function is also designed to first provide an alert and then automatic braking if needed. Refer to the Toyota Owner’s Manual for additional limitations and information.
  • Page 43 PCS on or off. Note: The system is enabled each time the vehicle is turned on. Refer to the Toyota Owner’s Manual for additional information on PCS w/PD operation, settings adjustments, limitations, and precautions before attempting to use it.
  • Page 44 Functions included in the LTA system are Lane Departure Alert with Steering Assist, Vehicle Sway Warning and Lane Centering. Refer to the Toyota Owner’s Manual for additional information on the LTA system operation, settings adjustments, limitations, and precautions before attempting to use it.
  • Page 45 If the driver does not take corrective action, the Steering Assist function is designed to provide gentle corrective steering.* * See www.toyota.com/safety-sense for more information. Lane departure alert function display LTA indicator...
  • Page 46 TOYOTA SAFETY SENSE ™ DISABLING STEERING ASSIST (1) Press “ ” or “ ” switches and select “ ” from the Multi-Information Display (MID). (2) Press “ ” or “ ” switches and select “ LTA” and then press and hold “...
  • Page 47 Ignition cycle until changed by the driver or the system is reset. Refer to the Toyota Owner’s Manual for additional information on the LTA system operation, settings adjustments, limitations, and precautions before attempting to use it.
  • Page 48 Ignition cycle until changed by the driver or the system is reset. Refer to the Toyota Owner’s Manual for additional information on the LTA system operation, settings adjustments, limitations, and precautions before attempting to use it.

  • Page 49: Full-Speed Range Dynamic Radar Cruise Control (Drcc)

    0-110 mph* and uses vehicle-to-vehicle distance control, helping maintain a preset distance from the vehicle ahead of you.* * See www.toyota.com/safety-sense for more information. Refer to the Toyota Owner’s Manual for a list of additional situations in which the system operation may be limited. Full-Speed Range DRCC...
  • Page 50 TOYOTA SAFETY SENSE ™ ADJUSTING DISTANCE LONG SHORT (default setting) MEDIUM Preceding vehicle mark To change the vehicle-to-vehicle distance: Press the “ ” switch to cycle through the settings, which will change progressively. This mode employs a radar sensor to detect the presence of a preceding vehicle...
  • Page 51 SETTING CONSTANT SPEED (CRUISE) CONTROL To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on page 47. Refer to the Toyota Owner’s Manual for additional information on DRCC operation, settings adjustments, limitations, and precautions before attempting to use it.

  • Page 52: Automatic High Beams (Ahb)

    See www.toyota.com/safety-sense for more information. Refer to the Toyota Owner’s Manual for additional information on AHB operation, settings adjustments, limitations, and precautions before attempting to use it. ACTIVATING THE AHB SYSTEM (1) Press the “...

  • Page 53: Road Sign Assist (Rsa)

    Multi-Information Display (MID).* * All vehicle actions must be driver-initiated and are not automated. Refer to the Toyota Owner’s Manual for additional information and limitations. RSA DISPLAY When the driving support system...
  • Page 54 Note: If the vehicle was last turned off while a speed limit sign was displayed on the Multi-Information Display (MID), the same sign displays again when the vehicle is turned back ON. Refer to the Toyota Owner’s Manual for additional information on RSA operation, settings adjustments, limitations, and precautions before attempting to use it.

  • Page 55: Rear Door Child Safety Locks

    SAFETY & EMERGENCY FEATURES Seat belts Take up slack Too high Keep as low on hips as possible NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly, the Automatic locking retractor (ALR) will prevent it from being re-extended beyond that point, unless fully retracted again.

  • Page 56: Spare Tire And Tools

    SAFETY & EMERGENCY FEATURES Spare tire & tools TOOL LOCATION Jack handle Towing eyelet Wheel nut wrench Jack Spare tire REMOVING THE SPARE TIRE (1) Pull the tab and open the deck board. (2) Take out the storage box. (3) Loosen the center fastener that secures the spare tire.

  • Page 57: Tire Pressure Monitoring (Warning) System (Tpms)

    Multi-Information Display (MID). If the tire pressure indicator flashes for approximately 1 minute and then remains on, take the vehicle to your local Toyota dealer. Refer to the load label on the door jamb or the Owner’s Manual for tire inflation specifications.

  • Page 58: Safety Connect

    Positioning System (GPS) data and embedded cellular technology to provide safety and security features to subscribers. Safety Connect is staffed with live agents at the Toyota response center, which operates 24 hours per day, 7 days per week. Services for subscribers include: •...

  • Page 59: Star Safety System

    ANTI-LOCK BRAKE SYSTEM (ABS) Toyota’s Anti-lock Brake System detects which wheels are locking up and limits wheel lockup by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure repeatedly for fractions of a second. This helps the tires attain the traction that current road conditions will allow, helping you to stay in directional control.

  • Page 60: Traction Control (Trac)

    Traction Control helps maintain traction on loose gravel and wet, icy, or uneven surfaces by applying brake force to the spinning wheel(s). Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip. TRAC limits engine output and applies the brakes to the spinning wheel. This transfers power to the wheels that still have traction to help keep you on track.

  • Page 62: Bluetooth ® Device Pairing Section

    BLUETOOTH DEVICE PAIRING ® SECTION Do not attempt the Bluetooth Pairing process while driving. ®...

  • Page 63: Bluetooth Pairing For Your Phone

    Bluetooth Pairing for your phone Pairing your phone is the first step in connecting with your Toyota. This pairing process is quick and easy. All you have to do is setup the phone and multimedia system to form a connection.
  • Page 64 BLUETOOTH DEVICE PAIRING ® ® Bluetooth Pairing for your phone (cont.) “Connecting” displays while Enable Notifications (text STEP 6 STEP 7 phone is forming the connection message). While pairing your to the multimedia system. phone, a message will be displayed: "You may need to allow message access on your phone."...
  • Page 65 NOTES...
  • Page 66 NOTES...
  • Page 68 Quick Reference Guide 2022 Printed in U.S.A. 10/21 toyota.com 21-MKG-15681...
