Installation guide | Remote VLT® Control Panel LCP 601 and
Mounting Kit
2 Installation
2.1 Installing the Expansion Card
Context:
SHOCK HAZARD
The soft starter contains dangerous voltages when connected to mains voltage. Attaching or removing accessories when the
soft starter is connected to mains may cause death or serious injury.
Isolate the soft starter from mains voltage before attaching or removing accessories.
-
RISK OF INJURY AND EQUIPMENT DAMAGE
Inserting foreign objects or touching the inside the soft starter while the expansion port cover is open may endanger
personnel, and can damage the soft starter.
Be careful when installing the expansion cards and make sure not to touch the inside the soft starter.
-
Procedure

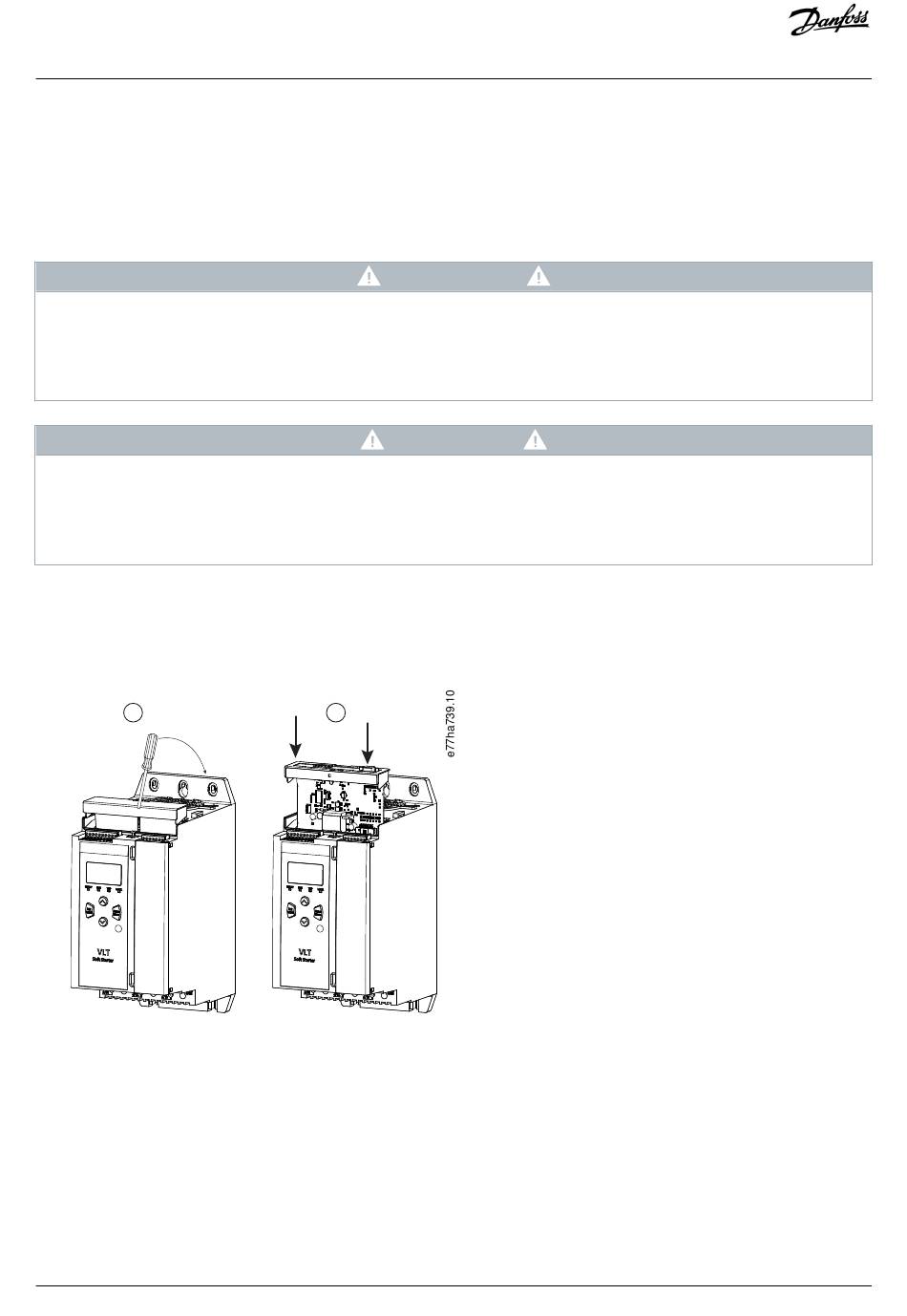

1. Push a small flat-bladed screwdriver into the slot in the center of the expansion port cover and ease the cover away from the soft
starter.
2. Line up the card with the expansion port. Gently push the card along the guide rails until it clicks into the soft starter.
1
2 | Danfoss A/S © 2018.06
W A R N I N G
C A U T I O N
2
Installation
AN265232431650en-000101 / 175R1177
