Page 1: User Manual

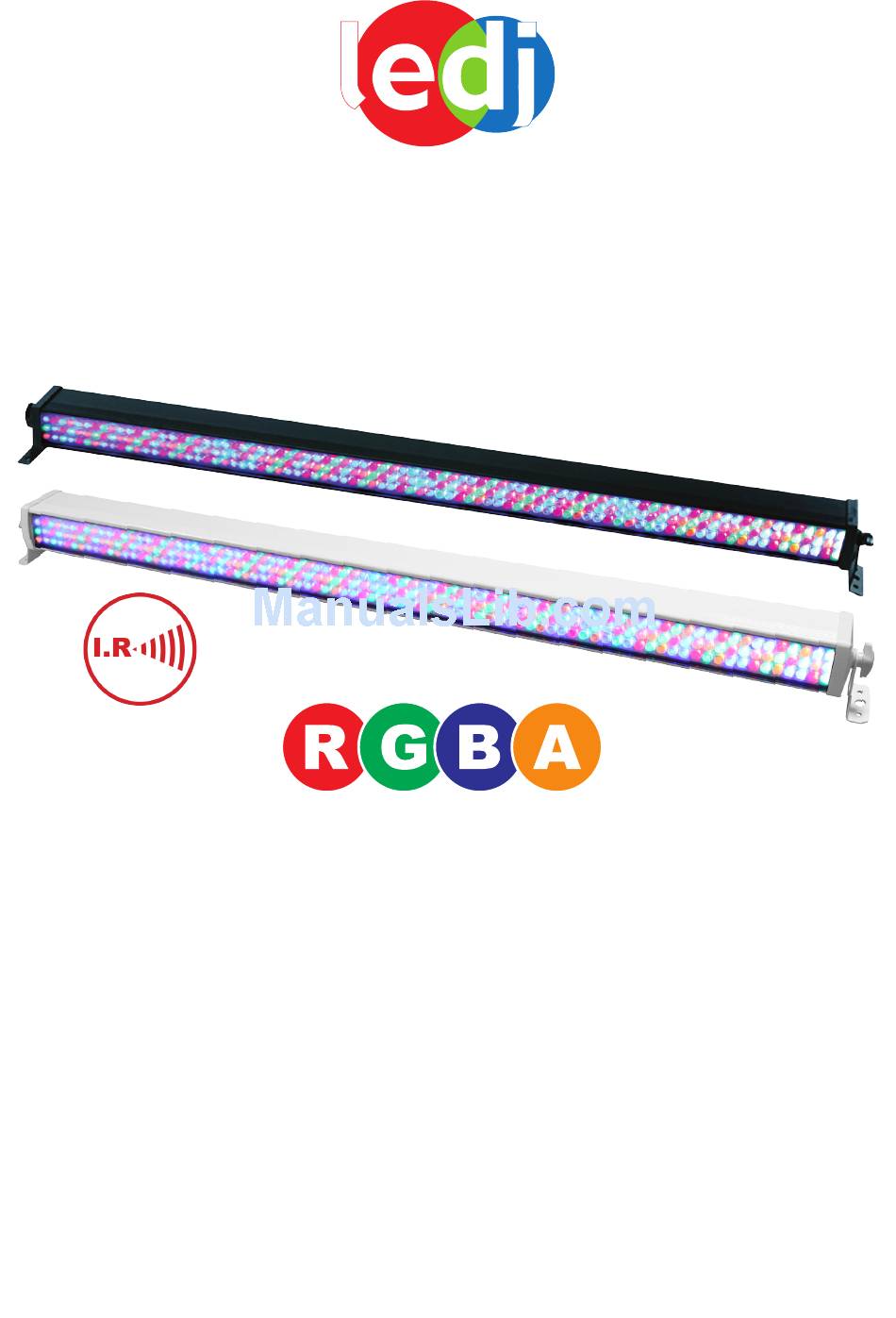

. p r o l i g h t . c o . u k RGBA SPECTRA BATTEN Order code: LEDJ96 - Black Order code: LEDJ96A - White USER MANUAL... - Page 2 LEDJ RGBA Spectra Batten Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
-
Page 3: Operating Determinations
LEDJ RGBA Spectra Batten Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 LEDJ RGBA Spectra Batten Technical specifications You should find inside the LEDJ carton the following items: 1, RGBA Spectra Batten Unit 2, Instruction manual 3, Power cable Technical Specifications: DMX channels: 2, 3, 4, 6, 7 or 19 selectable 400Hz refresh rate...
- Page 5 LEDJ RGBA Spectra Batten Operation Operation modes Sound Active mode: To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE” on the LCD screen. Now press the “ENTER” button to select the desired sensitivity level by using the “UP”...
-
Page 6: Operation
LEDJ RGBA Spectra Batten Operation Static colour selection: To select a static colour press the “MODE” button to show “01.STATIC” on the LCD screen. Now press the “ENTER” button to select the desired colour and use the “UP” and “DOWN”... -
Page 7: Button Functions
LEDJ RGBA Spectra Batten I.R. Remote Optional I.R remote functions (LEDJ90C) Button functions: The “BLACKOUT” button is used to set the LEDs into the power on or off modes. The “S PR” button is used to run the built-in programmes. To go though the built-in programmes, press the “+”... - Page 8 LEDJ RGBA Spectra Batten DMX Charts 2 channel DMX chart Channel Value Function 0-240 Master dimmer 241-255 Strobe Blackout 5-80 Colour Macro 81-150 Colour Jump 151-255 Colour Fade 3 channel DMX chart Channel Value Function 0-255 Red 0-100% Green 0-100%...
- Page 9 LEDJ RGBA Spectra Batten DMX Charts 19 channel DMX chart DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
-
Page 10: Dmx Linking
LEDJ RGBA Spectra Batten DMX Setup DMX Linking: • DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. - Page 11 LEDJ RGBA Spectra Batten Optional Case Optional case (CASE29): Notes:...
