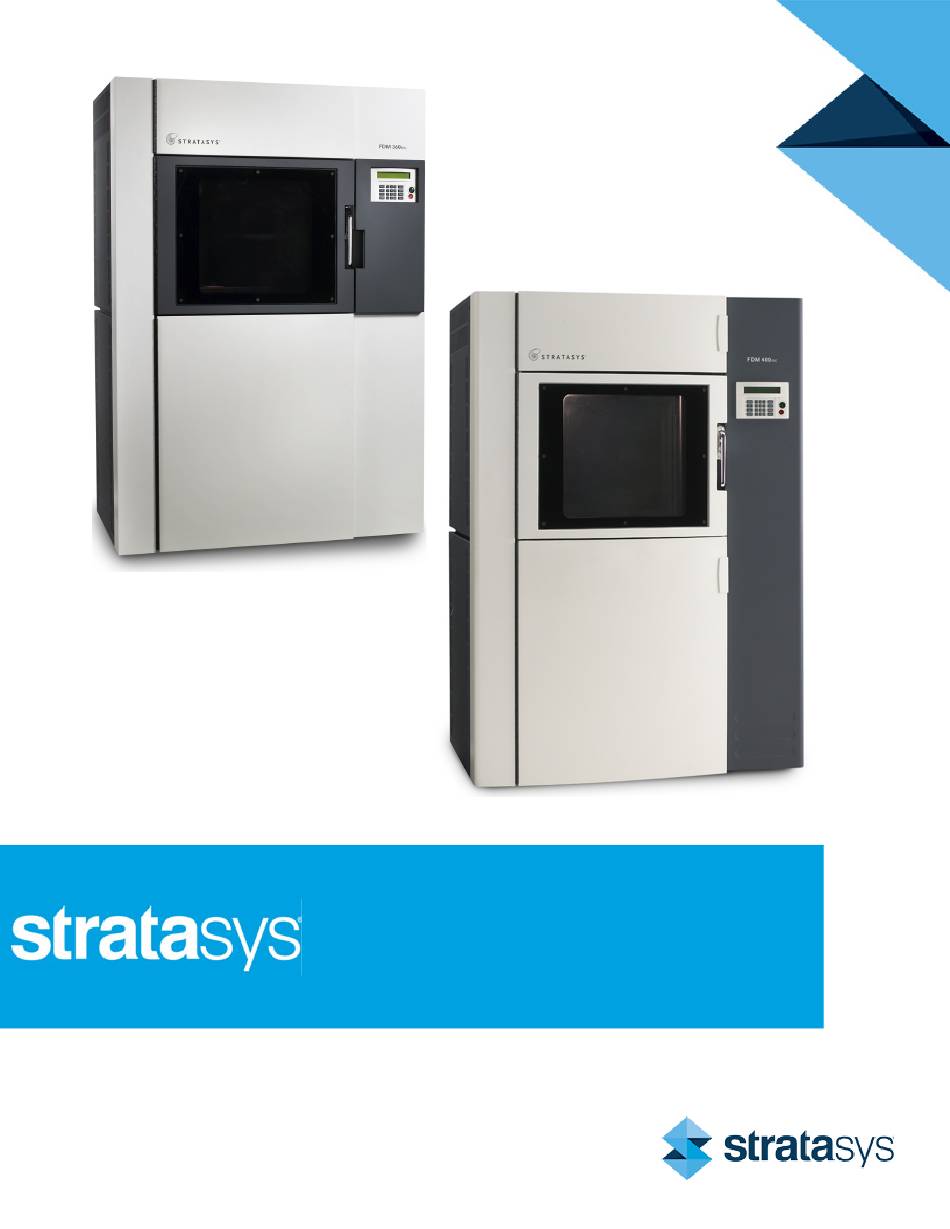

- Page 1 Fortus 360/400mc ® SITE PREPARATION GUIDE Part No. 107167-0011_REV_A...
- Page 2 The information in this document is subject to change without notice. Stratasys, Inc. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ABOUT THE FORTUS 360MC & 400MC..........1 COMPONENTS.......................... 1 System Highlights .............................. 1 HOW TO USE THIS GUIDE....................... 1 SITE PREP TASKS .................. 2 SELECTING THE SITE......................2 SPACE REQUIREMENTS ......................2 Dimensions and Weights ........................... 2 Minimum Clearances ............................ - Page 4 Remove system from shipping base ....................... 12 SERVICE CONNECTIONS ...................... 13...
- Page 5 The following basic safety tips are given to ensure safe installation, operation, and maintenance of Stratasys equipment and are not to be considered as comprehensive on matters of safety. Although the Fortus 360mc/ 400mc systems are designed to be safe and reliable rapid prototyping systems, access to areas of the system are potentially dangerous.
-
Page 6: About The Fortus 360Mc & 400Mc
The 360mc and 400mc systems incorporate the latest in innovative technologies to provide you with precise prototypes from a CAD design. Stratasys’ Fused Deposition Modeling (FDM) technology provides prototype parts, including internal features, that can be used to field-test form, fit, and function. The 360mc/ 400mc systems feature a servo/belt driven XY gantry with multiple high temperature modeling material capability. -
Page 7: Site Prep Tasks
SITE PREP TASKS SELECTING THE SITE Decide where to install the system based on the following: Space Requirements Environmental Requirements Compressed Air Specifications Electrical Requirements LAN Requirements SPACE REQUIREMENTS DIMENSIONS AND WEIGHTS Make sure that the installation site floor space can accommodate the printer’s weight and dimensions, plus required clearances (see Minimum Clearances below). -
Page 8: Minimum Clearances
MINIMUM CLEARANCES Side Clearance Minimum 30 inches (76.29 cm) on each side Rear Clearance Minimum 12 inches (30.28 cm) Front Clearance Minimum 36 inches (91.44 cm) Overhead Clearance Minimum 28 inches (71.12 cm) Figure 1: Minimum Clearances 28 inches (71.12 cm) minimum for overhead clearance 12 inches (30.28 cm) Rear... -
Page 9: Compressed Air Specifications
Connection: The air source connection must meet dimensional standard A-A-59439 for the quick disconnect female ¼-inch coupler. A standard ¼-inch quick disconnect male plug (A-A- 59439) is supplied with the system. Customer can use the Stratasys External Air Compressor unit, see “Stratasys External Air Compressor JA 100 Specifications” on page... -
Page 10: Stratasys External Air Compressor Ja 100 Specifications
Depth: 11inches (28 cm) Height: 14 inches (36 cm) Acoustic Level 50dB(A) Note: The Stratasys external air compressor option includes an air hose and must be positioned within 15 ft. (4.57m) of the system. Figure 2: Compressor and Drain Tank... -
Page 11: Electrical Requirements
20 Amp circuit. Operation of your system outside this range, even for short periods, is not recommended, as it will result in degraded system performance and component life expectancy. The ideal output voltage from the transformer is 230 VAC to 235 VAC. Stratasys Part Number Manufacturer Incoming Service Voltage... -
Page 12: Transformer Installation
TRANSFORMER INSTALLATION Warning: A licensed electrician must perform all wiring from service connect to the transformer, and from the transformer to the system - including all connectors, cables and proper strain relief. Improper installation of a transformer, or installation of a transformer not meeting system requirements, may invalidate the warranty and/or cause performance problems. -
Page 13: Lan Requirements
Figure 4: Main power connection block diagram LAN REQUIREMENTS A LAN connection is required for communication and file transfer functions. The LAN connection is a 100 base T, Ethernet protocol, RJ45 connector. One 25-ft. CAT5, 10/ • 100 base T cable is supplied with the system, located in the Startup Kit. •... -
Page 14: Receiving The System
RECEIVING THE SYSTEM INSPECT CRATE FOR DAMAGE Before opening the shipping crate, inspect the crate for signs of exterior damage. Report evidence of excessive damage to Stratasys and the shipping company. PREPARING FOR INSTALLATION REQUIRED TOOLS AND EQUIPMENT • Basic hand tools. - Page 15 Figure 5: Shipping Crate Detail FRONT Shipping Bands (5) Cover Mount Screws (12) Remove the cardboard cover. See Figure Remove the two end walls of the shipping container (two-part triple wall sleeve). See Figure Remove the two foam protectors from the top of system. See Figure...
- Page 16 Carefully remove plastic wrapping and plastic bag from the system. Caution: Use care when removing the plastic wrap to avoid scratching the system surfaces. Inspect the system exterior for dents and scratches. Immediately report any damage to Stratasys and the shipping company.
- Page 17 REMOVE SYSTEM FROM SHIPPING BASE Caution: Access the fork lift openings from the front of the system. Using a forklift, carefully raise the system vertically and remove the shipping base (see Figure 7 Figure 7: Forklift Openings Forklift openings Gently lower the system, until it rests on its casters. Roll the system into its approximate operating location.
- Page 18 SERVICE CONNECTIONS Warning: A licensed electrician must perform all wiring from service connect to the transformer, and from the transformer to the system - including all connectors, cables and proper strain relief. Comply with all applicable local and national electric codes. Do not apply power to the System until the Installation Service Representative has verified that AC service connections have been made correctly.
- Page 19 Figure 9: Line Connections...
- Page 20 Customers, resellers, and Stratasys employees are encouraged to send comments about our documentation and training to c-support@stratasys.com. We greatly value your comments, review all of them, and use them to improve subsequent releases of the documentation. In your email message please include the document title, part number (located on the front cover), and page number.
