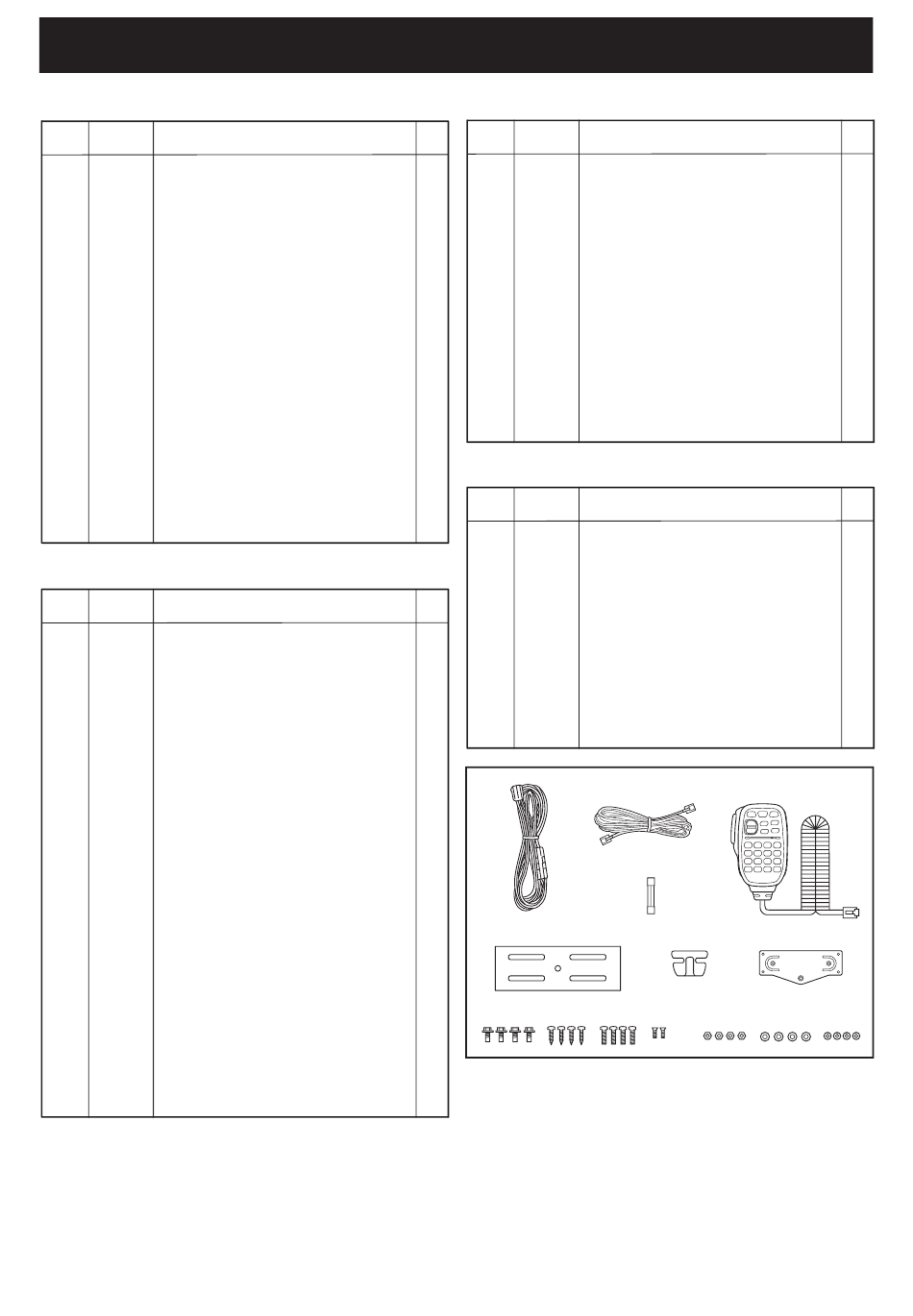

SECTION 7.
[CHASSIS PARTS]
REF ORDER
NO. NO.
J1 6510004880 MR-DSE-01
P1 8600036881 ZHR-2 (Incl. W1, 2)
SP1 2510001160 057P0802
MF1 2710000820 EFB0412VHD-6P38
W1 9016420021 23/04/140/B09/W02
W2 9016420011 23/00/140/B09/W02
MP1 8010021490 3167 CHASSIS
MP2 8210025490 3167 CHASSIS PANEL
MP3 8930078580 3167 RELEASE BUTTON
MP4 8930078640 3167 MAGNET PLATE
MP5 8510019460 3167 L-COVER (Incl. MP10)
MP6 8510019450 3167 U-COVER (Incl. MP11)
MP7 8930078590 3167 SP RUBBER
MP8 8110009020 2969 FAN COVER
MP9 8930048550 2177 CLIP
MP10 8930072260 2969 NET
MP11 8930014980 59 SARAN NET
MP12 8930071590 THERMALLY SHEET (BI)
MP13 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP14 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
MP15 8810009611 SCREW M2.6X6 ZK3
MP16 8810010141 SCREW PH M3X30 ZK3
MP19 8930079150 COIL SPRING (AL)
MP20 8930055551 THERMALLY SHEET (W)-1
MP21 8930029050 THERMAL SHEET (AL)
MP22 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT)
[CONTROL UNIT]
REF ORDER
NO. NO.
S3 2260003190 SKQYPAE010
S4 2260003190 SKQYPAE010
S5 2260003190 SKQYPAE010
S6 2260003190 SKQYPAE010
S7 2260003190 SKQYPAE010
S8 2260003190 SKQYPAE010
S9 2260003190 SKQYPAE010
S10 2260003190 SKQYPAE010
S11 2260003190 SKQYPAE010
S14 2250000660 SW-170
EP2 8930079110 SRCN-3167-SP-N-W
MP2 8210025640 3167 REAR PANEL (Incl. MP16)
MP4 8930078540 3167 POWER BUTTON
MP5 8210025480 3167 REFLECTOR
MP6 8930078550 3167 2-KEY
MP7 8930078941 3167 6-KEY-1 (Incl. MP8)
MP8 8930078570 3167 LENS
MP9 8610013980 KNOB N-383 (Incl. MP14)
MP10 8310073240 3167 KNOB PLATE
MP11 8610013990 KNOB N-384 (Incl. MP14)
MP12 8610014000 KNOB N-385 (Incl. MP14)
MP13 8930078651 3167 LCD PLATE-1
MP14 8610007420 KNOB SPRING NO.6601
MP15 6910018710 NDRDY-15060304
MP16 8830003020 BIT INSERT SB-264540-CD
MP17 8810009611 SCREW M2.6X6 ZK3
MP18 8810008991 SCREW BT B0 2X10NI-ZK3 (BT)
MP20 8310073400 3167 WINDOW PLATE (A)
8310073230 3167 WINDOW PLATE
MP21 8210025631 3167 FRONT PANEL (B)-1
8210025621 3167 FRONT PANEL (A)-1
MP23 8930079170 3167 MODULER CAP
MP24 8930079120 3167 WINDOW SHEET
MP25 8930079130 3167 LCD FILTER
MP26 8930079260 SPONGE (KN)
MP27 8930079270 SPONGE (KO)
*: Refer to "BOARD LAYOUTS" for the location.
**: Refer to "GENERAL WIRING" for the connection
Screw abbreviations

MECHANICAL PARTS

DESCRIPTION
DESCRIPTION
[EUR], [ITR], [EUR-01]
[TPE], [USA], [KOR], [AUS], [CHN], [EXP]
[EUR], [ITR], [EUR-01]
[TPE], [USA], [KOR], [AUS], [CHN], [EXP]
A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
[MAIN UNIT]
REF ORDER
QTY.
NO. NO.
J1* 6510014961 B2B-ZR-SM4-TF (LF) (SN)
1
J2 6510023110 3008L-8P8C
J3 6510025950 PCB-606 (6P6C)
1
J4 6510023161 DN-508B-6-L
J5 6450001430 HSJ1462-01-010
1
J7* 6510014961 B2B-ZR-SM4-TF (LF) (SN)
J8 6510025940 PJ-3047S
1
J24* 6510016381 52465-1071
J25 6510027260 3167 REAR CONNECTOR
1
1
W5* 7120000470 ERDS2T0
W7* 8900016020 OPC-1671
1
1
MP4* 8510018150 2969 B-VCO CASE
1
MP5* 8510016470 2775 VCO CASE
1
MP6* 8510016470 2775 VCO CASE
1
MP9* 8510019340 3179 VCO CASE
1
MP10* 8510016470 2775 VCO CASE
1
MP11 8510018160 2969 B-VCO COVER
1
MP12 8510019350 3179 VCO COVER
1
MP13 8510016460 2775 VCO COVER
1
MP14 8930060270 2633 M-SHEET
1
MP15 8930059770 2633 M-HOLDER
1
10
2
16
[ACCESSORIES]
4
2
REF ORDER
1
NO. NO.
1
MC1 (Optional) HM-133 (EX-2539 #24)
4
F1 5210000080 FGB 20A
W1 (Optional) OPC-1132A
W3 8900011281 OPC-1154A
QTY.
MP1 8010016730 150 MOBIL BRACKET (SI) (Incl. MP2)
MP2 8930041170 452 FELT (SI)
1
MP3 8820000530 FLANGE BOLT M4X8 NI
1
MP4 8810000951 SCREW BT A0 5X16 ZC3
1
MP5 8850000180 FLAT WASHER M5 SUS
1
MP6 8850000500 S-WASHER M5 SUS
1
MP7 8810000471 SCREW PH (+-) M5X12 ZC3
1
MP8 8830000250 NUT M5 SUS
1
MP9 8930007300 MICROPHONE HANGER
1
MP22 8010021511 3167 CONTROL BRACKET-1
1
MP23 8810010990 SCREW M2.6X8 ZK3
1
1
W1 W3
1
1
1
1
1
6
1
1
1
1
1
3
MP1
2
2
2
4
1
1
MP3 MP4
1
1
1
1
1
2
6
7 - 1
DESCRIPTION
DESCRIPTION
MC1
F1
MP9
MP7 MP23
MP8 MP5
QTY.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
2
2
QTY.
1
1
1
1
1
2
4
4
4
4
4
4
1
1
2
MP22
MP6
