74 C 4: M
HAPTER AINTENANCE

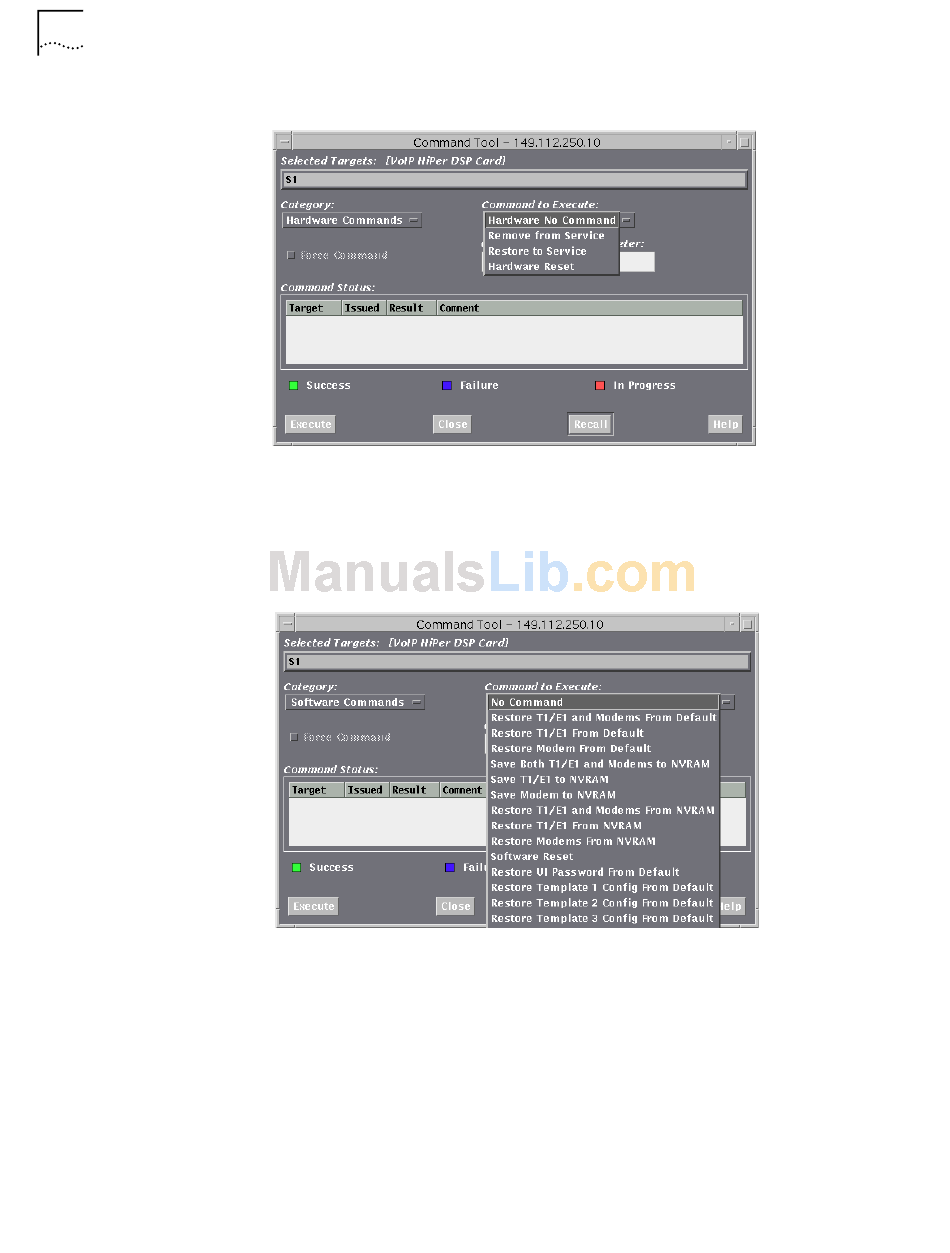

Figure 48 Example HiPer DSP Hardware Commands

Figure 49 shows the software commands that can be executed for the HiPer
DSP card.

Figure 49 Example HiPer DSP Software Commands

1 Select the type of command you want to perform from the Command to
Execute or Category drop-down boxes.
2 Click Execute at the bottom of the window.
3 After executing the command, compare the results with the color-coded key
below the status box.
