40 C 2: C
HAPTER ONFIGURATION
Editing a Threshold
Parameter

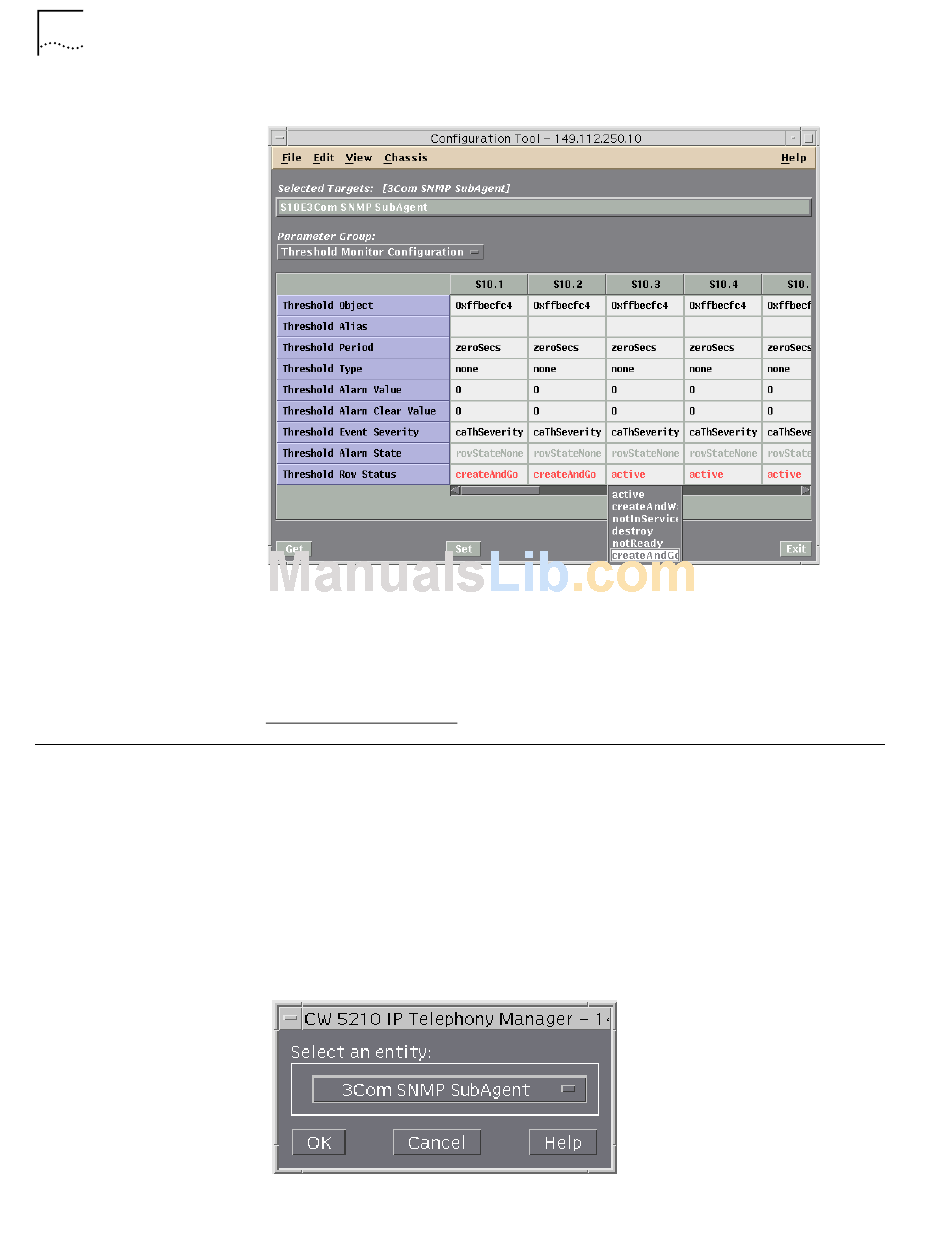

Figure 14 Adding Threshold Parameters Window

7 Click Set.
8 If you changed the threshold parameters on the Gatekeeper, SIP Proxy Server,
or any of the Back-end Servers, you must restart the SNMP agent. Refer to
Restarting Other Entities
To edit a parameter that is being monitored:
1 Open a console window for the device where the threshold is going to be
edited. (For the Media Gateway, you need to select the edge server card.)
2 From the Configuration menu, click Programmed Settings.
3 Select the 3COM SNMP SubAgent from the Select Entity window (For
Back-end Servers and the Gatekeeper, select 3Com SNMP Agent.) and click
OK.

Figure 15 Selecting an Entity Window

in Chapter 4 for more information.
