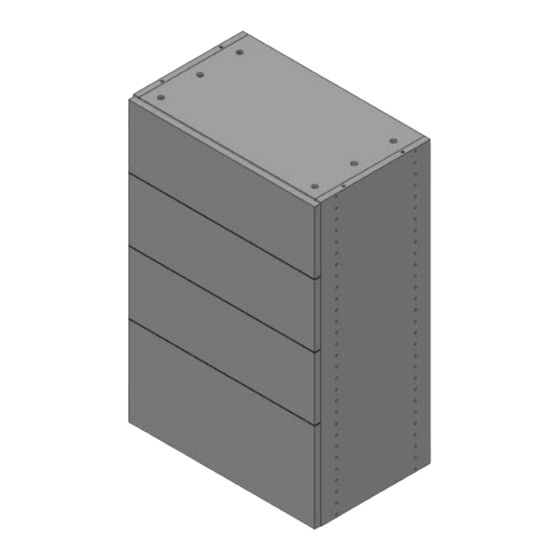

Modular Closets D18 Assembly Instructions

Parts included:

• 2 Side panels (A)

• 2 Top/bottom panels (B)

• 2 Rear hanging rails (C1)

• 3 Drawer support panels (C2)

Assembly Steps:

1. Fasten cam posts into the eleven (11) pre drilled holes of each interior of the

2. Insert Cam Locks into top/bottom (B), and rear support panels (C2).

3. Connect top/bottom panels

(A)

aligning the dowels and cam post/cam lock. Be sure that the cam lock arrow is facing outward.

4. Repeat step for the second side panel. Construction now complete.

Assembly Instructions - Drawer Unit

(D18, D24, and D30)

• 54 Cam locks

• 54 Cam posts

• 4 Dowels

(B)

and rear support panels (C2), and drawer support panels

www.modularclosets.com •

Tools required:

• Phillips screwdriver

Optional:

• Power screwdriver

• Mallet

(A)

side panels.

Page 1 of 2

(C1)

to one of the side panel
