Reference Information, cont'd

Top Plate Dimensions

The cut-out template (figure A-2) is not to scale and is for
reference only. If you choose not to use Extron's routing
template (chapter 2, Installation), the dimensions shown on the
table on page A-7 will help you properly prepare the mounting
surface. The surface cut-out area dimensions for the template
are C and D.
A
CUT-OUT TEMPLATE FOR
EXTRON'S HSA 800 & 802
C
E
Template for cut-out
Lifting panel
Top panel
SURFACE CUT-OUT AREA = C x D
G H

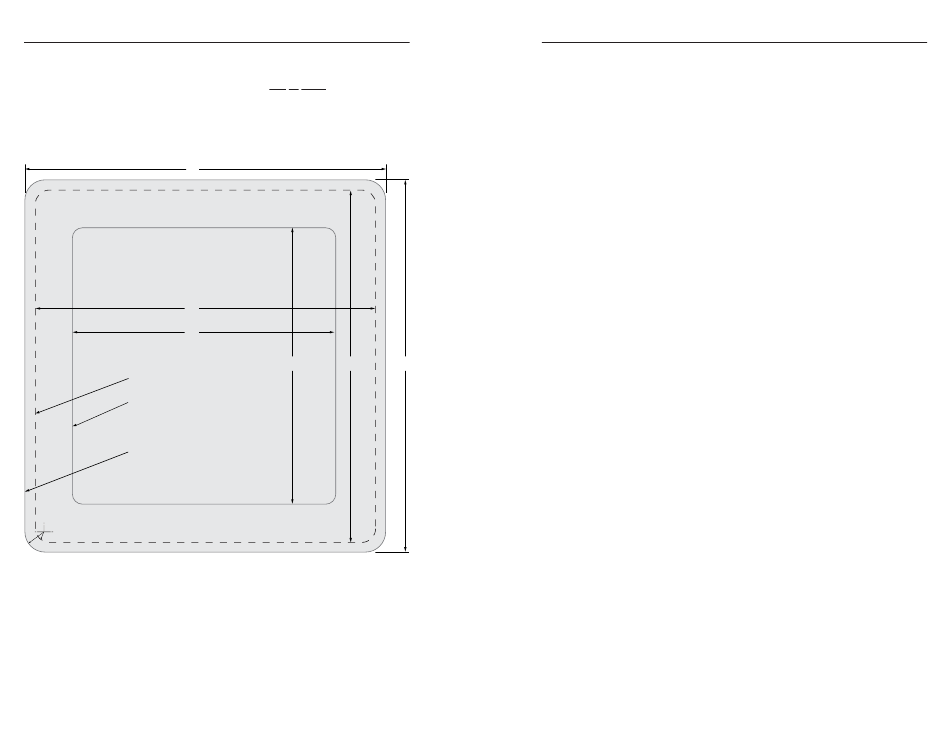

Figure A-2 — HSA 800/802 cut-out template
For a full size paper template, visit the Extron Web site
(http://www.extron.com) or call the Extron S
Support Hotline.
www.camboard.de
A-6 Surface Access Products • Reference Information
CAMBOARD Electronics
F D B
3
Sales & Technical
Tel. 07131 911201
Fax 07131 911203
HSA 800/802
A 8.47" (21.5 cm)
B 8.75" (22.2 cm)
C 7.97" (20.2 cm)
D 8.25" (21.0 cm)
E 6.2" (15.7 cm)
F 6.4" (16.3 cm)
G 0.5" (1.3 cm)
H 0.25" (0.6 cm)
