Reference Information
Specifications
General
Rack mount .................... No, but furniture mountable
Enclosure type ............... Metal
Enclosure approximate dimensions
Top pla te (outer rim) ................................................. 8.5" W x 8.8" D
Top plate (lifting plate) ............................................... 6.2" W x 6.5" D
Clamshell (figure A-1) ................................................ A = 7.0" (17.8 cm)
A

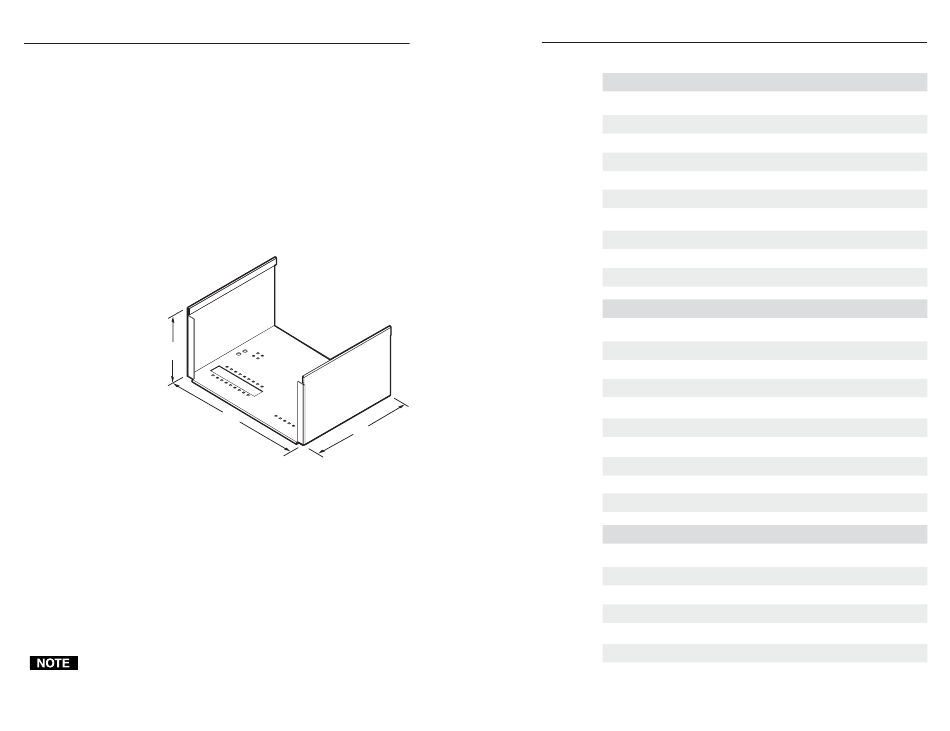

Figure A-1 — Clamshell dimensions
Product weight
HSA 800 ........................ 8.6 lbs (3.9 kg)
HSA 802 ........................ 8.8 lbs (4.0 kg)
Shipping weight
HSA 800 ........................ 14 lbs (6.4 kg)
HSA 802 ........................ 15 lbs (6.8 kg)
Listings ........................... UL, CUL
Compliances .................. CE
MTBF .............................. Gas lift .............. 100,000 cycles
Warranty ........................ 3 years parts and labor
Specifications are subject to change without notice.
www.camboard.de
A-2 Surface Access Products • Reference Information
(21.5 cm W x 22.2 cm D)
(15.8 cm W x 16.5 cm D)
B = 8.25" (21.0 cm)
C = 11.0" (27.9 cm)
B
C
Tel. 07131 911201
Fax 07131 911203
CAMBOARD Electronics
Part Numbers
HSA 800/802 US
HSA 800 Enclosure (black anodized)
HSA 800 Enclosure (brushed aluminum)
HSA 800 Enclosure (polished aluminum)
HSA 800 Enclosure (brushed brass)
HSA 800 Enclosure (polished brass)
HSA 802 Enclosure (black anodized)
HSA 802 Enclosure (brushed aluminum)
HSA 802 Enclosure (polished aluminum)
HSA 802 Enclosure (brushed brass)
HSA 802 Enclosure (polished brass)
HSA 800/802 IEC
HSA 800 IEC Enclosure (black anodized)
HSA 800 IEC Enclosure (brushed aluminum)
HSA 800 IEC Enclosure (polished aluminum)
HSA 800 IEC Enclosure (brushed brass)
HSA 800 IEC Enclosure (polished brass)
HSA 802 IEC Enclosure (black anodized)
HSA 802 IEC Enclosure (brushed aluminum)
HSA 802 IEC Enclosure (polished aluminum)
HSA 802 IEC Enclosure (brushed brass)
HSA 802 IEC Enclosure (polished brass)
HSA 800/802 EU
HSA 800 EU Enclosure (black anodized)
HSA 800 EU Enclosure (brushed aluminum)
HSA 800 EU Enclosure (polished aluminum)
HSA 800 EU Enclosure (brushed brass)
HSA 800 EU Enclosure (polished brass)
HSA 802 EU Enclosure (black anodized)
HSA 802 EU Enclosure (brushed aluminum)
