Summary of Contents for Equinox Systems ISPnano IV-ATE Series

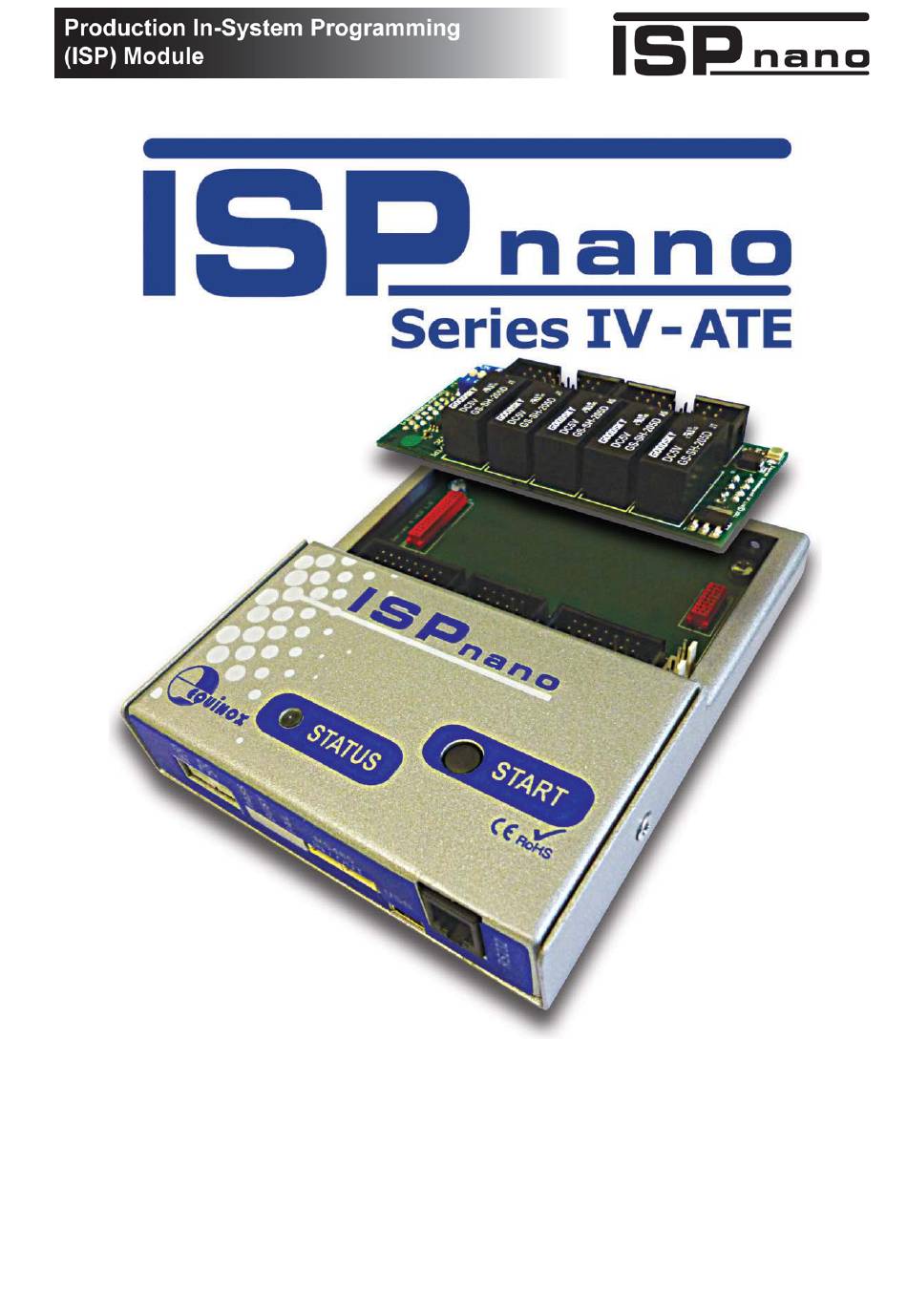

- Page 1 ISPnano Series IV - ATE Production ISP Programmer Hardware User Manual ISPnano Series IV-ATE Programmer - User Manual - V1.04 – 21/02/2014...
- Page 2 ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014...
-
Page 3: Table Of Contents
Contents Copyright Information ......................iv Equinox Warranty Information ..................... v Electromagnetic Compatibility (EMC) Compliance ............vii Technical Support....................... viii Product Documentation and Software ................ix Overview ..........................ix Documentation and software for the ISPnano programmer ..........xi Device algorithm - Application notes .................. xi Programmer related - Application notes ................xii 1.0 Overview ........................... -
Page 4: Copyright Information
Copyright Information Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. The software described in this document is furnished under license agreement or nondisclosure agreement and may be used or copied only in accordance with the terms of the agreement. -
Page 5: Equinox Warranty Information
Equinox Warranty Information This product is guaranteed by Equinox Technologies UK Limited for a period of 24 months (2 years) after the date of purchase against defects due to faulty workmanship or materials. The guarantee covers both parts and labour. This is a ‘Return to manufacturer’ warranty. The customer is responsible for all shipping + customs clearance costs for returning the programmer to Equinox and for Equinox returning the programmer back to the customer. - Page 6 Disclaimer Whilst every effort has been made to ensure that programming algorithms are correct at the time of their release, it is always possible that programming problems may be encountered, especially when new devices and their associated algorithms are initially released. It is Equinox’s Company Policy to endeavour to rectify any programming issues as quickly as possible after a validated fault report is received.
-
Page 7: Electromagnetic Compatibility (Emc) Compliance
Electromagnetic Compatibility (EMC) Compliance The ‘ISPnano Programming Module’ is a CE Approved Product. It is designed for use in an ESD controlled environment i.e. development or production. This means, therefore, that the user must ensure that there is no possibility of damage from electrostatic discharge (ESD). Since the devices and equipment to which this product is likely to be connected may well themselves be susceptible to ESD, this should not pose any difficulty. -
Page 8: Technical Support
Technical Support It is often the case that users experience problems when installing or using a product for the first time. If you have a technical support problem, please consult the following list for help: ► User Manual ► Application Notes ►... -
Page 9: Product Documentation And Software
Product Documentation and Software Overview This manual provides an overview of the contents of the ‘ISPnano Programming Range’ plus associated hardware and software. References may be made to other hardware and software products which are not covered in detail in this manual. Please refer to the table below for a list of sources of documentation and/or browse to http://www.equinox-tech.com/products/details.asp?ID=1440&displ=tl Software:... - Page 10 Upload Wizard - Standalone Project Upload Utility This software utility is used to upload Programming Projects to any Equinox programmer. These projects can then be used in Standalone Mode, i.e. without a PC. • Please follow the on-screen instructions within the Upload Wizard utility itself.
-
Page 11: Documentation And Software For The Ispnano Programmer
Documentation and software for the ISPnano programmer In line with our policy of continuous improvement, the software and associated documentation for this product are updated on a regular basis. You can download the latest software, firmware, User Manuals and application notes for the ISPnano programmer from the following page on the Equinox website: http://www.equinox-tech.com/products/details.asp?ID=1440&displ=tl You may be asked to register / log in to download some of these files. -
Page 12: Programmer Related - Application Notes
Programmer related - Application notes The table below lists the Application Notes available for the ISPnano programmer range which describe the USB driver installation, the different control methods available, firmware update procedure and ‘AVR Oscillator Calibration’ procedure. Application Description Note AN109 Remote Application Control of Equinox ISP Programmers using ISP-PRO Utility AN110... -
Page 13: Overview
1.0 Overview The "ISPnano Series IV ATE" is a state-of-the-art ISP Programmer designed for high-speed In- System Programming (ISP) of FLASH Microcontrollers and Serial Memory devices in a production environment. It has been specially developed to allow simple integration with Automatic Test Equipment (ATE) systems and In-Circuit Testers (ICTs) used in high-volume production systems. - Page 14 A dedicated 'ATE Interface' also allows the ATE / ICT to control the operation of the programmer in 'Standalone Mode' (no PC required). ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014...
-
Page 15: Main Features
1.1 Main Features Features • Integrated ‘ISPnano Series IV ATE’ programmer (see separate features for this module) • Compact enclosure featuring integrated programmer and interchangeable ‘I/O Connection Module’ • All programmer I/O signal lines are isolated from both the Target System (DUT) and external test equipment e.g. -
Page 16: Front Panel Layout
1.2 Front panel layout The layout of the front panel of the programmer is shown below. Connector Name Description / comment DC Power Input DC Power Input to power the programmer • Voltage range: 9.0 – 24.0 V DC (right-hand pin positive) EXTERNAL TARGET VCC EXTERNAL TARGET VCC INPUT •... -
Page 17: Rear Panel Idc Connector Ports And Signal Routing
1.3 Rear Panel IDC Connector Ports and signal routing The ‘ISPnano Series IV ATE’ programmer features three ‘IDC Ports’ as detailed in the illustration below. The purpose of each connector is described in the table below. Connector Connector Description name type Target ISP Port This port connects to the Target Device (UUT) on the Target... -
Page 18: Getting Started Guide
2.0 Getting Started Guide 2.1 Overview This section of the manual details how to power the programmer and connect it to the PC. 2.2 System contents The ‘ISPnano Series 4 ATE’ programmer is available as the ‘ISPnano Series IV ATE’ - Programmer Module only or as a ‘Programmer Kit’... -
Page 19: Hardware Setup
2.3 Hardware setup The hardware setup instructions for the ‘ISPnano Series IV ATE’ programmer are detailed below. 2.3.1 Powering the programmer Connect a suitable power supply to the ‘DC-IN’ connector of the programmer This powers the ‘Programmer internal electronics’ Programmer Power Supply +9.0V to +24.0V @ 150mA You may use the ‘Mains DC power supply’... -
Page 20: Connecting The Programmer To The Pc
2.3.3 Connecting the programmer to the PC The programmer can be controlled from a PC using any one of the ‘Communications Ports’ detailed in the illustration / table below. Key No Function Further description RS-485 Input (& output) RS-485 - Input/output. Connector: 5-pin 2.5mm Molex USB Port USB - Input/output Connector: miniUSB connector RS-232 Communications Port... -
Page 21: Power Supply Requirements
3.0 Power Supply requirements 3.1 Overview The ‘ISPnano Series IV ATE’ programmer only requires a single power supply which is used to power both the ‘programmer electronics / Target System’ and the ‘relay coils’. Please refer to the table below for the details of the power supply requirements. Voltage Current Designator... -
Page 22: Power Supply Connections
3.2 Power Supply connections The ‘ISPnano Series IV ATE’ programmer requires a separate +12V power supply to power the RELAY coils. Programmer Power Supply +9.0V to +24.0V @ 150mA min Instructions: • Connect a +9.0V to +24.0V power supply to the ‘DC IN’ connector. 3.3 Programmer Power Supply recommendations The ‘DC-IN’... -
Page 23: Programmer / Ate Signal Routing
4.0 Programmer / ATE Signal routing 4.1 Overview The ISPnano Series 4 programmer is designed to accept a single user-replaceable ‘I/O Connector Module’. This plug-in connection module concept allows a DUT to connect to the module instead of the programmer directly. In the event of a programmer failure, the module can simply be unplugged from the programmer and then programmer replaced without having to re-wire the fixture. -
Page 24: Inserting The I/O Connector Module
4.2 Inserting an ‘I/O Connector Module’ The ‘I/O Connector Module’ is programmer is capable of isolating the programmer from the Target system when not in programming mode. ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014... -
Page 25: I/O Connector Module Overview
4.2 I/O Connector Module overview Key No Function Further description DIP-Switch Configures pull-up resistors for I2C, PDI and TPI Target Connector Connect to Target System (DUT) Target System signals and power connections ATE Connector Connect to external ATE or ICT External ATE / ICT signals and power connections Relay Power indicator Illuminates when the relay coils are energised... -
Page 26: Connecting The Dut And Ate To The 'I/O Connector Module
4.3 Connecting the DUT and ATE to the ‘I/O Connector Module’ The instructions below detail how to connect the ‘Target System’ and external ATE / ICT equipment to the ‘I/O Connector Module’. Instructions: • Connect the ‘Target System’ (UUT) to the 16-way ‘Target ISP Port’. •... -
Page 27: Dut Routed To External Ate System (Default)
4.4 DUT routed to External ATE System (default) When the programmer is powered up but not running a ‘Programming Project’, the relay coils are not energised so the ‘Target System (UUT)’ connections are routed via the ‘Target ISP Port’, through the relays to the ‘ATE Port’ where they then connect to the ‘External ATE / ICT System’. The signal direction depends on the particular signal I/O line, GROUND or power line being routed. -
Page 28: Dut Routed To External Ate System - Pin Routing
4.5 DUT routed to External ATE System – Pin routing By default the RELAYs are OFF and the ‘ATE Port’ signals are routed to the ‘Target ISP Port’ pins as detailed in the table below. Target ISP ATE Port Programmer Port Notes Pin name... -
Page 29: Dut Routed To Internal Programmer (Relays On)
4.6 DUT routed to internal programmer (RELAYs ON) When the relay coils are energised, the ‘Target System (UUT)’ connections are routed to the ‘Internal Programmer’. The ‘External ATE / ICT System’ is at this point completely disconnected (out of circuit). This allows the programmer to power up and program the ‘Target Device’ without any problems related to the external system loading the power or programmer signal lines. -
Page 30: Relay Control Configuration
5.0 Relay Control Configuration The relays on the ‘I/O Connector Module’ are controlled by the programmer by default. The relays are automatically energised whenever a programming operation commences and remain energised until the programming operation is completed. This is the preferred setup as it means that the programmer is only ever connected to the DUT when in programming mode. - Page 31 If ‘REMOTE’ relay control is selected, then the ????? pin on the 10-way Remote Control Port (J14) is used to control the relays. ISPnano Series IV-ATE Programmer - User Manual - V1.04 – 21/02/2014...
-
Page 32: Programmer Mounting Arrangements
6.0 Programmer mounting arrangements 6.1 Main programmer mounting ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014... -
Page 33: Mounting Bracket Overview
6.2 Mounting bracket overview Standard 'L' Bracket ISPnano Series IV-ATE Programmer - User Manual - V1.04 – 21/02/2014... - Page 34 'L' Bracket V2 ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014...
- Page 35 'L' Bracket V3 ISPnano Series IV-ATE Programmer - User Manual - V1.04 – 21/02/2014...
- Page 36 Connecting and ISPnano programmer to a test fixture using a Standard 'L' Bracket and Spacers. ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014...
- Page 37 ISPnano S4-ATE connected to a bed of nails. ISPnano S4-ATE connected to a Lid Switch. ISPnano Series IV-ATE Programmer - User Manual - V1.04 – 21/02/2014...
- Page 38 ISPnano S4-ATE Daisychained in a test fixture. ISPnano S4-ATE with measurements. ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014...
- Page 39 ISPnano S4-ATE fitted into a test fixture. ISPnano S4-ATE Daisychained using an RS485 cable. ISPnano Series IV-ATE Programmer - User Manual - V1.04 – 21/02/2014...
- Page 40 ISPnano S4-ATE Target I/O Signals ISPnano Series IV-ATE Programmer - User Manual – V1.04 – 21/02/2014...
