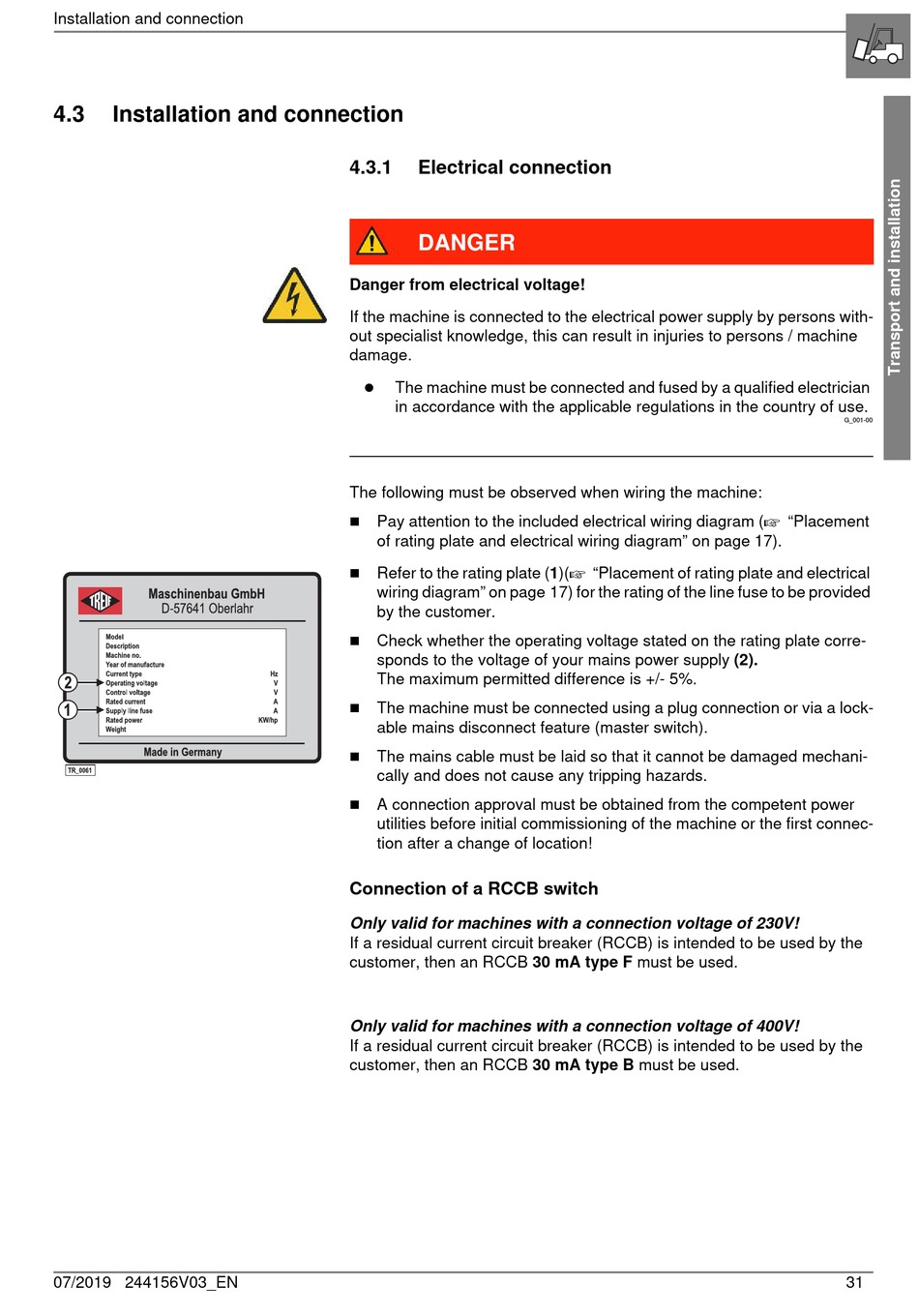

Installation and connection

4.3 Installation and connection
07/2019 244156V03_EN
4.3.1

Electrical connection

DANGER
Danger from electrical voltage!
If the machine is connected to the electrical power supply by persons with-
out specialist knowledge, this can result in injuries to persons / machine
damage.

The machine must be connected and fused by a qualified electrician
in accordance with the applicable regulations in the country of use.
The following must be observed when wiring the machine:

Pay attention to the included electrical wiring diagram ( "Placement
of rating plate and electrical wiring diagram" on page 17).

Refer to the rating plate (1)( "Placement of rating plate and electrical
wiring diagram" on page 17) for the rating of the line fuse to be provided
by the customer.

Check whether the operating voltage stated on the rating plate corre-
sponds to the voltage of your mains power supply (2).
The maximum permitted difference is +/- 5%.

The machine must be connected using a plug connection or via a lock-
able mains disconnect feature (master switch).

The mains cable must be laid so that it cannot be damaged mechani-
cally and does not cause any tripping hazards.

A connection approval must be obtained from the competent power
utilities before initial commissioning of the machine or the first connec-
tion after a change of location!
Connection of a RCCB switch
Only valid for machines with a connection voltage of 230V!
If a residual current circuit breaker (RCCB) is intended to be used by the
customer, then an RCCB 30 mA type F must be used.
Only valid for machines with a connection voltage of 400V!
If a residual current circuit breaker (RCCB) is intended to be used by the
customer, then an RCCB 30 mA type B must be used.
