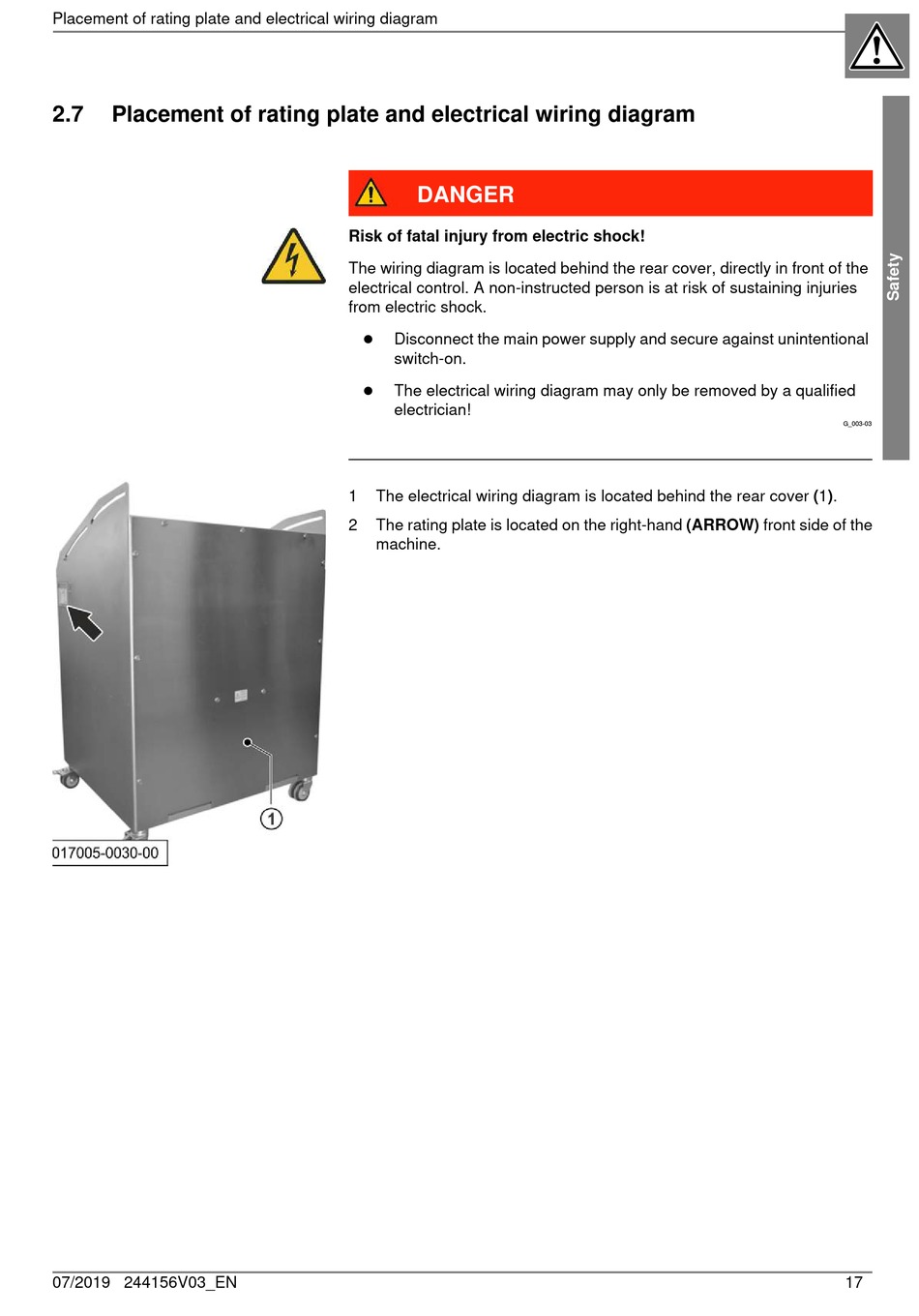

Placement of rating plate and electrical wiring diagram
2.7
Placement of rating plate and electrical wiring diagram
07/2019 244156V03_EN
DANGER
Risk of fatal injury from electric shock!
The wiring diagram is located behind the rear cover, directly in front of the
electrical control. A non-instructed person is at risk of sustaining injuries
from electric shock.
Disconnect the main power supply and secure against unintentional
switch-on.
The electrical wiring diagram may only be removed by a qualified
electrician!
1
The electrical wiring diagram is located behind the rear cover (1).
2
The rating plate is located on the right-hand (ARROW) front side of the
machine.
G_003-03
17
