QuickSTART
This document provides a brief introduction and overview of the CrossLink: LIF-MD6000
Master Link Board, Rev C.
Check Kit Contents
1
The CrossLink: LIF-MD6000 Master Link
Board includes the following items:
LIF-MD6000 Master Link Board
„
SMA I/O Link Board
„
Breakout I/O Link Board
„
USB cable for programming
„
12 V AC adapter power supply
„
Quick Start Guide
„

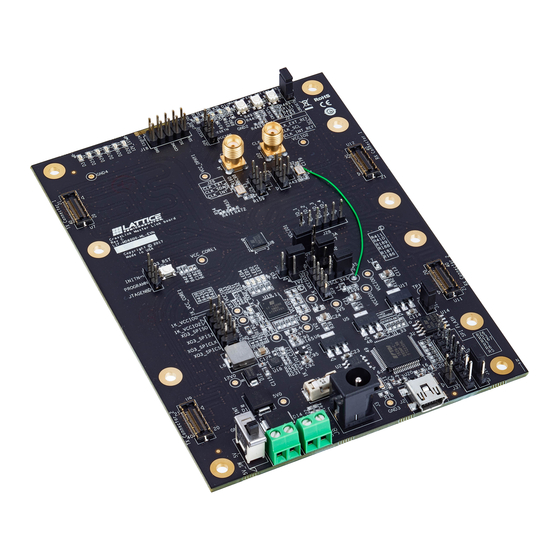

The CrossLink: LIF-MD6000 Master Link Board
is an evaluation and development platform for the
CrossLink (LIF-MD6000) device. The board also
features a MachXO3LF-1300E FPGA.
In addition to general-purpose resources, the board includes two Tx and two Rx
connectors on the edges of the board for building CrossLink video bridging solutions.
For more information on these and all board features, see the Lattice website at
www.latticesemi.com/masterlink.
To develop your own designs, you can use the Lattice Diamond software, available at
www.latticesemi.com/diamond.
To re-program the board, you will need Diamond Programmer version 3.7 or later.
Diamond programmer can be downloaded from the Lattice web site at
www.latticesemi.com/programmer.
Check Jumper Settings
2
JUMPER DESCRIPTION
J7 SW2 selector
SPI/I
J16 selector for
LIF-MD6000
J19 SPI Flash chip select
VCCIO1 Bank
J24
voltage selector
VCCIO2 Bank
J25
voltage selector
Internal/External clock
J26
and I
Note: SW1 is the master power switch. Switch is ON when moved toward the edge of
the board.
DEFAULT
SETTINGS
SHORT 1-2
C programming
2
SHORT 1-2
(SPI)
SHORT 1-2
SHORT 2-3
(3.3 V)
SHORT 2-3
(3.3 V)
OPEN
C SDA Mux
2
CrossLink: LIF-MD6000
Master Link Board
JUMPER DESCRIPTION
Internal/External
J27 reference clock and I
SCL Mux
Reset signal voltage
J29
selector
SPI/I C programming
2
J35
selector for LIF-MD6000
SPI/I C programming
2
J36 selector for
MachXO3LF-1300E
J37 FT2232H reset
DEFAULT
SETTINGS
C OPEN
2
OPEN
SHORT
1-2 (SPI)
SHORT
1-2 (SPI)
OPEN
