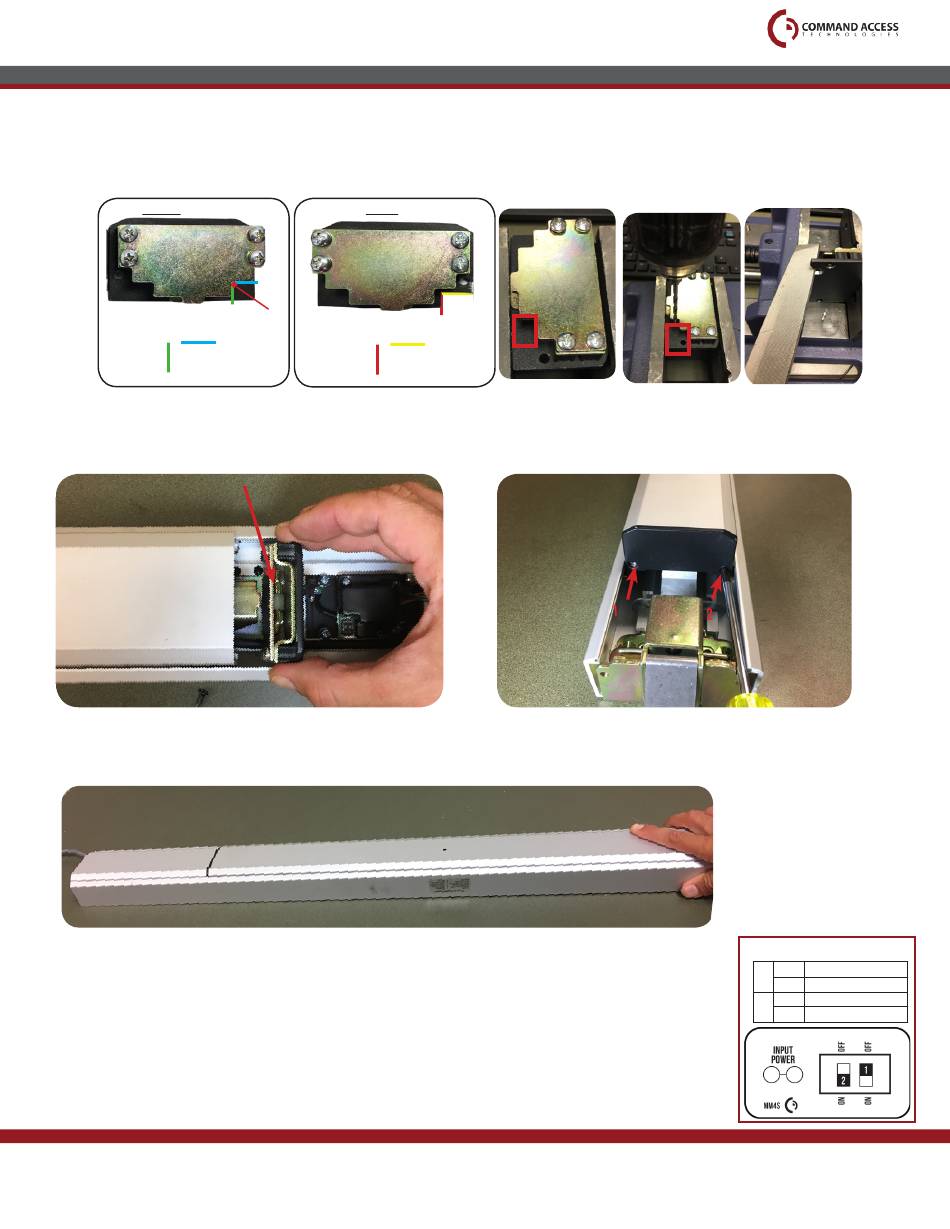

Command access MLRK1-JAC12 Instructions Manual page 7

3.
Turn over BACK push pad end cap over and start a pilot hole beneath the bottom right hand corner
(see measurements below). Use the gold bracket as a guide. Once your hole is drilled use your
preferred method to clear out the remaining debris and file to clean up the edges.
BEFORE
PILOT HOLE
PILOT HOLE IN INCHES (")
1/2"
1/4"
4.
1. Slide BACK push pad end cap into channel before re-installing to push pad.
2. Re-install (2) screws on BACK & FRONT push pad end caps.
5.
1. Slide filler plates on and plug into power.
2. Set "Push-to-Set" and once you found the correct location, turn PTS switch to OFF position,
remembering to turn the Programming Switch to the off position when completed.
Select your preferred torque mode (ships in standard torque). Press the
Step 1 -
device push pad to the desired setting. (We recommend to fully depress
and release 5%, giving the device room for changing door conditions.)
While depressing the push pad, apply power. (i.e. presenting the credential
Step 2 -
to the reader).
Continue to keep the pad depressed, the device will beep 6 times. After the
Step 3 -
beeps have stopped, release the pad and the adjustment is now complete.
If not to your liking repeat the 3 steps.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
AFTER
AMOUNT REMOVED IN INCHES (")
5/8"
5/16"
MM4 SWITCHES
OFF
1
STANDARD TORQUE
ON
HIGH TORQUE
ON
2
PTS PROGRAMMING ON
OFF
PTS PROGRAMMING OFF
