STEP 1
-
Disassemble Exit Device

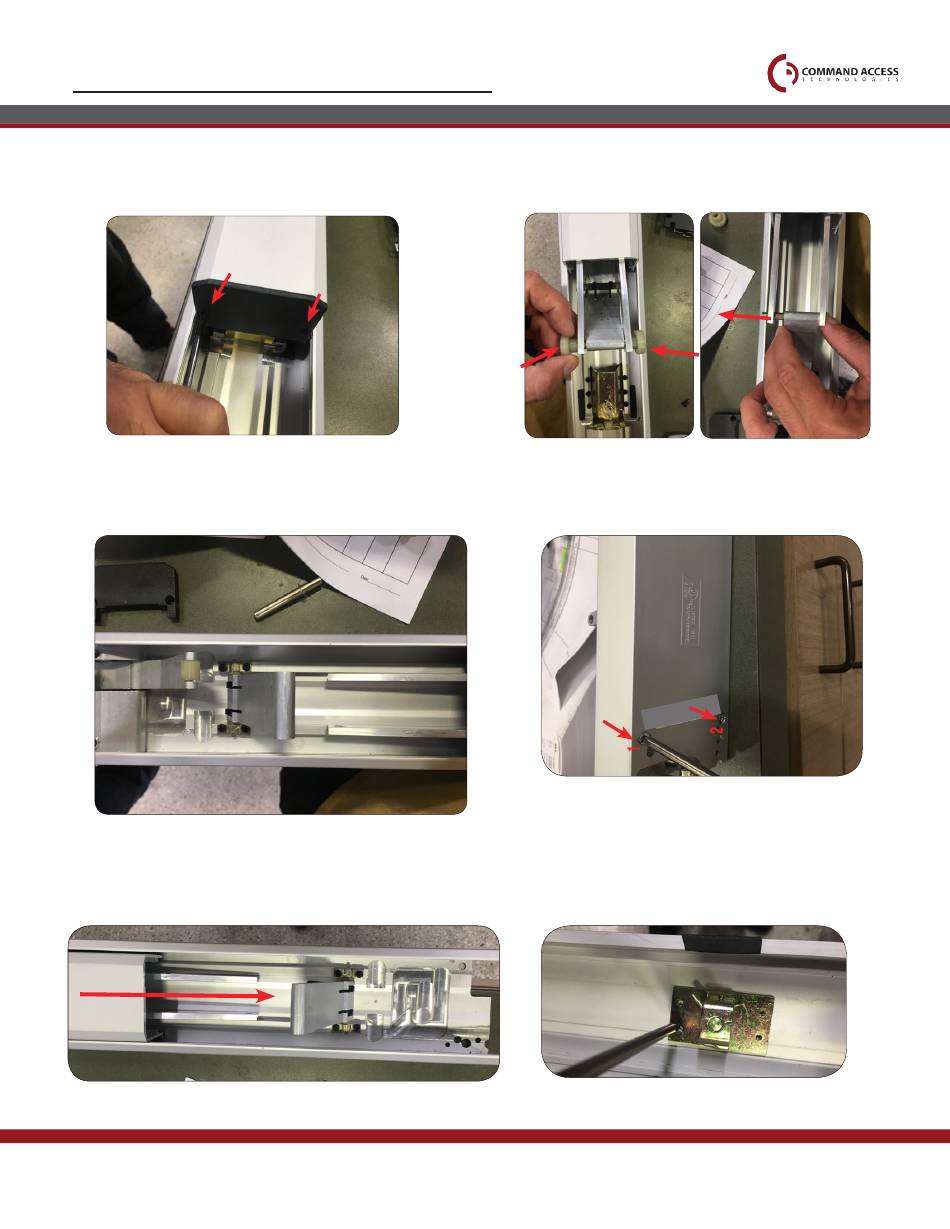

1.
Remove (2) screws on push pad end caps from front & back.
1
3.
Once connecting rods are disconnected from front activating bracket
flip device over.
5.
Slide push pad forward to remove from device.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
2
2.
Pull back push pad, exposing the front activating
bracket. Remove guides and roll pin from activating bracket.
4.
Remove head assembly by removing (2) screws.
6.
Underneath pushpad remove dogging assembly.
