Step 3 - Reassemble Exit Device - Command access MLRK1-JAC12 Instructions Manual

19.

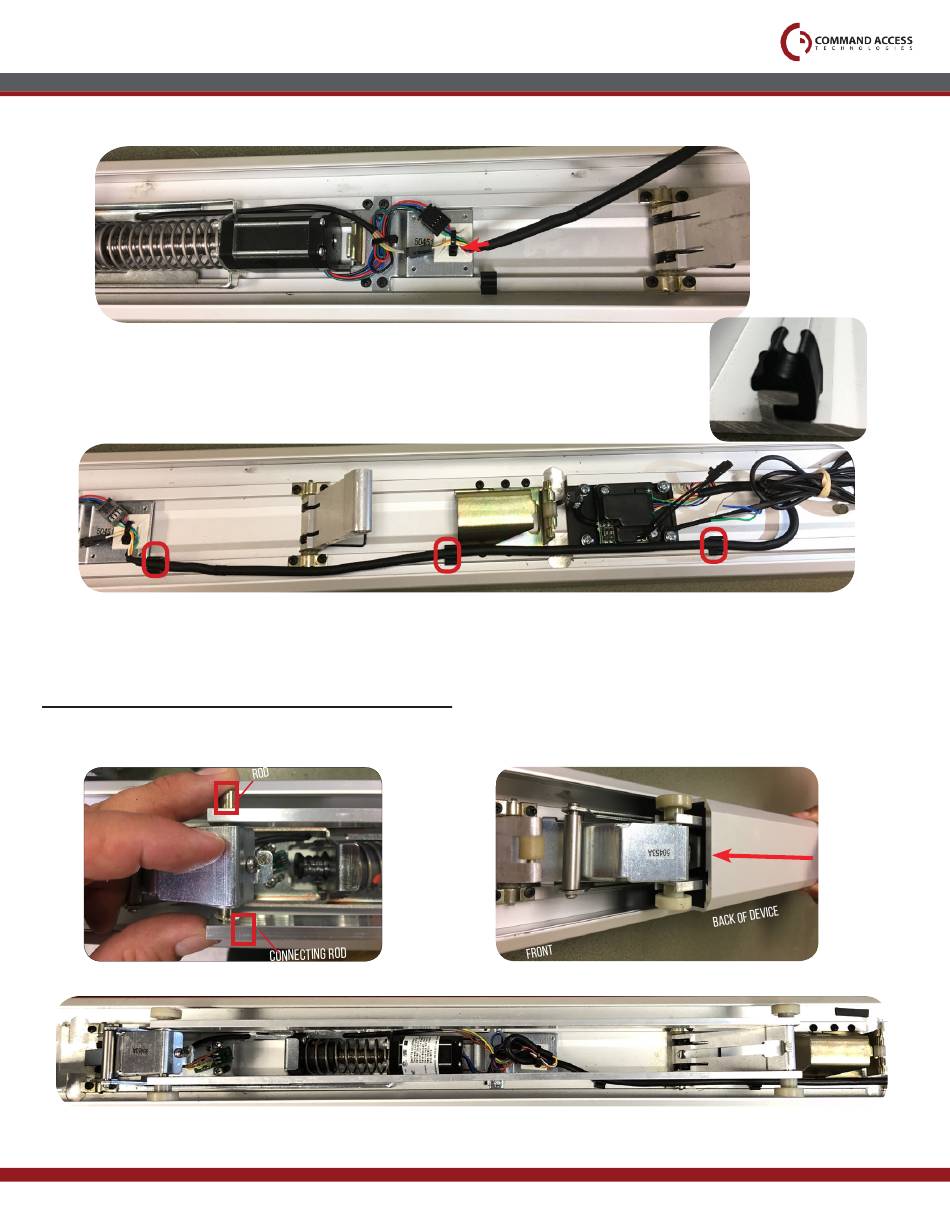

Connect MM4 Cable. Attach the strain relief and secure MM4 cable with a zip tie.
20.
1. Attach the wire guides to the inside of the baserail.
2. Route wires along the inside of the baserail using the wire guides.
**HOOK UP TO POWER & TEST MOTOR BEFORE MOVING ON TO STEP
STEP 3
Reassemble Exit Device
-
1.
Re-install pins and connecting rods on both
activating brackets
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
5.**
2.
Once guides & bumpers are installed on activating brackets slide on
the push pad.
