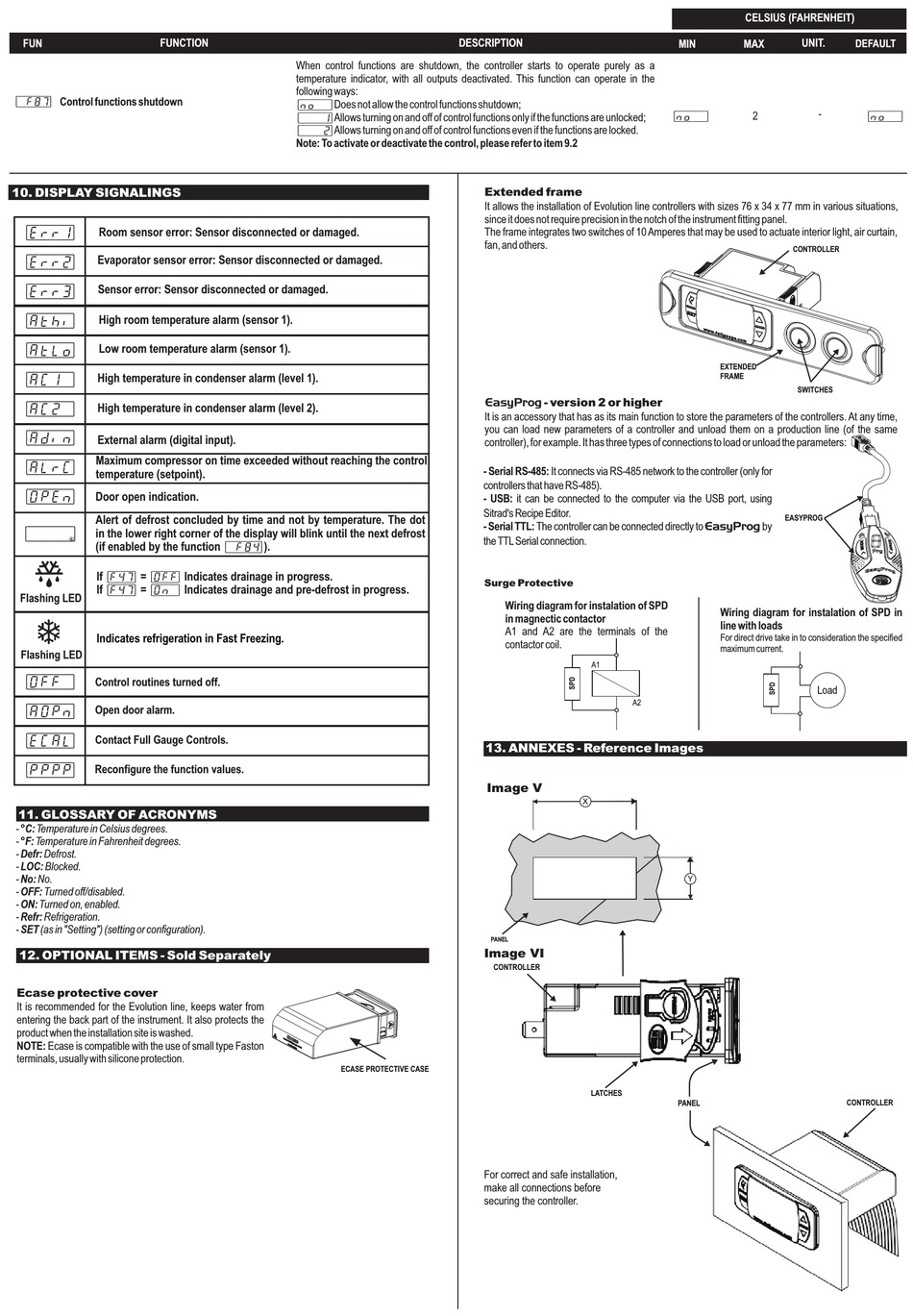

FUN FUNCTION
[,f87]
Control functions shutdown
10. DISPLAY SIGNALINGS
[Err1]
Room sensor error: Sensor disconnected or damaged.
[Err2]
Evaporator sensor error: Sensor disconnected or damaged.
[Err3]
Sensor error: Sensor disconnected or damaged.
[Athi]
High room temperature alarm (sensor 1).
[atlo]
Low room temperature alarm (sensor 1).
[AC1,]
High temperature in condenser alarm (level 1).
[AC2,]
High temperature in condenser alarm (level 2).
[Adin]
External alarm (digital input).
Maximum compressor on time exceeded without reaching the control
[alrC]
temperature (setpoint).
[Open]
Door open indication.
Alert of defrost concluded by time and not by temperature. The dot
[,,,,* ]
in the lower right corner of the display will blink until the next defrost
(if enabled by the function [,f84]).
If [F47] = [Off] Indicates drainage in progress.
If [F47] = [On,] Indicates drainage and pre-defrost in progress.
Flashing LED
Indicates refrigeration in Fast Freezing.
Flashing LED
[OFF,]
Control routines turned off.
[AOPN]
Open door alarm.
[ECal]
Contact Full Gauge Controls.
[pppp]
Reconfigure the function values.

11. GLOSSARY OF ACRONYMS

- °C: Temperature in Celsius degrees.
- °F: Temperature in Fahrenheit degrees.
- Defr: Defrost.
- LOC: Blocked.
- No: No.
- OFF: Turned off/disabled.
- ON: Turned on, enabled.
- Refr: Refrigeration.
- SET (as in "Setting") (setting or configuration).
12. OPTIONAL ITEMS - Sold Separately
Ecase protective cover
It is recommended for the Evolution line, keeps water from
entering the back part of the instrument. It also protects the
product when the installation site is washed.
NOTE: Ecase is compatible with the use of small type Faston
terminals, usually with silicone protection.
DESCRIPTION
When control functions are shutdown, the controller starts to operate purely as a
temperature indicator, with all outputs deactivated. This function can operate in the
following ways:
[no,,]Does not allow the control functions shutdown;
[,,,1]Allows turning on and off of control functions only if the functions are unlocked;
[,,,2]Allows turning on and off of control functions even if the functions are locked.
Note: To activate or deactivate the control, please refer to item 9.2
ECASE PROTECTIVE CASE
Extended frame
It allows the installation of Evolution line controllers with sizes 76 x 34 x 77 mm in various situations,
since it does not require precision in the notch of the instrument fitting panel.
The frame integrates two switches of 10 Amperes that may be used to actuate interior light, air curtain,
fan, and others.
EasyProg
- version 2 or higher
It is an accessory that has as its main function to store the parameters of the controllers. At any time,
you can load new parameters of a controller and unload them on a production line (of the same
controller), for example. It has three types of connections to load or unload the parameters:
- Serial RS-485: It connects via RS-485 network to the controller (only for
controllers that have RS-485).
- USB: it can be connected to the computer via the USB port, using
Sitrad's Recipe Editor.
- Serial TTL: The controller can be connected directly to EasyProg by
the TTL Serial connection.
Surge Protective
Wiring diagram for instalation of SPD
in magnectic contactor
A1 and A2 are the terminals of the
contactor coil.
A1
A2
13. ANNEXES - Reference Images
Image V
X
PANEL
Image VI
CONTROLLER
LATCHES
For correct and safe installation,
make all connections before
securing the controller.
CELSIUS (FAHRENHEIT)
UNIT.
MIN MAX
-
[no,,]
2
CONTROLLER
EXTENDED
FRAME
SWITCHES
EASYPROG
Wiring diagram for instalation of SPD in
line with loads
For direct drive take in to consideration the specified
maximum current.
Load
Y
PANEL
DEFAULT
[no,,]
CONTROLLER
