Standards and Requirements

All installations must comply with national and local electrical codes. Professional installation is recommended.
A FLEXmax Extreme charge controller operating in unventilated or in other conditions where the ambient
temperature exceeds 45°C (113°F) will have a derated power output. See page 65 for more information.
If damaged or malfunctioning, the FLEXmax Extreme should only be serviced by qualified personnel.
Please contact the local renewable energy dealer/installer for assistance.

Dimensions

Width 8.8" (22.4 cm)
Wiring box
height 4.4"
(11.2 cm)
Wiring box opening width 6.9" (17.6 cm)
For height with optional fan installed, see page 10
900-0150-01-00 Rev A

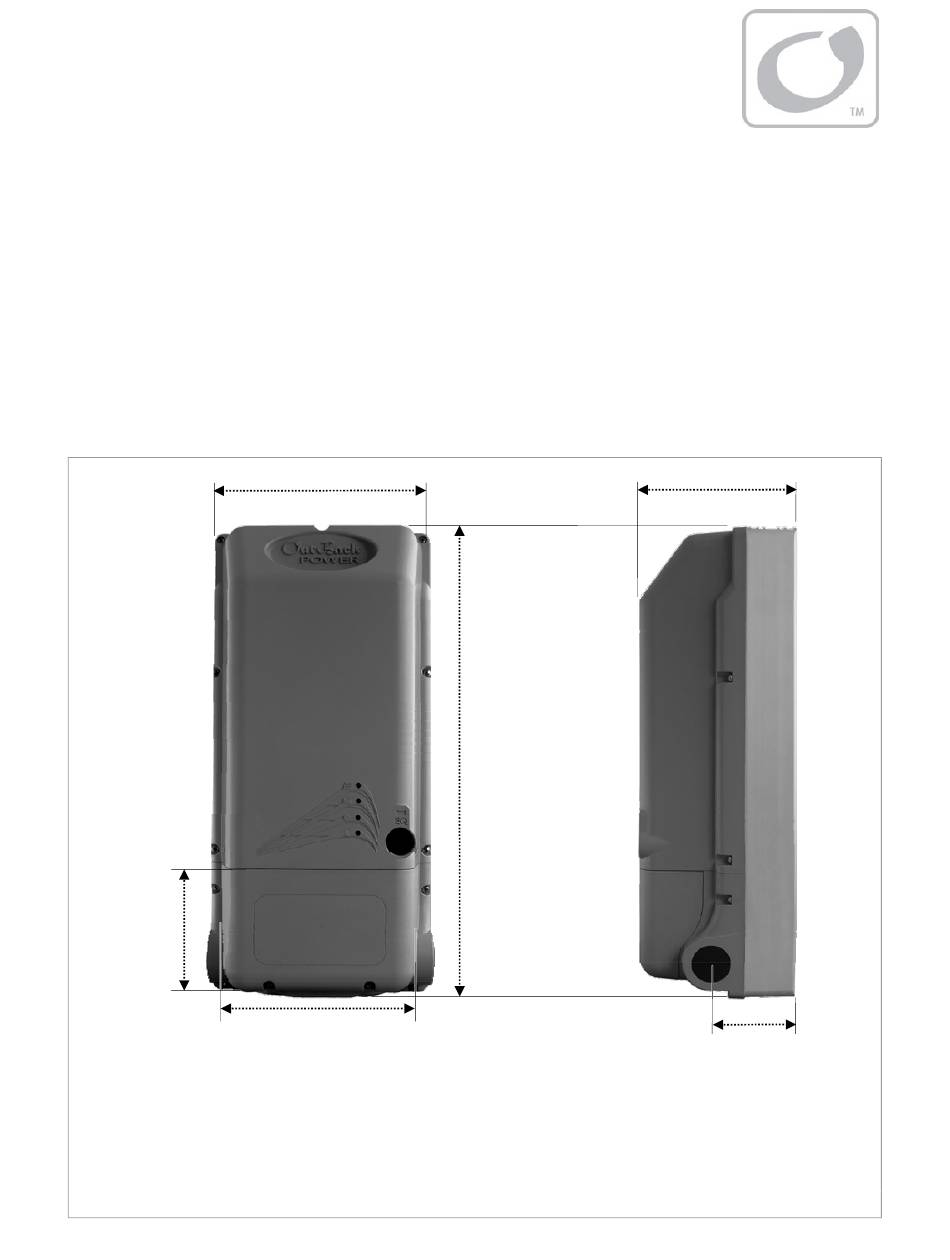

Figure 2 FLEXmax Extreme Dimensions

Installation

Depth 6.0" (15.2 cm)
Height 18.6"
(47.1 cm)
Side Plugs:
3.27" (8.3 cm)
Bottom Plugs:
3.3" (8.4 cm)
