Installation
NOTE: Ground Fault and system-specific wiring not shown

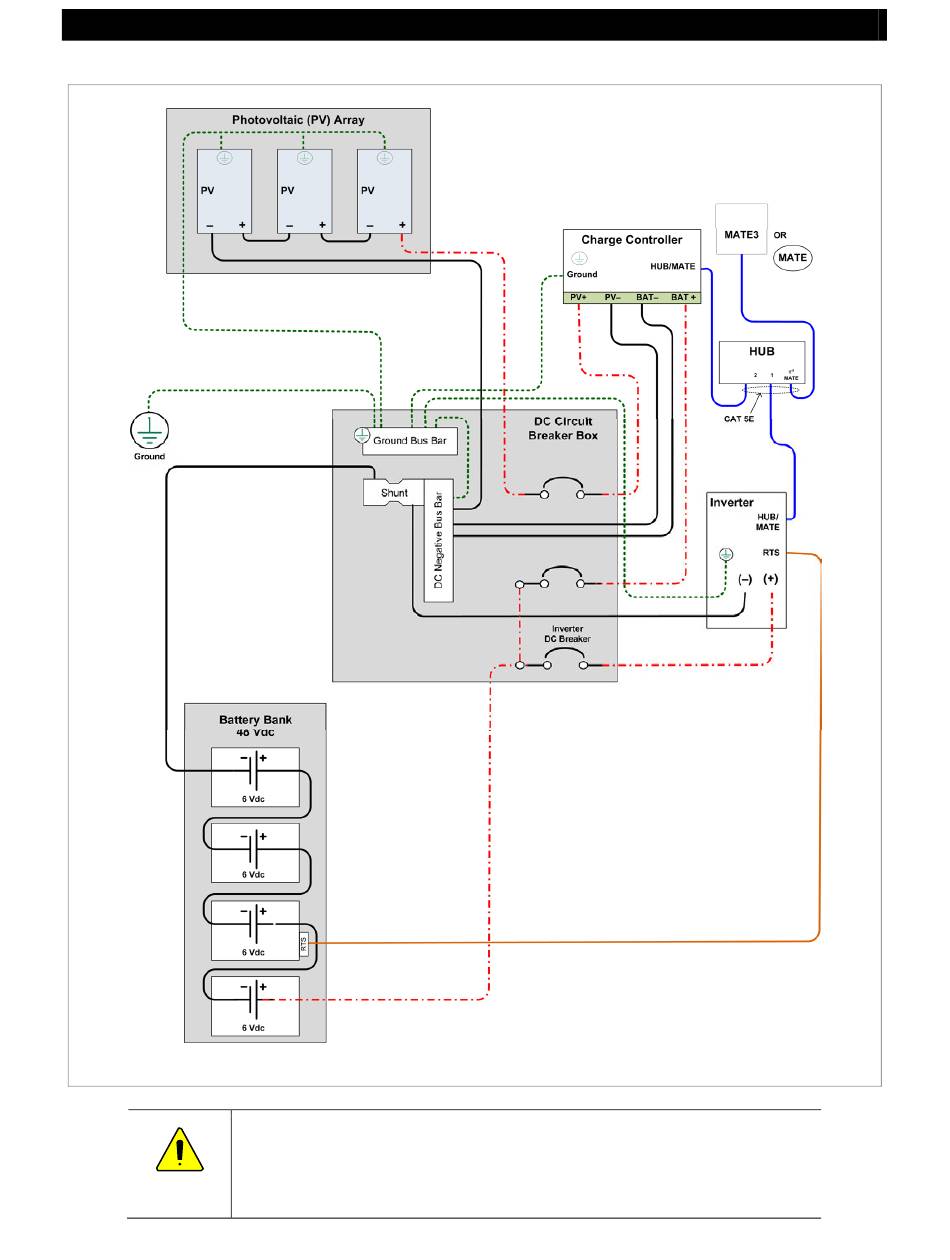

Figure 10
Wiring Diagram – Charge Controller with PV Array and Inverter
CAUTION: Equipment Damage
The FLEXmax Extreme can be used in a positive-ground system with one OutBack
inverter as shown above. It cannot be used in a positive-ground system with multiple
OutBack inverters. For other devices or configurations, see page 74.
15
900-0150-01-00 Rev A
