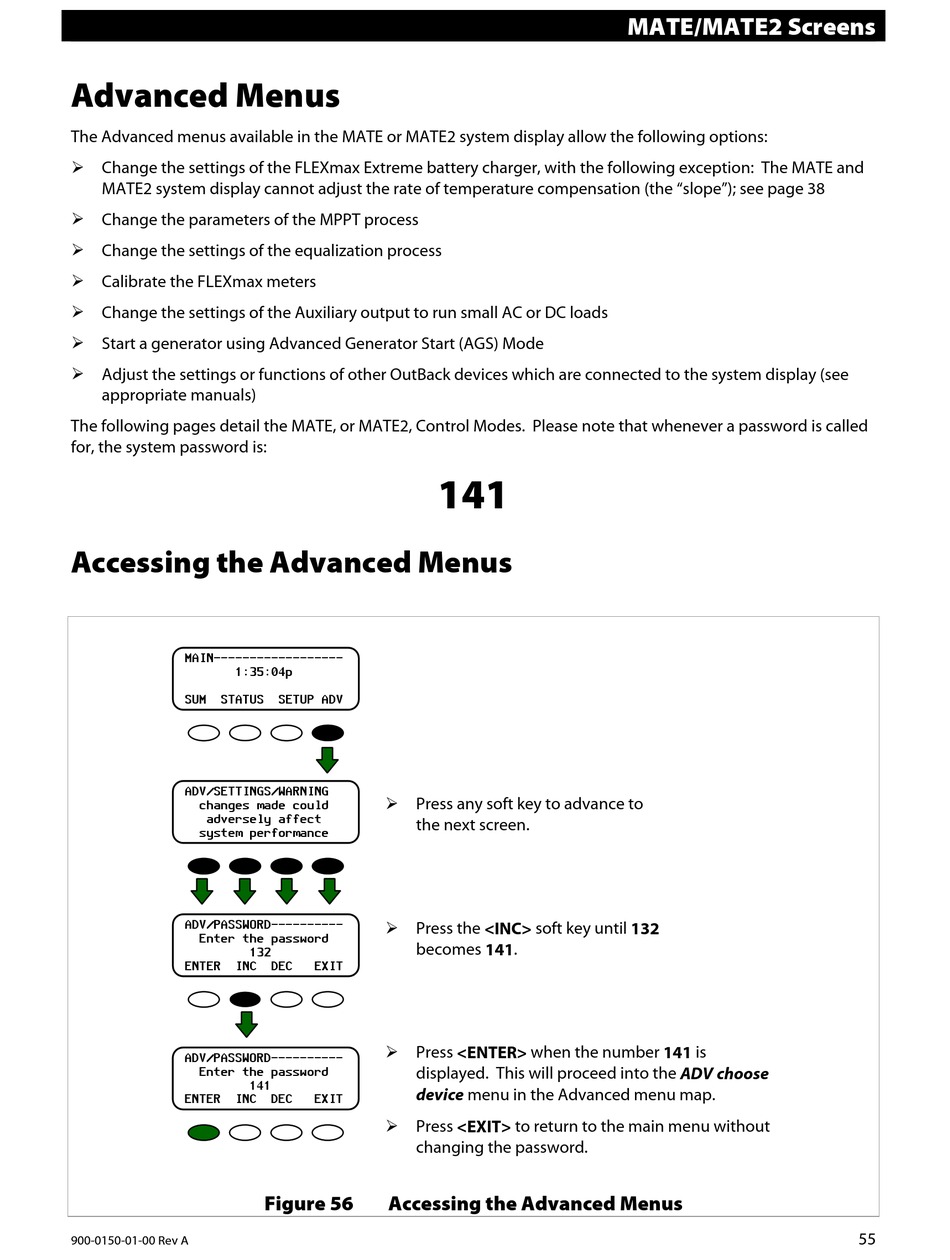

Advanced Menus

The Advanced menus available in the MATE or MATE2 system display allow the following options:
 Change the settings of the FLEXmax Extreme battery charger, with the following exception: The MATE and
MATE2 system display cannot adjust the rate of temperature compensation (the "slope"); see page 38
 Change the parameters of the MPPT process
 Change the settings of the equalization process
 Calibrate the FLEXmax meters
 Change the settings of the Auxiliary output to run small AC or DC loads
 Start a generator using Advanced Generator Start (AGS) Mode
 Adjust the settings or functions of other OutBack devices which are connected to the system display (see
appropriate manuals)
The following pages detail the MATE, or MATE2, Control Modes. Please note that whenever a password is called
for, the system password is:

Accessing the Advanced Menus

MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
ADV/SETTINGS/WARNING
changes made could
adversely affect
system performance
ADV/PASSWORD----------
Enter the password
132
ENTER INC DEC
ADV/PASSWORD----------
Enter the password
141
ENTER INC DEC
900-0150-01-00 Rev A
141
 Press any soft key to advance to
the next screen.
 Press the <INC> soft key until 132
becomes 141.
EXIT
 Press <ENTER> when the number 141 is
displayed. This will proceed into the ADV choose
device menu in the Advanced menu map.
EXIT
 Press <EXIT> to return to the main menu without
changing the password.
Figure 56 Accessing the Advanced Menus
MATE/MATE2 Screens
