Installing the AXS Card

An optional AXS Card enables Ethernet access to the FLEXmax Extreme using the Modbus protocol. (The AXS
Card is identical in function to the OutBack AXS Port product. See the AXS Port SunSpec Modbus Interface Owner's
Manual for more information. NOTE: The AXS Port product is not interchangeable with the AXS Card and
cannot be used in this compartment.
To install the AXS Card:
1. Remove the factory-installed blank
compartment cover from the FLEXmax
Extreme. The cover is held in place with
two Phillips screws.
3. Install the alternate compartment cover
which was included with the AXS Card.
Use the Phillips screws which were
removed from the blank cover.
Installation is complete. See the AXS Port SunSpec Modbus Interface Owner's Manual for information on use.
900-0150-01-00 Rev A
Screws
Insert
Screws

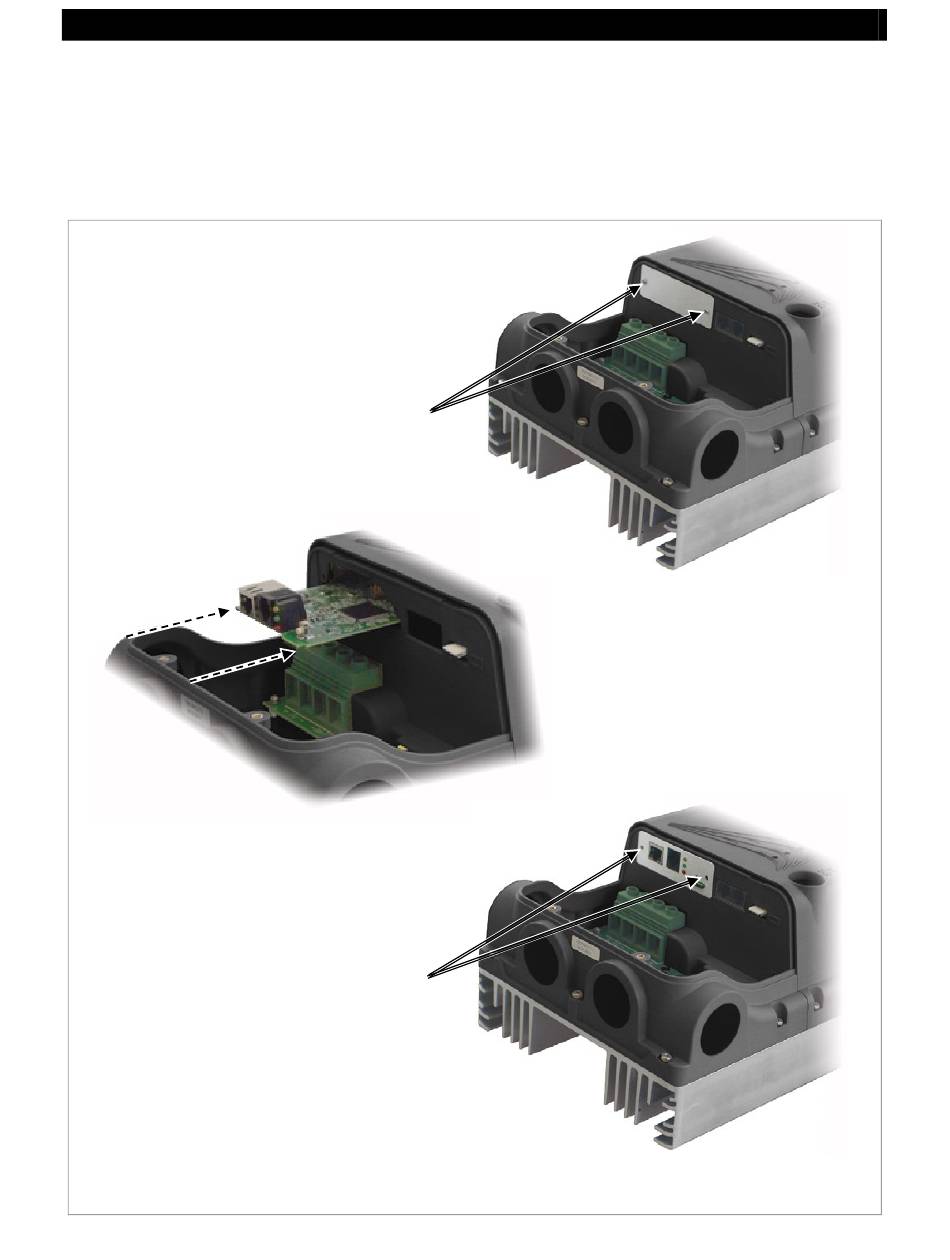

Figure 6 Installing the AXS Card
Installation
2. Insert the AXS Card onto the rails
on each side of the compartment.
Slide it in until the card presses
firmly onto the connector at the
rear of the compartment.
