Installation; Frame Mount; Figure 1, Frame Mount Dimensions (In/Mm); Table 1, Mounting Information - Alpha Group OutBack Power Mate Micro User Manual

Installation

There are two installation methods available for the OutBack Mate Micro:
»

Frame Mount

» Surface Mount
Required Tools:
» Drill
» Four ST4.2x32 Self-Tapping Screws (Frame Mounting Only)
» Four M4x8 Pan Head Screws
» Four M4 Nuts
» Four Screw Plugs
» Phillips Screwdriver
See the following two sections for each mounting method.
Frame Mount
4-M4
(06/2016)
Mounting Information
Mechanical Parameter
Overall Dimension (in/mm)
Mounting Dimension (in/mm)
Terminal

Table 1, Mounting Information

84mm
114mm

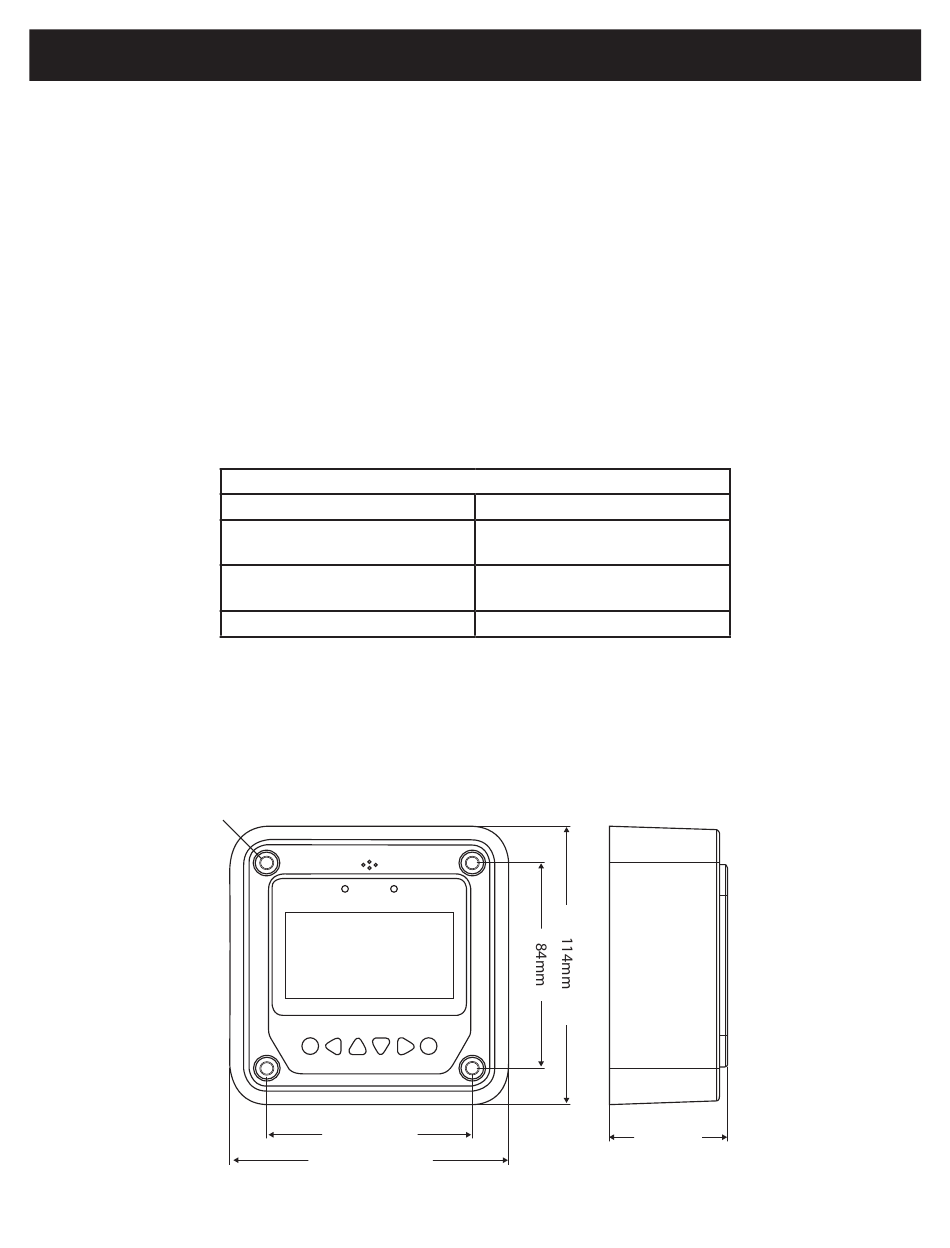

Figure 1, Frame Mount Dimensions (in/mm)

Parameter
4.49 x 4.49 x 1.90
(114 x 114 x 48.2)
3.31 x 3.31
(84 x 84)
ф4.3
48.2mm
Installation
7
