Installation

NOTE: Ground Fault and system-specific

wiring not shown

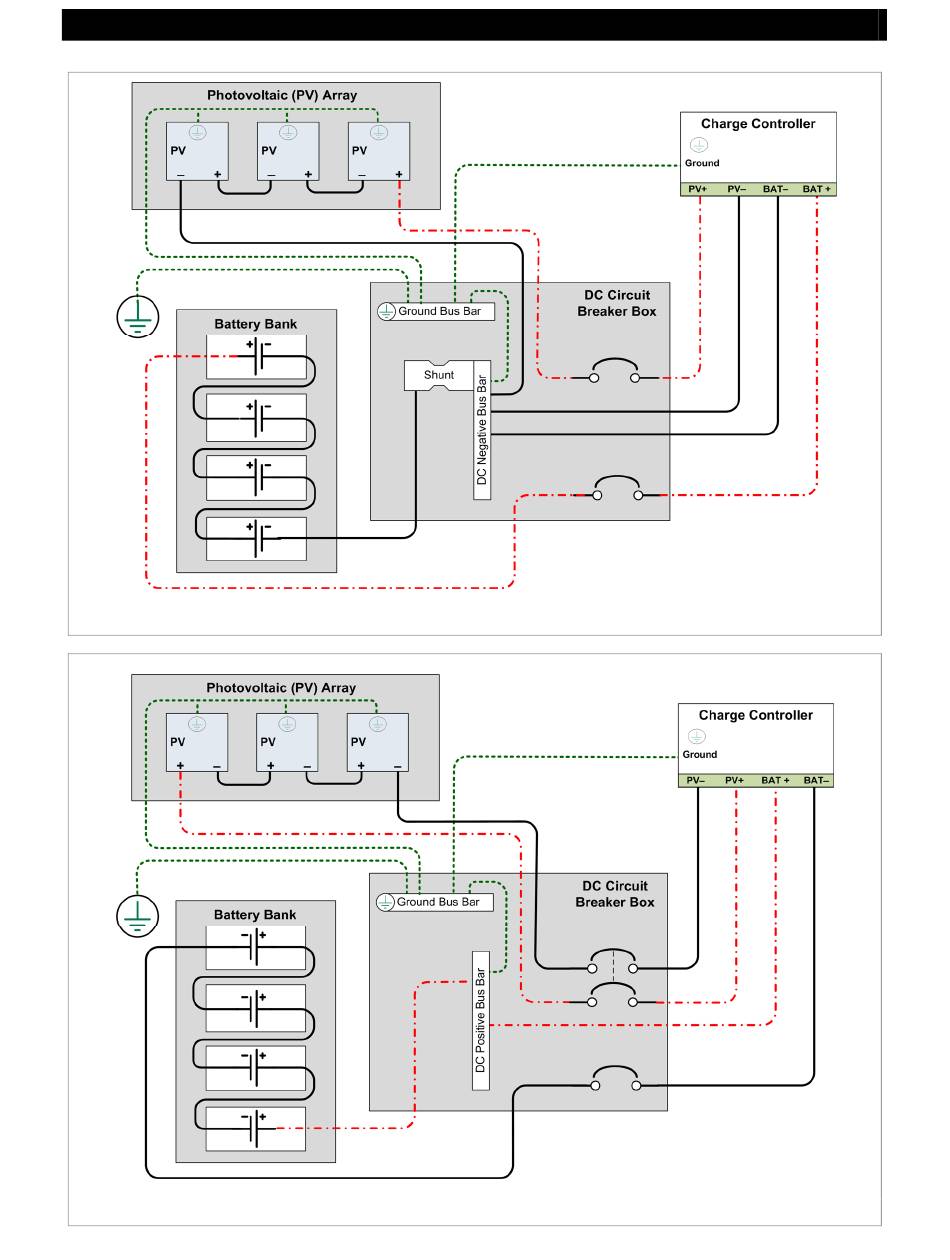

Figure 8

Wiring Diagram – Single Charge Controller with PV Array

NOTE: Ground Fault and system-specific

wiring not shown

Figure 9

Wiring Diagram – Single Charge Controller (Positive-Ground)

900-0150-01-00 Rev A
