MATE/MATE2 Screens

SETPT Screens

MAIN------------------
1:35:04p
SUM STATUS SETUP ADV
STATUS----------------
choose device
FX CC
STATUS/CC/PAGE1
MODE METER SETPT PG2
STATUS/CC/SETPT----P00
absorb
DOWN STATUS
STATUS/CC/SETPT----P00
float
DOWN UP
STATUS/CC/SETPT----P00
end of set point
menu
UP
52
Navigation for STATUS/CC/SETPT
 <STATUS> returns to the CC/PAGE1 screen.
 <DOWN> moves to the next menu item in the
 <UP> moves to the previous menu item in the
 <TOP> returns to the first CC/SETPT screen for the
DC MAIN
 <PORT> directs the MATE to read the next device
Charge Controller SETPT (set point) Screens
The SETPT screens display the current settings for
the FLEXmax Extreme battery charger, as described
on page 71.
14.4 Vdc
 Absorb
PORT
 Float
13.6 Vdc
TOP PORT
TOP STATUS

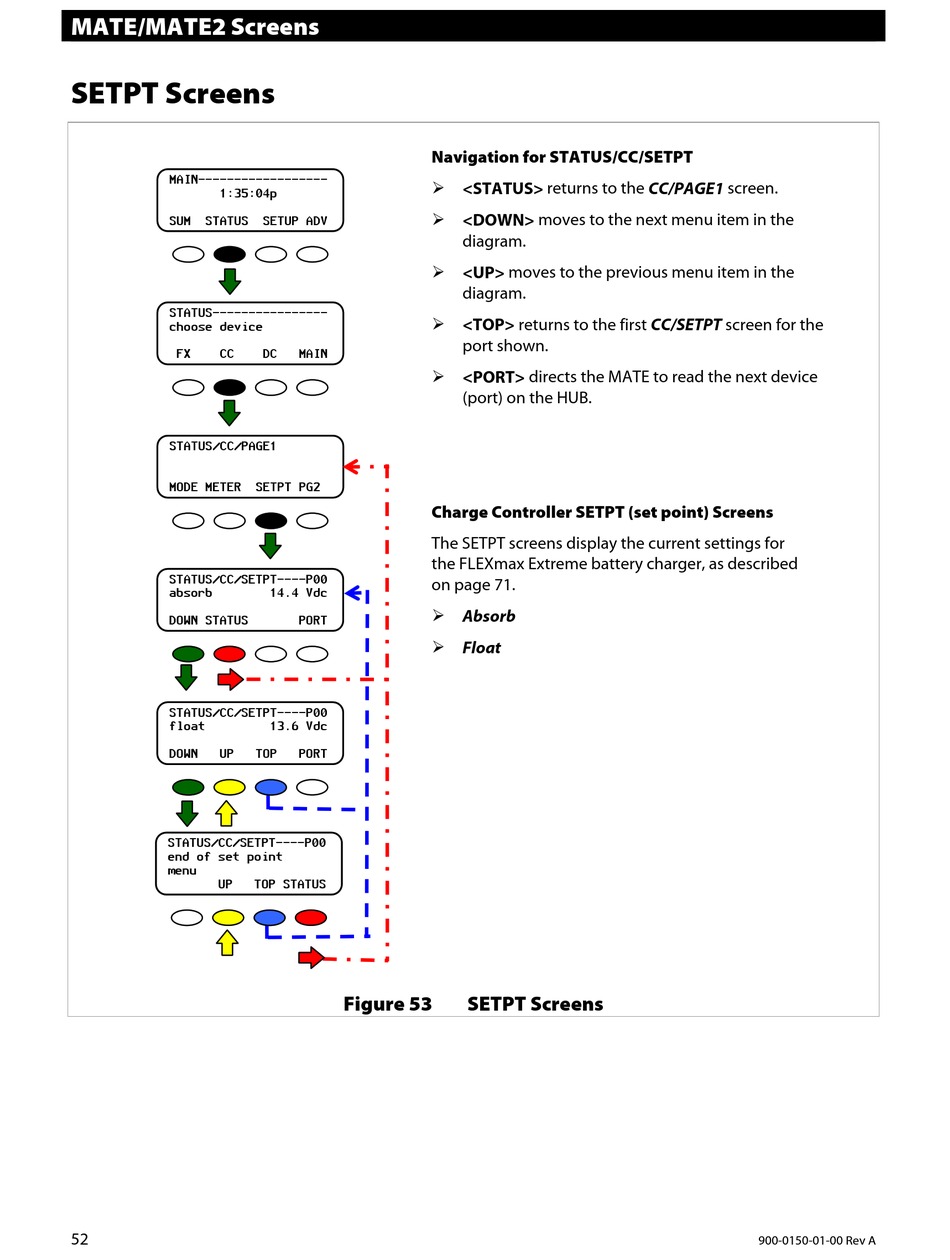

Figure 53
diagram.
diagram.
port shown.
(port) on the HUB.
SETPT Screens
900-0150-01-00 Rev A
