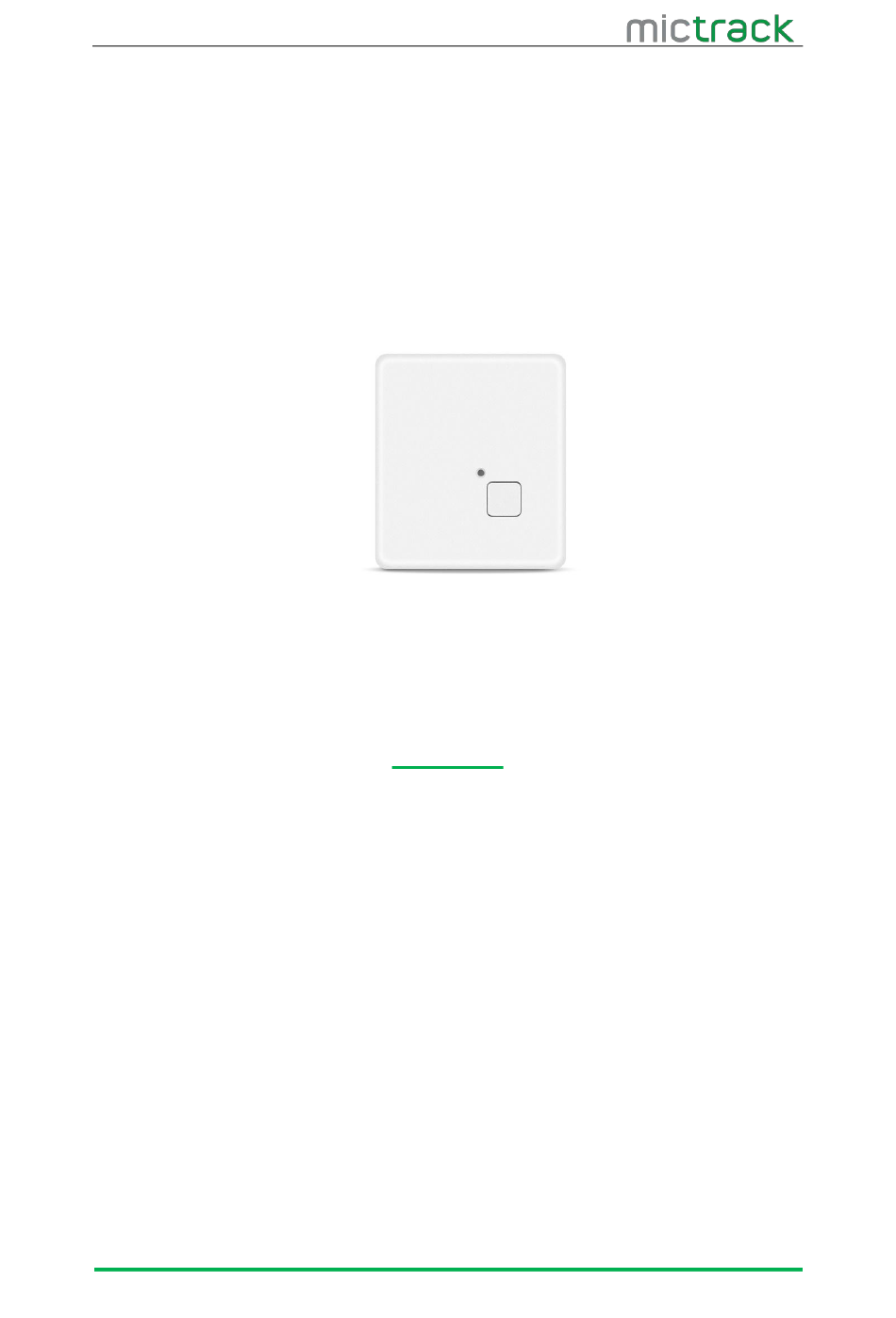

MT710 User Manual V1.0
MT710 Cat M1 & NB-IoT GPS Tracker
User Manual V1.0
Preface
Thank you for choosing the Mictrack GPS tracker MT710. This manual provides
step-by-step instructions on programming and setting up the tracker for optimal performance.
To avoid any issues or confusion during operation, please read this manual carefully before
using the product. Please note that specifications and instructions are subject to change
without prior notice to ensure product quality. Any updates or changes will be included in the
latest release. Please be advised that the manufacturer is not liable for any errors or omissions
in outdated manuals
http://www.mictrack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT710 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mictrack MT710

  • Page 1 User Manual V1.0 Preface Thank you for choosing the Mictrack GPS tracker MT710. This manual provides step-by-step instructions on programming and setting up the tracker for optimal performance. To avoid any issues or confusion during operation, please read this manual carefully before using the product.
  • Page 2: Table Of Contents

    MT710 User Manual V1.0 Contents 1. Overview ........................1 2. Features ........................1 3. Applications .......................1 4. Specifications ......................1 5. MT710 Interface .......................2 6. In the box .........................2 6.1 Standard Accessories ................... 2 6.2 Optional Accessories ..................2 7. Installation .........................3 7.1 SIM Card installation ..................3 7.2 Power ON/OFF ....................3...
  • Page 3: Overview

    MT710 User Manual V1.0 1. Overview MT710 is an IP68 waterproof GPS tracker that uses Cat M1 & NB-IoT with 2G fallback technology. It provides ultra-low power consumption, with up to 1 year of standby time powered by internal 650mAh batteries. Users can track the unit in real-time via their mobile phone or PC from anywhere, at any time.
  • Page 4: Mt710 Interface

    MT710 User Manual V1.0 Specifications Item Positioning GPS, WiFi, LBS, XTRA (Assisted GPS) Cat M1 (LTE-M) B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 NB-IoT: Cellular Bands B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz Working temperature -20°C to 60°C (-4°F to 140°F) Qualcomm Gen 8C GNSS receiver GPS Antenna Internal Cellular Antenna...
  • Page 5: Installation

    MT710 User Manual V1.0 7. Installation 7.1 SIM Card installation Get ready a Nano SIM Card (Cat M1 or NB-IoT) with 15MB data per month.  Open the back cover with a screwdriver.  Insert the SIM Card and close the back cover.
  • Page 6: Set Apn (Access Point Name)

    MT710 User Manual V1.0 For example:77712340000 Reply:SET USER PASSWORD OK. Note: Default password is 0000 8.2 Set APN (Access Point Name) SMS Command format 1: #803#password#APN## For example: #803#0000#nbiot## SMS Command format 2: #803#password#APN#APN user name#APN password## For example: #803#0000#CMNET#INTERNET#INTERNET## Reply: SET GPRS APN OK 8.3 Set IP and port...
  • Page 7: Mode 4 (Vibrate Mode)

    Note: When the device detects vibration, it will wake up and start connecting to the network. After connecting, it will immediately report data to the platform. If the device is still vibrating, MT710 will report to the server every 10 seconds. If there is no vibration for more than 7 minutes: If there is no reported data during the 7 minutes, the device will soon go to sleep.
  • Page 8: Mode 8 (Home Mode)

    MT710 User Manual V1.0 Note: This is a mixed mode of Mode 3 and Mode 4. T1 is [10-600] seconds, T2 is [1-24] hours; When the device detects vibration, it will report at the T1 interval. When the device is still, it will report at the T2 interval.
  • Page 9: Set Last Location Report

    MT710 User Manual V1.0 8.5 Set Last location report Disable Last Location :192+password For examples:1920000 Reply: SET LAST VALID GPS: OFF Enable Last Location :193+password For examples:1930000 Reply: SET LAST VALID GPS: ON. 8.6 Set LBS Disable LBS: *LBS#password#0## For example: *LBS#0000#0##...
  • Page 10: Set Protocol

    MT710 User Manual V1.0 Enable the power button:*MSW#0000#1## Reply: SET MSW:ON Note: If the power button is disabled, the device cannot be powered on/off and the SOS function is unavailable. If the power button is enabled, the device can be powered off/on via the power button 8.11 Set Protocol...
  • Page 11: App & Pc Tracking Platform

    MT710 User Manual V1.0 9. App & PC Tracking platform 9.1 App install & Login Subscribe the plan please visit:  https://shop.mictrack.com/product/gps-tracking-platform-service If you have already subscribed, please ignore this step.  Search for “Yi tracker” on Google Play or iOS store to download the mobile APP(not ...
  • Page 12: Troubleshooting

    MT710 User Manual V1.0 10. Troubleshooting Issues Caused Solutions 1. The device will only work with a Please ensure that you set up Cat M1 SIM card and will not work the correct APN via the USB with an NB-IoT SIM card.
  • Page 13 FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
