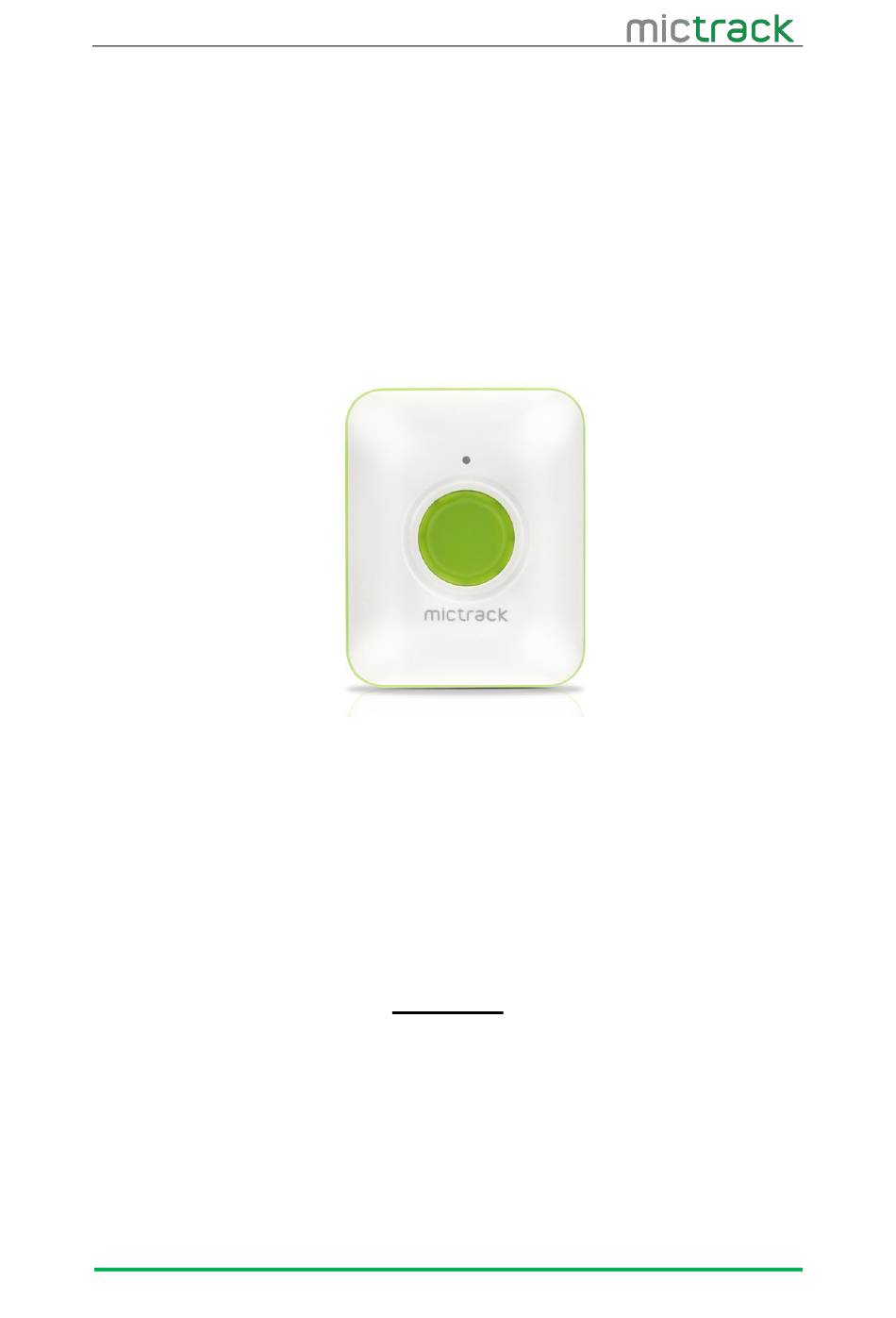

MT825 User Manual V1.0

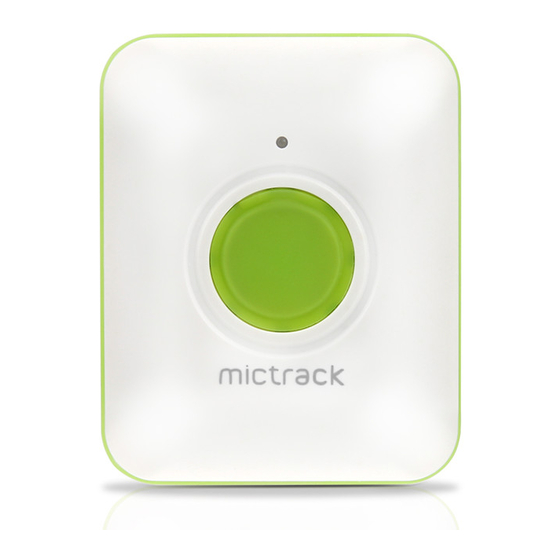

MT825 Cat M1 & NB-IoT GPS Tracker
User Manual V1.0
Preface
Congratulations on choosing the Mictrack MT825 CAT M1/NB-IoT GPS tracker. This
manual shows how to easily program and setup the tracker for the best results. Make sure to
read this manual carefully before using this product, so as to avoid delays or confusion with its
operation. Please note that specifications and instructions are subject to change without notice
to facilitate product improvement. Updates and changes will be integrated into the latest
release. The manufacturer assumes no responsibility for any errors or omissions in outdated
documents.
http://www.mictrack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT825 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mictrack MT825

Summary of Contents for Mictrack MT825

  • Page 1 User Manual V1.0 Preface Congratulations on choosing the Mictrack MT825 CAT M1/NB-IoT GPS tracker. This manual shows how to easily program and setup the tracker for the best results. Make sure to read this manual carefully before using this product, so as to avoid delays or confusion with its operation.

  • Page 2: Table Of Contents

    MT825 User Manual V1.0 Contents 1. Overview............................1 2. Features............................1 3. Applications..........................1 4. Specifications..........................1 5. MT825 interface.......................... 2 6. In the box............................. 2 7. Installation............................3 7.1 SIM Card installation....................... 3 7.2 LED Indications........................ 3 7.2.1 Green indicator..................... 3 7.2.2 RED indicator......................

  • Page 3: Overview

    MT825 User Manual V1.0 1. Overview MT825 is a Mini waterproof GPS tracker that uses the latest CAT M1 & NB-IoT technology that can provide low power consumption and optimized data transmission with low cost. The parents or pet owners can track the unit via their smart phone even if far away. With the hybrid positioning system GPS and WiFi allow get more precise location.

  • Page 4: Mt825 Interface

    MT825 User Manual V1.0 Specifications Item Working temperature -20°C to 65°C Cat M1 (LTE-M, eMTC) LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 Cellular Bands NB-IoT (CAT NB1): LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 GSM: 850/900/1800/1900Mhz Positioning GPS, WiFi, LBS Tracking Sensitivity -162 dBm Sensor...

  • Page 5: Installation

    MT825 User Manual V1.0 7. Installation 7.1 SIM Card installation Get ready a Nano Sim Card that support Cat M1 NB-IoT with 15MB data a month  Open the waterproof rubber plug  Insert Sim card to sim card slot correctly(as the following image) ...

  • Page 6: Set Apn (Access Point Name)

    MT825 User Manual V1.0 8.1 Set APN (Access Point Name) SMS Command format 1: apn,apn,,# For example : apn,iot.nb,,# SMS Command format 2: apn,apn,username,password# For example: apn,internet,internet,internet# Reply: IMEI, apn=Success! 8.2 Set the IP and port SMS Command format : data,ip:port# For example : data,e.trackits.com:7700##...

  • Page 7: Network Mode

    After connected it will Immediately report a data (event 15) to the platform; If the device is still in a vibrating state, MT825 will report to the server every 30 seconds/ If there is no vibration for more than 2 minutes, the device will automatically go to sleep and report a data((event 16) to server.

  • Page 8: Ota

    MT825 User Manual V1.0 print log, sent command: Logprint,0# 8.7 OTA SMS Command format: otastart,ip:port,user name,password,firmware name,1# For examples: otastart,112.74.53.63:21,ota,ota,MT825.bin,1# Reply: IMEI, otastart =Success! OTADONE It will response “OTADONE” if OTA successfully or response “OTAFAILED” when OTA fail. If it has failed, please try again.

  • Page 9: Pc Login

    MT825 User Manual V1.0 Choose the” Login by Device No., Input server www.trackits.com   Input your device’s ID number and password(default is 123456) to login. 9.2 PC login No.” Web: www.trackits.com, Choose “ID  Input your device’s ID number and password(default is 123456) to login ...
  • Page 10 MT825 User Manual V1.0 2>SIM Card have not active 3>Card balance is not enough Please check the command Text command format is wrong format again Please check LED status and Connect network fail. make sure the network connect successful first.
