  • Page 1 HA401-VG Storage Server Barebone User's Manual UM_HA401-VG_v1_031419...

  • Page 2: Table Of Contents

    Table of Contents Preface ������������������������������������������������������������������������������������������������� i Safety Instructions ������������������������������������������������������������������������������ ii About This Manual ������������������������������������������������������������������������������ iv Chapter 1� Product Features �������������������������������������������������������������� 1 1.1 Box Contents ................... 1 1.2 Specifications ..................2 1.3 Features ....................3 Chapter 2� Hardware Setup ���������������������������������������������������������������� 8 2.1 Central Processing Unit Setup ...............
  • Page 3 3.3 Motherboard Layout ................30 3.4 Connector and Jumper .................31 3.4.1 Connector ......................31 3.4.2 Jumper ......................37 3.5 System LED Indicator ................38 3.5.1 Front Panel LED ....................38 3.5.2 Rear chassis LED ..................... 38 3.5.3 Internal LED ...................... 39 3.6 HDD Backplane ..................40 3.6.1 Placement ......................
  • Page 4 4.6 Power......................65 4.6.1 Power ....................... 65 4.7 Boot ......................66 4.7.1 Boot ........................66 4.8 Exit ......................67 4.8.1 Exit ........................67 Chapter 5. BMC Configuration Settings �������������������������������������������� 68 5.1 Network Settings ...................68 5.2 Web GUI ....................71 5.2.1 Dashboard ......................72 5.2.2 Server Health - Sensor Readings ..............72 5.2.3 Settings ......................
  • Page 5 Copyright © 2019 AIC, Inc� All Rights Reserved� This document contains proprietary information about AIC products and is not to be disclosed or used except in accordance with applicable agreements.
  • Page 6 Document Release History Release Date Version Update Content March Manual released to the public. 2019...

  • Page 7: Preface

    Disclaimer AIC shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC or its affiliates, subcontractors or suppliers will be liable for incidental, special or consequential damages including downtime cost;...

  • Page 8: Safety Instructions

    Safety Instructions Before getting started, please read the following important cautions: • All cautions and warnings on the equipment or in the manuals should be noted. • Most electronic components are sensitive to electrical static discharge. Therefore, be sure to ground yourself at all times when installing the internal components. •...
  • Page 9 • If one of the following situations arise, the equipment should be checked by service personnel: 1. The power cord or plug is damaged. 2. Liquid has penetrated the equipment. 3. The equipment has been exposed to moisture. 4. The equipment does not work well or will not work according to its user manual. 5.

  • Page 10: About This Manual

    This document pellucidly presents a brief overview of the product design, device installation, and firmware settings for HA401-VG. For the latest version of this user's manual, please refer to the AIC website. Chapter 1 Product Features...

  • Page 11: Chapter 1� Product Features

    HA401-VG User Manual HA401-VG User Manual Chapter 1. Product Features HA401-VG is a high density storage server that includes mother board, chassis, power supply, and HDD backplane. For more information about our product, please visit our website at http://www.aicipc.com/en. Before removing the subsystem from the shipping carton, visually inspect the physical condition of the shipping carton.

  • Page 12: 1.2 Specifications

    HA401-VG User Manual Chapter 1. Product Features 1.2 Specifications 2 x16 slots (LP) mm : 438 x 705 x 174.5 Expansion Slots Dimensions PCIe 3.0 (per node) 3 x8 slots (LP) (W x D x H) inches : 17.2 x 27.7 x 6.8...

  • Page 13: Features

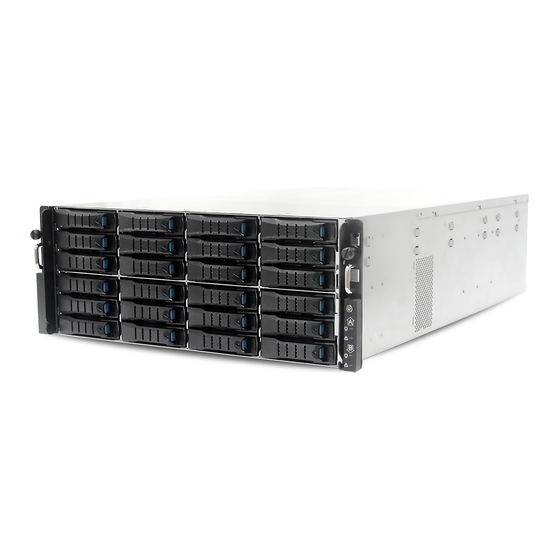

    Chapter 1. Product Features 1�3 Features HA401-VG is a reliable 4U storage server barebone with 24 hotswap drives bays. This product is designed to accommodate the AIC-patented serverboard, Virgo, which supports two Intel® Xeon® Scalable Processors and 12 DDR4 DIMM to offer greater perfomance, efficiency, and utility for our customers.
  • Page 14 HA401-VG User Manual Chapter 1. Product Features Front Panel 24 x 3.5" hot swap drive tray System LED Indicator and switch Item Function System Power Node A System Power LED for node A System Warning LED for node A Node B...
  • Page 15 HA401-VG User Manual Chapter 1. Product Features Rear Panel  Node A (Secondary)           Node B (Primary)            Item Description 1300W 1+1 redundant power supply 80+ Platinum...
  • Page 16 HA401-VG User Manual Chapter 1. Product Features Node Top View  Item Description 4 x 60x56mm easy swap fans...
  • Page 17 HA401-VG User Manual Chapter 1. Product Features Top View  Item Description 1300W 1+1 redundant power supply 80+ Platinum...

  • Page 18: Chapter 2� Hardware Setup

    Chapter 2� Hardware Setup HA401-VG User Manual Chapter 2. Hardware Setup This section describes a simple instruction guide for installing the hardware components on the serverboard system. Turn off and unplug all system and peripheral devices before proceeding. 2�1 Central Processing Unit Setup The serverboard supports dual Xeon scalable processors and Socket P0 (LGA-3647).
  • Page 19 HA401-VG User Manual Chapter 2. Hardware Setup Processor Socket Assembly: The server board includes two processor sockets (LGA-3647), supports one or two of the Intel® Xeon® Processor Scalable Family and has a Thermal Design Power (TDP) of up to 165W on selected models.
  • Page 20 HA401-VG User Manual Chapter 2. Hardware Setup PHM Screw Installation Order: The PHM sits level with the processor socket assembly. The PHM is NOT installed properly if it does not sit level with the processor socket assembly. Once the PHM is seated over the processor socket assembly, the four heat sink torque screws must be secured in the following order as shown below.

  • Page 21: System Memory

    HA401-VG User Manual Chapter 2. Hardware Setup 2�2 System Memory This server board supports up to twelve DDR4 2400 and 2666 Registered ECC DRAM/ Load-Reduced DIMM. JDIMML0 JDIMML0 JDIMMK0 JDIMMK0 JDIMMJ0 JDIMMJ0 JDIMMC0 JDIMMC0 JDIMMB0 JDIMMB0 JDIMMA0 JDIMMA0 CPU 1...

  • Page 22: Dimm Installation Order

    HA401-VG User Manual Chapter 2. Hardware Setup 2�2�1 DIMM Installation Order JDIMML0 JDIMMC0 JDIMMK0 JDIMMB0 JDIMMJ0 JDIMMA0 DIMM Numbers DIMM ARRANGMENT CPU 0 CPU 0 CPU 1 CPU 1 CPU1 CPU0 2 DIMMs JDIMM_L0 JDIMM_C0 JDIMMG0 JDIMMD0 JDIMMH0 JDIMME0 JDIMMI0...
  • Page 23 HA401-VG User Manual Chapter 2. Hardware Setup JDIMML0 JDIMMC0 JDIMMK0 JDIMMB0 JDIMMJ0 JDIMMA0 CPU1 CPU0 JDIMM_L0 JDIMM_C0 CPU 0 CPU 0 CPU 1 CPU 1 JDIMM_K0 JDIMM_B0 10 DIMMs JDIMM_J0 JDIMM_A0 JDIMM_G0 JDIMM_D0 JDIMMG0 JDIMMD0 JDIMM_I0 JDIMM_F0 JDIMMH0 JDIMME0 JDIMMI0...

  • Page 24: Dimm Installation

    HA401-VG User Manual Chapter 2. Hardware Setup 2�2�2 DIMM Installation Step 1 Unlock the DIMM socket by pressing the retaining clips outward. Step 2 Insert the memory module into the slot. Make sure that the DIMM notch is accurately positioned.

  • Page 25: Top Cover

    HA401-VG User Manual Chapter 2. Hardware Setup 2�3 Top Cover 2�3�1 Removing the Top Cover  Dismantle screw on top cover.  Push the cover toward the rear panel.  Lift the top cover upward to remove. 2�4 Power Supply Unit Module 2�4�1 Replacing the Power Supply Unit...

  • Page 26: Replacing The Node

    HA401-VG User Manual Chapter 2. Hardware Setup 2�5 Node 2�5�1 Replacing the Node  Pull out the handle on the node.  Pull the handle to remove the node from the chassis.  Slide the replaced node into the chassis.

  • Page 27: Hard Disk Drive

    HA401-VG User Manual Chapter 2. Hardware Setup 2�7 Hard Disk Drive 2�7�1 Replacing the Internal 2�5" Hard Disk Drive  Pull the node entirely out of the system. Please refer to Section 2.4 Node.  Loosen the thumb screws x2 on the HDD cage.

  • Page 28: Hdd Backplane

    HA401-VG User Manual Chapter 2. Hardware Setup 2�8 HDD Backplane 2�8�1 Replacing the HDD Backplane  Detach the cables and hard disk drives from the backplane module.  Release the module by shifting the hook.  Dislodge the screws on the module.

  • Page 29: Slide Rail Installation

    HA401-VG User Manual Chapter 2. Hardware Setup 2�10 Slide Rail Installation NOTE This sections provides a basic instruction for mounting the slide rail onto the system. Tool-less rails vary per order. The rail in this manaul may not exactly match the rail for your system.
  • Page 30 HA401-VG User Manual Chapter 2. Hardware Setup 4. Install the inner rail onto the system barebone. Lock the keyholes and secure the screws on sides of the system. 5. Continue installing the outer rail bracket to the mounting frame. Attach the outer rail assembling to the frame and press the bracket to form a rack on both ends.
  • Page 31 HA401-VG User Manual Chapter 2. Hardware Setup 6. Pull out the middle channel until the ball bearing retainer is locked forward. NOTE Verify ball bearing retainer is locked forward. 7. Depress the locking tabs on both sides of the chassis simultaneously and push the chassis all the way into the rear of the rack.

  • Page 32: Chapter 3� Motherboard Settings

    Chapter 3� Motherboard Settings Chapter 3. Hardware Settings HA401-VG User Manual This section describes the jumpers, internal connectors and internal LEDs setting on Virgo motherboard. The motherboard layout and important jumper settings are listed below. 3�1 Motherboard Block Diagram Platform Environment Control Interface(PECI)

  • Page 33: Motherboard Content List

    HA401-VG User Manual Chapter 3. Hardware Settings 3�2 Motherboard Content List Connector/Jumper/Header Location Connector/Jumper/Header Location Power Supply JPWR1, JPWR3, Front I/O USB Header JUSB_INT Connector JPWR4 Power Supply JPWR2 SSI Front Panel Header JFRNT_SSI Connector External Thermal J2, J13, J24...

  • Page 34: Motherboard Layout

    Chapter 3. Hardware Settings HA401-VG User Manual 3�3 Motherboard Layout CPU1 CPU1 CPU0 CPU0 CPU0 19 18...

  • Page 35: Connector And Jumper

    HA401-VG User Manual Chapter 3. Hardware Settings 3�4 Connector and Jumper 3�4�1 Connector 6 SAS IOC Activity LED Header (J19) 1 Power Connector (JPWR1, JPWR3 & JPWR4) +3.3V SAS_LED_GPIO16 SAS_LED_GPIO20 SAS_LED_GPIO17 SAS_LED_GPIO21 SAS_LED_GPIO18 SAS_LED_GPIO22 SAS_LED_GPIO19 SAS_LED_GPIO23 7 SAS IOC Error LED Header (J25) 2 Power Connector (JPWR2) +3.3V...
  • Page 36 Chapter 3. Hardware Settings HA401-VG User Manual SFF-8643 Connector for PCIe (CN1) SFF-8643 Connector for PCIe (CN4) SMBDAT_MUX_6 C1 A1 CLK_100M_SSD6_P SMBDAT_MUX_4 C1 A1 CLK_100M_SSD4_P SMBCLK_MUX_6 C2 A2 CLK_100M_SSD6_N SMBCLK_MUX_4 C2 A2 CLK_100M_SSD4_N C3 A3 GND C3 A3 GND CPU1_EXP1_TX_DP_13 C4 A4 CPU1_EXP1_RX_DP_13...
  • Page 37 HA401-VG User Manual Chapter 3. Hardware Settings SFF-8643 connector for SAS (CN7) SIO1_SAS_DOUT C1 A1 N.C. C2 A2 SIO1_SAS_CLK C3 A3 GND SAS_EXP_TX_P6 C4 A4 SAS_EXP_RX_P6 SAS_EXP_TX_N6 C5 A5 SAS_EXP_RX_N6 C6 A6 GND SAS_EXP_TX_P7 C7 A7 SAS_EXP_RX_P7 SAS_EXP_TX_N7 C8 A8 SAS_EXP_RX_N7...
  • Page 38 Chapter 3. Hardware Settings HA401-VG User Manual 15 PCH SSGPIO Header (JSSGPIO) 27 Front I/O USB Header (JUSB_INT) 17 PCH GPIO Header (JPCH_GPIO) 28 SSI Front Panel Header (JFRNT_SSI) 24 SAS IOC ICE Header (J12)
  • Page 39 HA401-VG User Manual Chapter 3. Hardware Settings 32 EPSI Header (JEPSI) 34 PCIE Hot-Plug SMB Header (JPCIE_HP) 33 Debug Port Header (JLPC_DP) 35 PCIE Hot-Plug Front Panel Header (J4, J5, & J6)
  • Page 40 Chapter 3. Hardware Settings HA401-VG User Manual 38 Front COM Header (JCOM1 & JCOM4) 42 BMC Debug Port Header (JBMC_DP) 39 VROC KEY Header (JRAID_KEY) 44 BMC I2C1 header (JBMC_I2C1) I2C1SCL I2C1SDA 40 LCM Header (JLCM) 45 BMC GPIO header (JBMC_GPIO)

  • Page 41: Jumper

    HA401-VG User Manual Chapter 3. Hardware Settings 3�4�2 Jumper SATA4 Pin-7 Power Header (J10) 26 No Reboot(Watch Dog) Jumper (J26) Setting J26 (No Reboot) Setting Short SATA4 pin-7 Power Short Enable Open Normal Default Open Disable Default SATA5 Pin-7 Power Header (J11)

  • Page 42: System Led Indicator

    Chapter 3. Hardware Settings HA401-VG User Manual 3�5 System LED Indicator 3�5�1 Front Panel LED Yellow The system is On. The system is in Standby; System is off, but Power Blinking has AC power. System has no AC power Critical system failure is detected...

  • Page 43: Internal Led

    HA401-VG User Manual Chapter 3. Hardware Settings 3�5�3 Internal LED LAN2 10G LED LAN1 10G LED SFP+ LAN1 1G LED LAN2 1G LED LAN4 1G/10G LED LAN3 1G/10G LED BMC Heart Beat LED SAS IOC Status LED NVME Hot-Plug LED...

  • Page 44: Hdd Backplane

    Chapter 3. Hardware Settings HA401-VG User Manual 3�6 HDD Backplane 3�6�1 Placement Top view Sensor For Secondary Canister Node JATXPWR Sensor For Primary Canister Node Sensor Bottom view CN2000 CN2001 CN2002 CN2003 CN2004 CN2005 CN2006 CN2007 CN2008 CN2009 CN2010 CN2011...

  • Page 45: Connector And Jumper

    HA401-VG User Manual Chapter 3. Hardware Settings 3�6�2 Connector and Jumper Front I/O (J3) Power Connector (J4) Power Connector (JATXPWR) Front Panel LED (JP2) PMBUS Connector (JP4) PIC Reset Jumper(SW1) MCLR Default high (active low) Boot Loader Mode Jumper (SW2)

  • Page 46: System Led Indicator

    Chapter 3. Hardware Settings HA401-VG User Manual 3�6�3 System LED Indicator Top view LED1 Bottom view...
  • Page 47 HA401-VG User Manual Chapter 3. Hardware Settings Blue (On) HDD present HDD Activity detected : 8Hz HDD Activity LEDs Blue (Blinking) HDD Locate : 0.5Hz HDD no connect or Power Off Set by any of the following bits: Red (On) 1.

  • Page 48: Drive Slot Map

    Chapter 3. Hardware Settings HA401-VG User Manual 3�6�4 Drive Slot Map...

  • Page 49: Expander Board

    HA401-VG User Manual Chapter 3. Hardware Settings 3�7 Expander Board 3�7�1 Placement Top view Bottom view U2001 Flash U2013...
  • Page 50 Chapter 3. Hardware Settings HA401-VG User Manual 3�7�2 Connector Power Connector (JPWR1) Fan Connector (J14, J15, J16, J17) +12V +12V Power Connector (JPWR2/JPWR4) +12V +12V +12V +12V Power Connector (JPWR3) +3_3MB Console for expnder +12V Battery Function +12V (JEXP_UART1) (JVBATT_I2C1)

  • Page 51: Jumper

    HA401-VG User Manual Chapter 3. Hardware Settings Power SW (JPWR_SW1) Description Remark POWER_SW input High/ Low POWER_SW input High/ Low PSU Alert (JPSU_POK) Description Remark PSU_Power OK Default High 3�7�3 Jumper EXP_RST Default High (Active low) Reset(JEXP_RST1) MB_PWRGD Default High (Active low)
  • Page 52 Chapter 3. Hardware Settings HA401-VG User Manual 3�7�4 LED...

  • Page 53: Chapter 4. Bios Configuration Settings

    Chapter 4. BIOS Configuration Settings HA401-VG User Manual Chapter 4 BIOS Configuration Settings This chapter demonstrates how to configure the UEFI BIOS settings in your system device. You can enter the BIOS screen during system startup. To enter BIOS configuration settings,...

  • Page 54: Bios Setup

    Chapter 4 BIOS Configuration Settings HA401-VG User Manual 4�2 BIOS Setup 4�2�1 Menu Press  and  to select the options of the menu bar. Press Enter to access the option screen. Menu Description Main Displays basic system information and date & time.
  • Page 55 HA401-VG User Manual Chapter 4 BIOS Configuration Settings Step 2 There will be a message “Entering SETUP” displayed on the diagnostics screen. Step 3 Identify the BIOS version. NOTE For the official released version, the last digit of the BIOS version must end in a “0.“...
  • Page 56 Chapter 4 BIOS Configuration Settings HA401-VG User Manual Step 4 Load Optimal Default Setting. Step 5 Save the setting and exit the BIOS setup utility.

  • Page 57: Main

    HA401-VG User Manual Chapter 4 BIOS Configuration Settings 4�3 Main Main Option Key: 4�3�1 Main Option Key Description System time Configures the current time. System date Configures the current date.

  • Page 58: Peripheral Configuration

    Chapter 4 BIOS Configuration Settings HA401-VG User Manual 4�4 Advanced Advanced Option Key: 4.4.1 Peripheral Configuration Peripheral Configuration PCIe SR-IOV Enable Disable PCIe ARI Enable Disable ARI Forward Enable Disable Spread Enable Disable Spectrum Redfish On/ Enable Disable 4.4.2 Video Configuration...
  • Page 59 HA401-VG User Manual Chapter 4 BIOS Configuration Settings MSR Lock Control Enable Disable Processor Configuration Extended APIC Enable Disable 128M 256M MMCFG Size 512M Common MMIO High Base RefCode Configuration MMIO High Granularity Size 256G 1024G Disable Minimum Serial Debug Message...
  • Page 60 Chapter 4 BIOS Configuration Settings HA401-VG User Manual Check Platform Detect Enable Disable Erase-Arm NVDIMMs Enable Disable Restore NVDIMMs Enable Disable Memory Configuration Interleave NVDIMMs Enable Disable Custom Refresh Rate Min=0, Max=40 Auto 100 KHz SMB Clock Frequency 400 KHz...
  • Page 61 HA401-VG User Manual Chapter 4 BIOS Configuration Settings Single Power Enable Disable Domain (SPD) Max Performance Boot performance Max Efficient mode Set by Intel Node Manager CPU P State Control Energy Enable Disable Efficient Turbo Turbo Mode Enable Disable CPU Flex Ratio...

  • Page 62: 4.4.4 Pch Configuration

    Chapter 4 BIOS Configuration Settings HA401-VG User Manual 4.4.4 PCH Configuration PCH Configuration PCH Devices PCH state after G3 Last State SATA Controller Configure SATA as AHCI RAID Support Aggressive Link Power Enable Disable Management Alternate Device ID on Enable...
  • Page 63 HA401-VG User Manual Chapter 4 BIOS Configuration Settings Smart Response Enable Disable Technology PCH SATA Configuration 2 Seconds 4 Seconds RAID OROM prompt delay 6 Seconds 8 Seconds sSATA Controller Enable Disable Configure sSATA as AHCI RAID Support Aggressive Link Power...
  • Page 64 Chapter 4 BIOS Configuration Settings HA401-VG User Manual SLP_LAN# Low on DC Enable Disable Power K1 off Enable Disable FPK Port 1-4 Enable Management Disable PCI Delay Optimization Enable Disable Compliance Test Enable Disable Mode PCI-E ASPM Support Per individual port...
  • Page 65 HA401-VG User Manual Chapter 4 BIOS Configuration Settings Enable Disable Enable Disable Enable Disable NFER Enable Disable Enable Disable SEFE Enable Disable SENFE Enable Disable SECE Enable Disable PME SCI Enable Disable Hot Plug Enable Disable Advanced Error Enable Disable...

  • Page 66: 4.4.5 H2O Ipmi Configuration

    Chapter 4 BIOS Configuration Settings HA401-VG User Manual Auto Non Snoop Latency Manual Override Disable Non Snoop Min=0, Max=102 Latency Value PCH sSATA PCH PCIe LTR Configuration Configuration 1 ns 32 ns Non Snoop Latency 1024 ns 32768 ns Multiplier...

  • Page 67: H2O Event Log Config Manager

    HA401-VG User Manual Chapter 4 BIOS Configuration Settings 4.4.6 H2o Event Log Config Manager H2o Event Log Config Manager Console Serial Enable Disable Redirect VT_100 VT_100+ Terminal Type VT_UTF8 PC_ANSI 1200 2400 4800 9600 Baud Rate 19200 38400 57600 115200...

  • Page 68: Security

    Chapter 4 BIOS Configuration Settings HA401-VG User Manual 4�5 Security Security Option Key: 4�5�1 Security Security Current TPM Not Detected TPM 1.2 TPM 2.0 Device TrEE Protocol Version Available Hidden Availability No operation Disable and Deactivate Enable and Activate Operation...

  • Page 69: Power

    HA401-VG User Manual Chapter 4 BIOS Configuration Settings 4�6 Power Power Option Key: 4�6�1 Power Power Wake on PME Enable Disable...

  • Page 70: Boot

    Chapter 4 BIOS Configuration Settings HA401-VG User Manual 4�7 Boot Boot Option Key: 4�7�1 Boot Boot Boot Type Dual Boot Type Legacy Boot Type UEFI Boot Type Quick Boot Enable Disable Quiet Boot Enable Disable Network Stack Enable Disable PXE Boot to...

  • Page 71: Exit

    HA401-VG User Manual Chapter 5. BMC Configuration Settings 4�8 Exit Exit Option Key: 4�8�1 Exit Save and Exit Exit Saving Changes Exit system setup and save your changes. Save Change Without Save your changes without exiting the system. Exit Exit Discarding Discard your changes when existing the system.

  • Page 72: Chapter 5. Bmc Configuration Settings

    Chapter 5. BMC Configuration Settings Spica User Manual HA401-VG User Manual Chapter 5. BMC Configuration Settings Insert Ethernet LAN cable into the BMC LAN port. BMC management port (Dedicated NIC channel 1 ) 2 x 10GbE SFP+ (Shared NIC channel 8) 5�1 Network Settings...
  • Page 73 HA401-VG User Manual Chapter 5. BMC Configuration Settings...
  • Page 74 HA401-VG User Manual Chapter 5. BMC Configuration Settings Step 3 Input the subnet mask address.

  • Page 75: Web Gui

    HA401-VG User Manual Chapter 5. BMC Configuration Settings 5�2 Web GUI The IP address below is an example using the default IP setting. The IP address is configurable. Step 1 Open the browser then type default BMC IP address: 192.168.22.22 Step 2 Use the default user name and password for first-time login to BMC WEB GUI.

  • Page 76: Settings

    HA401-VG User Manual Chapter 5. BMC Configuration Settings 5�2�1 Dashboard The Dashboard page gives the overall information about the status of a device. 5�2�2 Server Health - Sensor Readings Then Sensors Readings page displays all the sensor related information. 5�2�3 Settings...

  • Page 77: Remote Control

    HA401-VG User Manual Chapter 5. BMC Configuration Settings 5�2�4 KVM Mouse Setting The KVM Mouse Setting page displays the setting for mouse emulation from local window to remote screen. • For Windows OS environment, set mode to absolute. • For Linux OS environment, set mode to relative.
  • Page 78 HA401-VG User Manual Chapter 5. BMC Configuration Settings Environmental setting:...

  • Page 79: Chapter 6� Technical Support

    Chapter 6� Technical Support Taiwain, Global Headquarters South California, United States Address: No� 152, Section 4, Address: 21808 Garcia Lane Linghang N� Rd, Dayuan District, City of Industry, CA 91789, Taoyuan City 337, Taiwan United States Tel: +886-3-433-9188 Toll free: +7-4997019998 Fax: +886-3-287-1818 Tel: +1-909-895-8989 Sales Email: sales@aicipc�com�tw...
