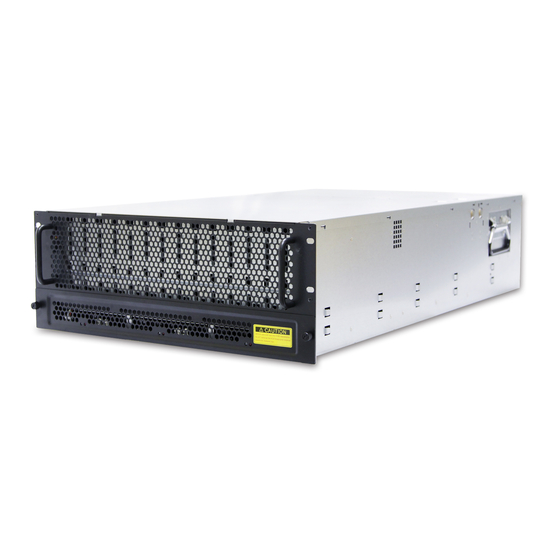

AIC JBOD Series User Manual
  1. Manuals
  2. Brands
  3. AIC Manuals
  4. Server
  5. JBOD Series
  6. User manual

AIC JBOD Series User Manual

12gb/s sas
Hide thumbs Also See for JBOD Series:
Table of Contents

Advertisement

Quick Links

Download this manual
J4060-02
12Gb/s SAS JBOD Series
User's Manual
UM_J4060-02_v3.1_121619

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBOD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIC JBOD Series

Summary of Contents for AIC JBOD Series

  • Page 1 J4060-02 12Gb/s SAS JBOD Series User's Manual UM_J4060-02_v3.1_121619...

  • Page 2: Table Of Contents

    3.5.1 How to enable/disable T10 zoning ..............23 3.5.2 How to configure T10 zoning ................24 3.5.3 How to get all revisions in AIC SAS 12G Expander ........26 3.5.4 How to configure temperature sensor(HUB only) .......... 27 3.5.5 How to configure enclosure address .............. 28 3.5.6 How to configure standby timer for all disk drives(EDGE only) ....
  • Page 3 3.5.7 How to configure wide port checker ............... 30 3.5.8 How to configure serial number ..............32 3.5.9 How to power off/on all disk drives automatically ........33 3.5.10 How to configure EDFB (EDGE only) ............. 34 3.5.11 How to configure power setting (HUB only) ..........35 3.5.12 How to configure zone count ................
  • Page 4 Copyright © 2017 AIC, Inc� All Rights Reserved� This document contains proprietary information about AIC products and is not to be disclosed or used except in accordance with applicable agreements.
  • Page 5 Document Release History Release Date Version Update Content 2017 Manual release to public. June 2018 December 1. New cover 2019 2. BMC update...

  • Page 6: Preface

    Disclaimer AIC shall not be liable for technical or editorial errors or omissions contained herein. The information provided is provided "as is" without warranty of any kind. To the extent permitted by law, neither AIC or its affiliates, subcontractors or suppliers will be liable for incidental, special or consequential damages including downtime cost;...

  • Page 7: Safety Instructions

    Safety Instructions Before getting started, please read the following important cautions: • All cautions and warnings on the equipment or in the manuals should be noted. • Most electronic components are sensitive to electrical static discharge. Therefore, be sure to ground yourself at all times when installing the internal components. •...
  • Page 8 • If one of the following situations arise, the equipment should be checked by service personnel: 1. The power cord or plug is damaged. 2. Liquid has penetrated the equipment. 3. The equipment has been exposed to moisture. 4. The equipment does not work well or will not work according to its user manual. 5.

  • Page 9: About This Manual

    This document pellucidly presents a brief overview of the product design, device installation, and firmware settings for J4060-02. For the latest version of this user's manual, please refer to the AIC website: https://www.aicipc.com/en/productdetail/10830.

  • Page 10: Chapter 1� Product Features

    Chapter 1� Product Features J4060-02 User Manual Chapter 1. Product Features J4060-02 is a 4U high density JBOD with 60 hot swappable drive bays and hotswappable fans. For more information about our product, please visit our website at https://www.aicipc.com/en/productdetail/10830. Before removing the subsystem from the shipping carton, visually inspect the physical condition of the shipping carton.

  • Page 11: Specifications

    J4060-02 User Manual Chapter 1. Product Features 1.2 Specifications Number of Expander Single 100~240V AC full range Universal A/C Input Option : 336HVDC or -48DC Broadcom SAS35x36R + Expander Chip General Broadcom SAS35x28R Operating Temperature : 0ºC to 35ºC Electrical and Environment Relative humidity : 20% to 80% Host/Expansion...
  • Page 12 J4060-02 User Manual Chapter 1. Product Features Front Panel Rear Expander Panel BMC LAN port BMC console port Debug port Console port 3 x Mini SAS HD...
  • Page 13 J4060-02 User Manual Chapter 1. Product Features Rear Panel 800W 1+1 redundant Hot-swappable cooling fans Single expander...

  • Page 14: 8644 With Zoning Configuration And 8644 Port Definition

    J4060-02 User Manual Chapter 1. Product Features 1.4 8644 with Zoning Configuration and 8644 Port Definition There are 3 kinds of zoning options that can be implemented by Command Line interface operation (see Chapter 3 for reference). By using the zoning option, three of the 8644 ports will have a variety of zone group settings.
  • Page 15 J4060-02 User Manual Chapter 1. Product Features Zone count 1: (default) 60 drives per zone. All SFF8644 ports and drives are at the same zone group.(SEE FIGURE BELOW). Top View Top View Top View Top View 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 Left Edge Center Edge...
  • Page 16 J4060-02 User Manual Chapter 1. Product Features Zone count 2: 30 drives per zone. Port 1 at zone group 1, Port 2 at zone group 2 (SEE FIGURE BELOW). Top View Top View Top View Top View 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 GROUP2 Left Edge...
  • Page 17 J4060-02 User Manual Chapter 1. Product Features Zone count 3: 20 drives & Port 1 are at zone group 1, 20 drives & Port 2 are at zone group 2, 20 drives & Port 3 are at zone group 3. (SEE FIGURE BELOW) Top View Top View...

  • Page 18: Chapter 2� Hardware Setup

    Chapter 2� Hardware Setup J4060-02 User Manual Chapter 2. Hardware Setup 2�1 Top Cover  Press the release button on both sides of the chassis and push the top cover.  Lift the cover upward to remove. 2�2 Power Supply Unit Module ...

  • Page 19: 2�3 Fan Module

    J4060-02 User Manual Chapter 2. Hardware Setup 2�3 Fan Module  Loosen the thumb screws on the fan module.  Pull the fan module out of the chassis.  Align the new fan module with the opening in the enclosure. ...

  • Page 20: 2�4 Disk Drive Module

    J4060-02 User Manual Chapter 2. Hardware Setup 2�4 Disk Drive Module 2�4�1 HDD  Pull the ejector lever outward.  Pull the tray from the chassis.  Insert the hard disk drive into the tray. Ensure that the dimples on the tray match the hard disk drive.

  • Page 21: Drive Slot Map

    J4060-02 User Manual Chapter 2. Hardware Setup 2�4�2 Drive Slot Map The drive slot map follows. Left Edge Left Edge Left Edge Center Edge Center Edge Center Edge Right Edge Right Edge Right Edge Expander Expander Expander Expander Expander Expander Expander Expander Expander...

  • Page 22: 2�5 Hdd Backplane Module

    J4060-02 User Manual Chapter 2. Hardware Setup 2�5 HDD Backplane Module  Loosen both sides of the front panel to release LED cover.  Hold the backplane module to pull the backplane module out of the chassis.  Slide the new HDD backplane module into JBOD and close the lever. ...

  • Page 23: 2�7 Bmc Module

    J4060-02 User Manual Chapter 2. Hardware Setup 2�7 BMC Module  Remove the expander module from the chassis. Please refer to section 2.4.  Place the BMC module on the Expander Module. Make sure to match the screw holes.  Secure the screws. ...

  • Page 24: 2�8 Slide Rail Installation

    J4060-02 User Manual Chapter 2. Hardware Setup 2�8 Slide Rail Installation To install the slide rail, please refer to the manual in the slide rail kit. Secure the side of th rail with at least one screw. NOTE The product installation position is less than 1 meter in height from the supporting surface.

  • Page 25: Chapter 3. Sub-System Configuration Setup

    AIC 12G Expander Controller NOTE To have multiple host access support (the host number can be up to the number of wide ports on each AIC 12G expander controller), only the followng drives are supported for shared access: 1. SAS drive 2.

  • Page 26: 3�2 Connect Host To Jbod Via Rs232

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�2 Connect Host to JBOD via RS232 Use a RS-232 DB9 cable to connect the console port of JBOD with host's PC COM port (see figures below for DB9 RS-232 cable and SAS expander COM port). 3�3 Utility Setup on Host Step 1 Set up host RS232 connection Set up RS232 connection application into your host as shown in the example process...
  • Page 27 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup Step 3 Enter a new name for the icon in the field below and click OK. Step 4 Connect by using selecting an option in the drop down menu circled in red below (we selected COM2 in this example) and click OK.
  • Page 28 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup Step 5 Under “Bits per second,” select 38400. Under “Flow control,” select "None." Click OK when you have finished your selections. Step 6 After step 5, you will enter hyper terminal screen. Please press the "Enter" key and the cmd line will appear on the screen.

  • Page 29: 3�4 Updating Firmware And Mfg Through Console Port

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�4 Updating Firmware and MFG through Console Port Step 1 Please input “fdl 0 0” in command line to update the firmware. Step 2 Select the tool bar ''Transfer'' ''Send File'' within 10 seconds.
  • Page 30 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup Step 3 Select the Firmware file and set the Protocol type as “Xmodem.” Then press the “Send” button. Step 4 After completing the FW update, “ Buffer Download Complete” will show on the screen.
  • Page 31 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup Step 5 Input “fdl 83 0” in commond line to update the MFG. Step 6 Go to the Transfer menu and then select “Send file” within 10 seconds. Step 7 Select the MFG file and set the Protocol type as “Xmodem.” Then press the “Send”...

  • Page 32: How To Enable/Disable T10 Zoning

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�5�1 How to enable/disable T10 zoning The default T10 zoning configuration is off. (A) Check the current zoning state cmd> phyzone state Zoning is OFF (B) Enable zoning cmd> phyzone on (C) Disable zoning cmd>...

  • Page 33: How To Configure T10 Zoning

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.2 How to configure T10 zoning After enabling T10 zoning, 5 predefined groups are Group1, Group8, Group9, Group10 and Group11. Each PHY should be in one of the 5 groups, and all PHYs in a wide port should be in the same group.
  • Page 34 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup cmd > cmd > cmd > cmd > cmd > cmd > cmd > cmd > cmd > cmd > cmd > cmd >phyzone 16 Phy 16 for Zone Group 1 cmd >_ cmd >phyzone 16 9 Succeeded to set zone group for the phy cmd >phyzone 17 9...

  • Page 35: How To Get All Revisions In Aic Sas 12G Expander

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�5�3 How to get all revisions in AIC SAS 12G Expander (A) Expander firmware revision cmd> rev (B) Expander configuration revision cmd> showmfg (C) MCU firmware revision or sensor information (MCU firmware revision is reported by Hub only) cmd>...

  • Page 36: How To Configure Temperature Sensor(Hub Only)

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.4 How to configure temperature sensor(HUB only) Four temperature settings in Celsius are T1, T2, warning threshold, and alarm (critical) threshold. The T1, T2 and alarm (critical) threshold are applied to the smart fan funcion.

  • Page 37: How To Configure Enclosure Address

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.5 How to configure enclosure address (A) Get the current enclosure address cmd> enclosure_addr Enclosure Address: 0x500605B0000272BF (B) Set the enclosure address with 0x500605B0000272BF. The new setting will take effect after reset. cmd>...

  • Page 38: How To Configure Standby Timer For All Disk Drives(Edge Only)

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.6 How to configure standby timer for all disk drives(EDGE only) This feature is applicable for SAS/SATA drives. Standby timer is in units of minutes. Setting standby timer with 0 minute disables this feature. (A) Get current standby timer cmd>...

  • Page 39: How To Configure Wide Port Checker

    This feature is applicable for SAS drives instead of SATA drives. If there is no connection with any active SAS initiator by checking all wide ports, AIC Expander Controller stops all attached SAS drives to save power consumption of SAS drives.
  • Page 40 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup...

  • Page 41: How To Configure Serial Number

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.8 How to configure serial number (A) Get the current serial number cmd> serial_number E x p a n d e r n u m b e r: 4 2 1 - 1 2 0 2 1 7 0 4 5 1 0 0 1 0 o r E x p a n d e r n u m b e r: 4 2 1 - 12021704510010 Enclosure number: 526-12071100500088 (B) Only set Expander serial number with 421-12021704510010.

  • Page 42: How To Power Off/On All Disk Drives Automatically

    3�5�9 How to power off/on all disk drives automatically This feature is applicable for SAS/SATA drives. If there is no connection with any active SAS initiator by checking all wide ports, AIC Expander Controller powers off all attached SAS/SATA drives to save power consumption. Otherwise, AIC Expander Controller powers on all attached SAS/SATA drives to provide drive access service to any active SAS initiator.

  • Page 43: How To Configure Edfb (Edge Only)

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.10 How to configure EDFB (EDGE only) The default EDFB configuration is off. (A) Check the current configuration cmd> edfb EDFB is OFF (B) Enable the edfb cmd>edfb on (C) Disable the edfb cmd>...

  • Page 44: How To Configure Power Setting (Hub Only)

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.11 How to configure power setting (HUB only) This feature is for restoring on AC power loss. Three supported options are "keep off", "keep on", and "keep last state". The default setting is "keep off". (A) Get the current power setting cmd>...
  • Page 45 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup...

  • Page 46: How To Configure Zone Count

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.5.12 How to configure zone count Remove the SAS cable between the HBA/RAID card and the J4U60-02 before configuring zone count. Power the J4U60-02 off after configuring zone count. Power on the J4U60-02, and then insert the SAS cable. Three zone configurations supported are one zone(default), two zones, and three zones.
  • Page 47 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup (C) Predefined zones follow. (C-1) When Zone Count = 1, T10 zoning is disabled. HUB: Zone # Wideport 1,2,3 EDGE: Zone # Slot 1~60 (C-2) When Zone Count = 2, T10 zoning is enabled. No disk could be seen if we connect HBA/RAID card with port 3 of HUB.

  • Page 48: 3�6 Ses Inband Features

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�6 SES Inband Features To ensure J4060-02 can work properly and provide high performance, durability. J4060- 02 has implemented SCSI Enclosure Services to monitor the status of power supply, system cooling fan and working temperature. It also has the indicators to deliver the status of fail devices such as power supply or cooling fan.

  • Page 49: Implementation On Ses

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�6�3 Implementation on SES Pages 3.6.3.1 SES String In Page (HUB only) Get PMBUS information with String In Page. String In Format BYTE/BIT I2C congestion status (0: no congestion, 1: congestion or failure) PSU Module1 STATUS_WORD PSU Module2 STATUS_WORD 5-14...
  • Page 50 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.6.3.3 SES Vendor specific page: Canister Number ( page code 83h) Out / In The length N of canister number can be 0~30 bytes. If no canister number is entered (N=0), then canister number is restored to default: 0x20 0x20 0x20 0x20 0x20 0x20 0x20 0x20 (8 spaces in ASCII).

  • Page 51: Implementation On Ses Elements

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�6�4 Implementation on SES Elements Only the fields highlighted in green are supported. 3.6.4.1. Power Supply Element (A) Power Supply Control Element BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST Reserved IDENT Reserved...
  • Page 52 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.6.4.2 Cooling Element (HUB only) (A) Cooling Control Element BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST Reserved IDENT Reserved RQST FAIL RQST ON Reserved REQUESTED SPEED CODE Field Value RQST IDENT Please refer to section “SES Element Control Functions”...
  • Page 53 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.6.4.3 Temperature Sensor Element (A) Temperature Sensor Control Element BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST RQST FAIL Reserved IDENT Reserved Reserved (B) Temperature Sensor Status Element BYTE/BIT COMMON STATUS Reserved PRDFAIL DISABLE SWAP...
  • Page 54 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.6.4.4 Enclosure Element (A) Enclosure Control Element (HUB only) BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST Reserved IDENT POWER CYCLE POWER CYCLE DELAY REQUEST REQUEST REQUEST POWER OFF DURATION FAILURE WARNING Field...
  • Page 55 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.6.4.5 Voltage Element (A) Voltage Control Element BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST RQST FAIL Reserved IDENT Reserved Reserved (B) Voltage Status Element BYTE/BIT COMMON STATUS Reserved PRDFAIL DISABLE SWAP ELEMENT STATUS CODE...
  • Page 56 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3.6.4.6 Array Device Element (EDGE only) (A) Array Device Control Element BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST RQST RQST RQST IN RQST RQST HOT RQST R/R RQST OK RSVD CONS IN CRIT...
  • Page 57 J4060-02 User Manual Chapter 3. Sub-system Configuration Setup (B) Array Device Status Element BYTE/BIT COMMON STATUS Reserved PRDFAIL DISABLE SWAP ELEMENT STATUS CODE RSVD IN CRIT IN FAILED REBUILD/ HOT SPARE CONS CHK DEVICE ARRAY ARRAY REMAP ABORT DO NOT ENCLOSURE ENCLOSURE READY TO...

  • Page 58: Ses Element Control Functions

    J4060-02 User Manual Chapter 3. Sub-system Configuration Setup 3�6�5 SES Element Control Functions 3.6.5.1 LED indicators (blue and red) associated with an attached disk drive (EDGE only) Array Device Slot control element BYTE/BIT COMMON CONTROL SELECT PRDFAIL DISABLE RST SWAP Reserved RQST RQST...
  • Page 59 We use the software package "sg3_utils" on Linux for example, and have a SAS HBA and a cable to connect your host with the expander. (A) Show the device for AIC Expander Controller (canister) $ sg_map -i /dev/sg2 AIC 12G 4U60: Edge-L 0c2a (B) Get the current state of a slot power.
  • Page 60 Linux for example, and have a SAS HBA and a cable to connect your host with the expander. (A) Show the device for AIC Expander Controller (canister) on a disk backplane $ sg_map -i /dev/sg2 AIC 12G 4U60: Edge-L 0c2a...
  • Page 61 "sg3_utils" on Linux for example, and have a SAS HBA and a cable to connect your host with the expander. (A) Show the device for AIC Expander Controller (canister) $ sg_map -i /dev/sg2 AIC 12G 4U60: Hub 0c29...
  • Page 62 Clear the bit to disable the identity. We use the software package "sg3_utils" on Linux for example, and have a SAS HBA and a cable to connect your host with the expander. (A) Show the device for AIC Expander Controller (canister) $ sg_map -i...
  • Page 63 We use the software package "sg3_utils" on Linux for example, and have a SAS HBA and a cable to connect your host with the expander. (A) Show the device for AIC Expander Controller (canister) $ sg_map -i /dev/sg2 AIC 12G 4U60: Hub 0c29...
  • Page 64 We use the software package "sg3_utils" on Linux for example, and have a SAS HBA and a cable to connect your host with the expander. (A) Show the device for AIC Expander Controller (canister) $ sg_map -i /dev/sg2 AIC 12G 4U60: Hub 0c29 (B) Set "RQST IDENT"...

  • Page 65: Chapter 4. Bmc Configuration Settings

    Chapter 4. BMC Configuration Settings J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�1 Login Open a web browser and enter the default IP http://192�168�11�11. When the login window appears, set the user name and password to ''admin''. Click Log In to continue. Type the default account and password Account:admin Password:admin...

  • Page 66: 4�2 Sensor's Location For Fan And Temperature

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�2 Sensor's Location for Fan and Temperature EXP: expander chip Fan2(up) Fan0(up) Fan3(down) Fan1(down) (EXP) (EXP) T2 T2 T0 T0 FRONT...

  • Page 67: 4�3 Utility Setup On Host

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�3 Utility Setup on Host Please refer to Section 3.2 4�4 Connect Host to BMC by RS232 1. Type the “[” and it will show the IPMI serial interface. Type in the command for logging in the interface. #[sys pwd –u admin admin ] It will response [OK] Type in the command for checking the BMC default IP.
  • Page 68 J4060-02 User Manual Chapter 4. BMC Configuration Settings 2. Find LAN information Find LAN static IP /DHCP [30 00 02 01 04 00 00 ] Find LAN IP [30 00 02 01 03 00 00 ] Find submask [30 00 02 01 06 00 00 ] Find gateway [30 00 02 01 0C 00 00 ] Get LAN static IP /DHCP: 01 is static IP, 02 is DHCP�...
  • Page 69 J4060-02 User Manual Chapter 4. BMC Configuration Settings 3. Set LAN information Set LAN information Set LAN static IP /DHCP [30 00 01 01 04 01/02 ] Set LAN IP [30 00 01 01 03 C0 A8 00 0A ] Set submask [30 00 01 01 06 FF FF FF 00 ] Set gateway...

  • Page 70: 4�5 Bmc Led Signal

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�5 BMC LED Signal There are have two LEDs under the BMC console. Blue LED Light- Identify LED. Red LED Light- When the light keep blinking, means BMC got error.    ...

  • Page 71: 4�6 Web

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�6 Web UI 4�6�1 Dashboard Device Information Displays the Firmware Revision and Firmware Build Time (Date and Time). Network Information Shows network settings for the device. Click on the link Edit to view the Network Settings Page.

  • Page 72: Fru Information

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�6�2 FRU information This page displays the BMC FRU file information. On selecting a particular FRU Device ID its corresponding FRU information will be displayed. Basic Information It displays the FRU device ID and device name for the selected FRU device ID. Product Information Chassis Information It displays the following Product...

  • Page 73: Hard Disk Status

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�6�3 Hard Disk Status This page displays all the HDD power on/off status, using the "Power On" and "Power Off" button to control HDD status. ACTIONS Power On Select a HDD to turn it power on. Power off Select a HDD to turn it power off.

  • Page 74: Storage Health

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�6�4 Storage Health 4.6.4.1 Sensor Readings A list of sensor readings will be displayed here. Click on a record to show more information about that particular sensor, including thresholds and a graphical representation of all associated events.
  • Page 75 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.4.2 Event Log This page displays the list of events incurred by different sensors on this device. Double click on a record to see the details of that entry. You can also sort the list of entries by clicking on any of the column headers.

  • Page 76: Configuration

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5 Configuration 4.6.5.1 DNS This page is used to configure the Host name and Domain Name Server configuration of the device. Host configuration Host Settings Choose either Automatic or Manual settings. Host Name It displays the hostname of the device if Auto is selected. If the Host setting is chosen as Manual, then specify the hostname of the device.
  • Page 77 J4060-02 User Manual Chapter 4. BMC Configuration Settings Domain Name Server Configuration DNS Server Settings It lists the options for the DNS interface, Manual and available LAN interfaces. IP Priority If the IP Priority is IPv4, it will have 2 IPv4 DNS servers and 1 IPv6 DNS server.
  • Page 78 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.2 Network This page is used to configure the network settings for available LAN channels. LAN Interface Select the LAN interface to be configured. LAN Settings Check this option to enable LAN support for the selected interface. MAC Address This field displays the MAC address of the selected interface (read only).
  • Page 79 J4060-02 User Manual Chapter 4. BMC Configuration Settings Obtain an IP address automatically Enable ‘Use DHCP’ to dynamically configure the IPv4 address using Dynamic Host Configuration Protocol (DHCP). IPv6 Address Specify a static IPv6 address to be configured for the selected interface. Subnet Prefix length Specify the subnet prefix length for the IPv6 settings.
  • Page 80 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.3 Network Link This page is used to configure the network link option for the available network interfaces. LAN Interface Select the network interface from the list for which the Link speed and duplex mode are to be configured.
  • Page 81 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.4 NTP This page displays the device’s current Date & Time Settings. It can be used to configure either Date & Time or NTP (Network Time Protocol) server settings for the device. Date Specify the current Date for the device.
  • Page 82 J4060-02 User Manual Chapter 4. BMC Configuration Settings UTC Offset UTC Offset list contains the UTC offset values for the NTP server, which can be used to display the exact local time. NOTE Use the correct UTC Offset after adjusting for DST. to automatically synchronize. Check this option to automatically synchronize Date and Time with the NTP Server.
  • Page 83 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.5 PEF This page is used to configure the Event Filter, Alert Policy and LAN Destination. To view the page, the user must at least be an Operator. To modify or add a PEF, the user must be an Administrator.
  • Page 84 J4060-02 User Manual Chapter 4. BMC Configuration Settings NOTE Test Alerts can be sent only with SMTP Configurations set to enabled. SMTP support can be enabled under Configuration  SMTP Select a free slot and click ‘Add’ to add a new entry to the device. Alternatively, double click on a free slot.
  • Page 85 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.6 SMTP This page is used to configure the SMTP settings. LAN Channel Number Select the LAN channel to which the SMTP information needs to be configured. Sender Address Enter the ‘Sender Address’ valid on the SMTP Server. Machine Name Enter the ‘Machine Name’...
  • Page 86 J4060-02 User Manual Chapter 4. BMC Configuration Settings NOTE SMTP Server Authentication types supported are: • CRAM-MDS • Login • Plain If the SMTP server does not support any of the above authentication types, the user will get an error message stating "authentication type is not supported by SMTP server." Username Enter the username to access SMTP Accounts.
  • Page 87 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.7 Schedule This page displays the device's current date & time. It can be used to configure dates within a week or specific a date to power on/off the device. If you want to change the device date & time, please go to the NTP page�...
  • Page 88 J4060-02 User Manual Chapter 4. BMC Configuration Settings ACTIONS Enable schedule Check this option for enable/disable the schedule. Action Check a action to do power on/off for the device. Set days for action Setting dates within a week to do power on/off for the device. Date Specify a date for the device.
  • Page 89 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.5.8 User The displayed table shows any configured Users and available slots. You can modify or add new users from here. A maximum of 10 slots are available, including the default admin and anonymous. It is advised that the anonymous user’s privilege and password should be modified as a security measure.

  • Page 90: Remote Control

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�6�6 Remote Control 4.6.6.1 Storage power control This page helps you to view or perform any host power cycle operations. Reset Expander Select an expander to do cold reset. Power Off Storage Select this option to immediately power off the storage.
  • Page 91 J4060-02 User Manual Chapter 4. BMC Configuration Settings 4.6.6.2 JAVA SOL Launch the Java SOL, you must have Administrator privileges. Choose an expander that can use smart console in Java SOL. Volatile-Bit-Rate Please set 38.4K Non-Volatile-Bit-Rate Please set 38.4K This function can connect to expander command line mode.

  • Page 92: 4�7 Firmware Update

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�7 Firmware Update 4�7�1 Requirement Browsers: FireFox 24.0 or later version Chrome 35.0 or later version I.E. 7.0 or later version Linux: Redhat 6.4 NOTE If you want to update a new version firmware for BMC, please clear the web browser cookies when the update process is complete.
  • Page 93 J4060-02 User Manual Chapter 4. BMC Configuration Settings 3. This is login main page. 4. Click the “Firmware Update” “Firmware Update”...
  • Page 94 J4060-02 User Manual Chapter 4. BMC Configuration Settings 5. This page will show the update warning . If you really want to update the BMC firmware, click the “Enter Update Mode” button. 6. Wait few minutes, it will pop a window. Click the “Select file” to upload firmware file that you want to update.
  • Page 95 J4060-02 User Manual Chapter 4. BMC Configuration Settings 7. Wait a few minutes, it will pop a window for checking update section. Check the “Check this option to do all full firmware flash” option. 8. Click “OK” and the firmware will start the update process.
  • Page 96 J4060-02 User Manual Chapter 4. BMC Configuration Settings 9. In the update process, it will take 3~5 minutes. NOTE Please do not close this webpage during the update process to prevent the system from crashing down. 10. When “Device has been reset” window appears, it means the firmware update is successful.

  • Page 97: 4�8 Expander Firmware Update

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�8 Expander Firmware Update 1. Click the “Firmware Update”and it will pop a drop-down menu. Click the “Expand Update.” 2. Choose the expander firmware file that you want to update.
  • Page 98 J4060-02 User Manual Chapter 4. BMC Configuration Settings 3. Choose the expander firmware file and then click the “upload” button. 4. Click the ''Proceed'' button.
  • Page 99 J4060-02 User Manual Chapter 4. BMC Configuration Settings 5. Processing. 6. Update successful.
  • Page 100 J4060-02 User Manual Chapter 4. BMC Configuration Settings 7. If the update processes is not successful, please check the version of the expander firmware whether if the system is turned off.

  • Page 101: 4�9 Firmware Safety Mode

    J4060-02 User Manual Chapter 4. BMC Configuration Settings 4�9 Firmware Safety Mode If your update process fails or the primary firmware suffers some error, it will boot into safety mode. 1. If you see the sensor name, status LED and ID LED are abnormal, the LEDs are cross blinking, it means the firmware is in safety mode.
  • Page 102 J4060-02 User Manual Chapter 4. BMC Configuration Settings    ...
  • Page 103 J4060-02 User Manual Chapter 4. BMC Configuration Settings 2. Please clear browser cookies and re-start browser. The BMC web UI will refresh web page object. 3. Click the “BMC Reset” button to enter the reset page 4. Select the “BMC reset”and Click the “Perform Action” button.
  • Page 104 J4060-02 User Manual Chapter 4. BMC Configuration Settings 5. The page will show “Requesting” status. This web page will be invalid because of resetting the BMC. Wait 90 seconds and clear browser cookies to re-login to the web UI again. 6.

  • Page 105: Chapter 5� Technical Support

    Chapter 5� Technical Support Chapter 1 Product Introduction Chapter 1 Product Introduction Taiwain, Global Headquarters South California, United States Address: No� 152, Section 4, Address: 21808 Garcia Lane Linghang N� Rd, Dayuan District, City of Industry, CA 91789, Taoyuan City 337, Taiwan United States Tel: +886-3-433-9188 Toll free: +7-4997019998...
