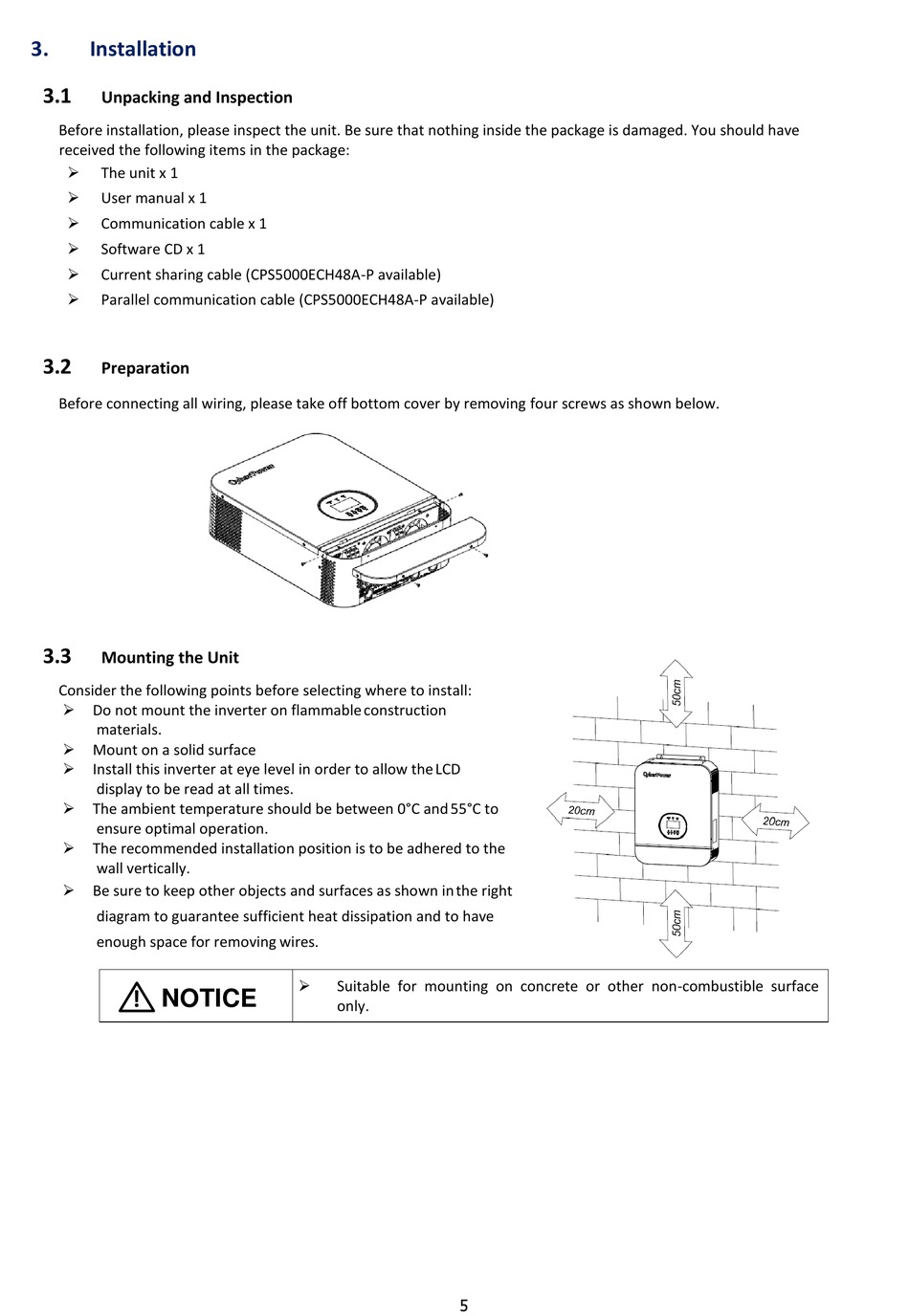

Installation

3.1

Unpacking and Inspection

Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have
received the following items in the package:

The unit x 1

User manual x 1

Communication cable x 1

Software CD x 1

Current sharing cable (CPS5000ECH48A-P available)

Parallel communication cable (CPS5000ECH48A-P available)
3.2

Preparation

Before connecting all wiring, please take off bottom cover by removing four screws as shown below.
3.3

Mounting the Unit

Consider the following points before selecting where to install:

Do not mount the inverter on flammable construction
materials.

Mount on a solid surface

Install this inverter at eye level in order to allow the LCD
display to be read at all times.

The ambient temperature should be between 0°C and 55°C to
ensure optimal operation.

The recommended installation position is to be adhered to the
wall vertically.

Be sure to keep other objects and surfaces as shown in the right
diagram to guarantee sufficient heat dissipation and to have
enough space for removing wires.
!
NOTICE

Suitable for mounting on concrete or other non-combustible surface
only.
