Step 6: Re-connect 2-pin and 14-pin to original position.
Step 7: Put communication board back to the unit.
Step 8: Put wire cover back to the unit. Now the inverter is providing parallel operation function.
3.10.2
Mounting the Unit

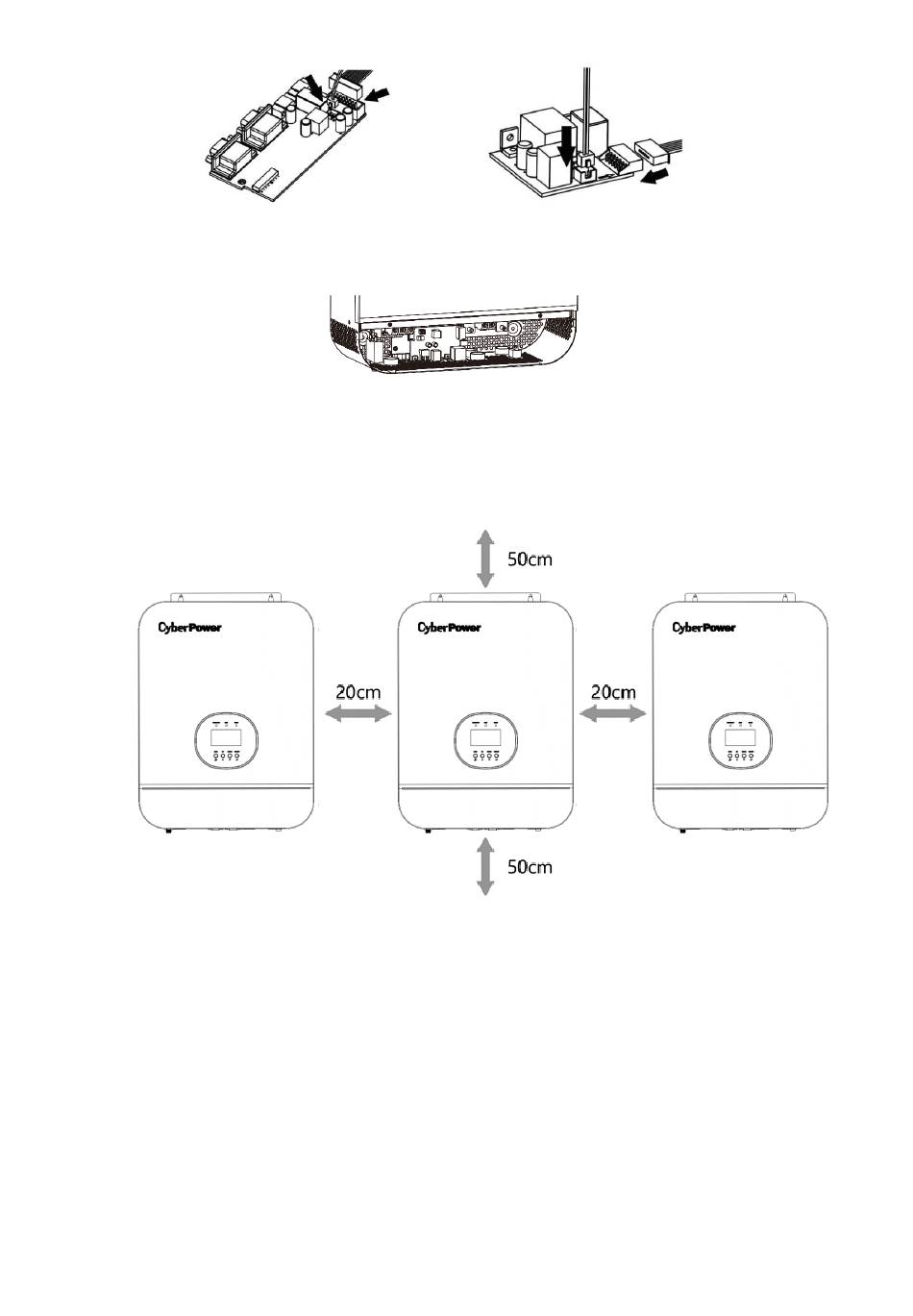

When installing multiple units, please follow below chart.
NOTE:
For proper air circulation to dissipate heat, allow a clearance of approx. 20cm to the side and approx. 50 cm above and
below the unit. Be sure to install each unit in the same level.
Parallel board
13
Communication board
