Operation

4.1

Power ON/OFF

Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located
on the button of the case) to turn on the unit.
4.2

Operation and Display Panel

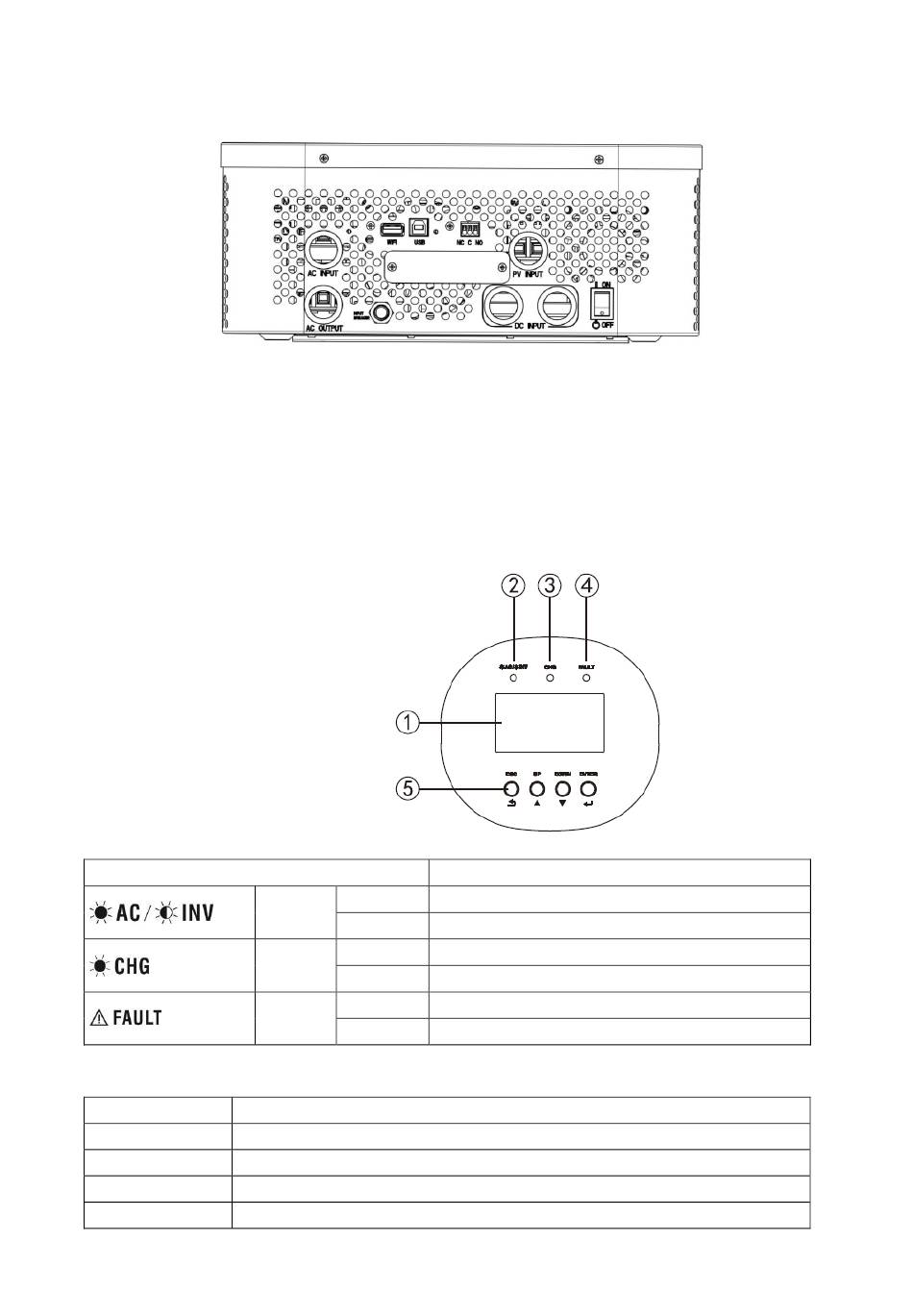

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three
indicators, four function keys and a LCD display, indicating the operating status and input/output power
information.
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
LED Indicator
Function Buttons
Button
ESC
UP
DOWN
ENTER
LED Indicator
Solid On
Green
Flashing
Solid On
Green
Flashing
Solid On
Red
Flashing
Description
To exit setting mode
To go to previous selection
To go to next selection
To confirm the selection in setting mode or enter setting mode
Messages
Output is powered by utility in Line mode.
Output is powered by battery or PV in battery mode.
Battery is fully charged.
Battery is charging.
Fault occurs in the inverter.
Warning condition occurs in the inverter.
