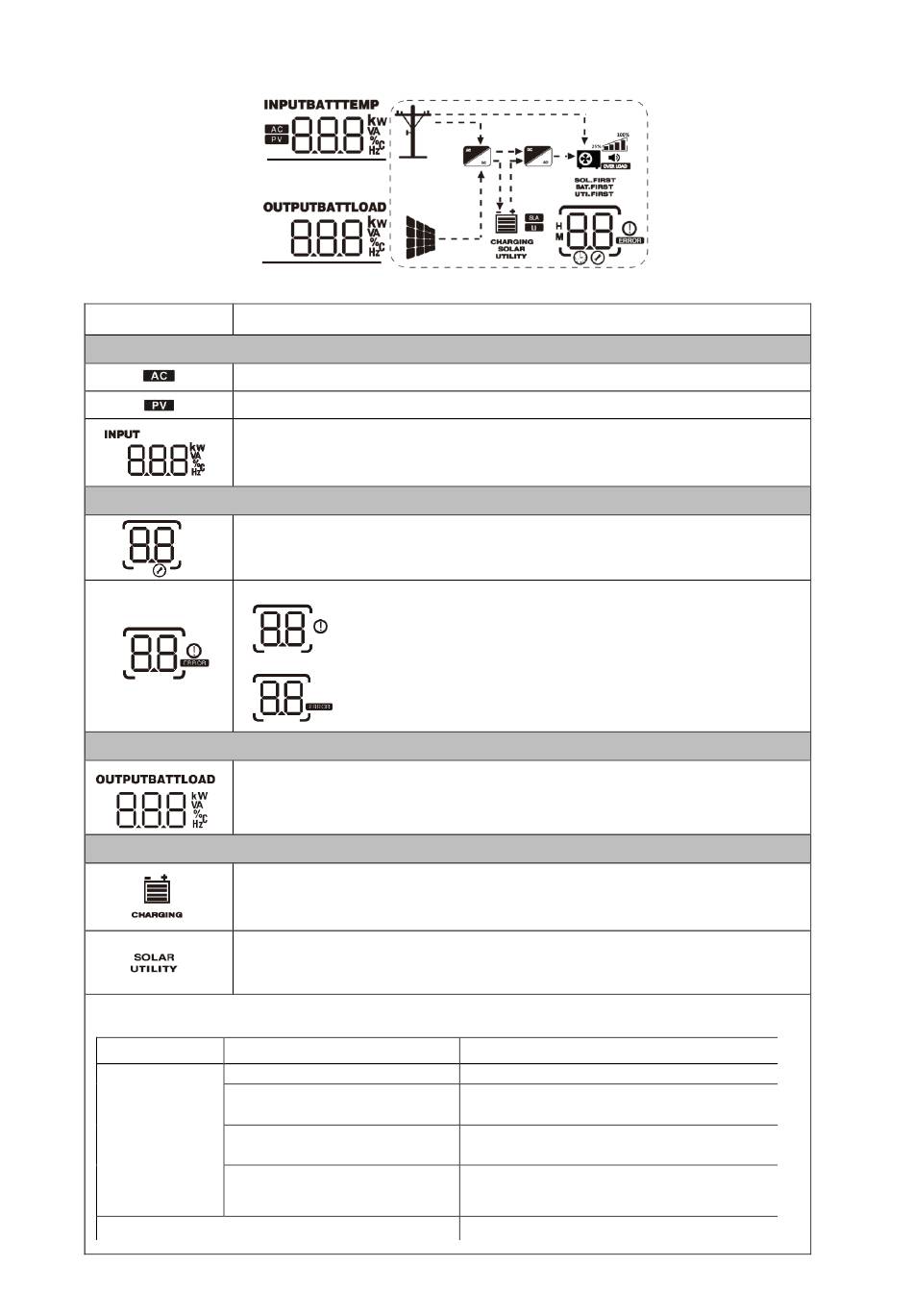

4.2.1 LCD Display Icons
Icon
Input Source Information
Configuration Program and Fault Information
Output Information
Battery Information
In AC mode, it will present battery charging status.
Status
Constant
Current mode /
Constant
Voltage mode
Floating mode. Batteries are fully charged.
Indicates the AC input.
Indicates the PV input
Indicate input voltage, input frequency, PV voltage, battery voltage and charger
current.
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: Flashing with warning code.
Fault: Lighting with fault code
Indicate output voltage, output frequency, load percent, load in VA, load in Watt and
discharging current.
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery mode and
charging status in line mode.
These two signs indicate the charge priority. SOLAR indicates solar first.
UTILITY indicate utility first. SOLAR blinking indicates solar only;
SOLAR and UTILITY both on indicates combined charging.
Battery voltage
<2V/cell
2 ~ 2.083V/cell
2.083 ~ 2.167V/cell
> 2.167 V/cell
Function Description
LCD Display
4 bars will flash in turns.
Bottom bar will be on and the other three
bars will flash in turns.
Bottom two bars will be on and the other
two bars will flash in turns.
Bottom three bars will be on and the top
bar will flash.
4 bars will be on.
